Bed mattress machine, coco fiber mattress knitting machine, reed mattress making machine
- Qingdao / Shanghai / Guangzhou or as your requirement port
- T/T Credit Card
You May Like
-
hard Reed plate board weaving machine, reed mat knitting machine
-
Automatic Reed straw mattress knitting machine | Reed coco fiber mattress machine
-
Superplastic nylon cotton rope making machine , plastic rope machine price
-
Agriculture twine nylon rope making machines / rope and net machine
-
Stranding straw coconut long fiber plastic rope making machine
-
Fiber cotton rope making machine , PP rope making machine for sale
Product Details
| Brand Name | YZ | Place of Origin | Henan, China | |
| Certification | CE ISO | |||
| Warranty | 1 Year | Condition | New | |
| Voltage | 380V | Max Sewing Thickness | 80mm | |
| Max Sewing Speed | 18-20 times per minute | Moving Style | Frame Moved | |
| Number of Head | Single Head |
Product Description
Bed mattress machine, coco fiber mattress knitting machine, reed mattress making machine
Brief introduction of Bed mattress machine, coco fiber mattress knitting machine, reed mattress making machine
Reed rat knitting machine is a new type of building material and agricultural machine, mainly
applied to reed matand mattress. The machine consists of the five parts of knitting device,
output mechanism, cutting device, feed system and power supply system etc.
Reed mat made by the machine is smooth and clean, pleasant and long lasting. Of adjustable
thickness from 3 to12 cm, width from 1 to 1.5 m and free length. Suitable for house
construction, dam protection and cattle box setting up etc. Of the characteristics of heat
preservation, thermal insulation, large intensity and convenient construction etc.
It has substituted reed matting originally applied in North China.
Technical Parameters of Bed mattress machine, coco fiber mattress knitting machine, reed mattress making machine
Item | 1m | 1.5m | 2.0m | ||
External dimension | Total length | 12m | 12m | 12m | |
| Total width | 2.05m | 2.55m | 3.05m | |
| Total height | 1.36m | 1.36m | 1.36m | |
Total weight | 3000kg | 3800kg | 4600kg | ||
Power configuration | Host machine | 2.2kw | 2.2kw | 2.2kw | |
| Cutting | 1.5kw | 1.5kw | 1.5kw | |
| Winding | 0.75kw | 0.75kw | 0.75kw | |
Feeding frequency | 18 - 20 times / min | 16 - 18 times / min | 16- 18 times / min | ||
Interval between lines | Adjustable within 100mm | Adjustable within 100mm | Adjustable within 100mm | ||
Needle gauge | 30mm | 30mm | 30mm | ||
Parameters of reed mat | Width | 980m | 1480m | 1980m | |
| Thickness | 20-80mm | 20-80mm | 20-80mm | |

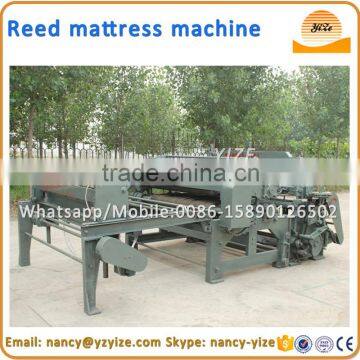

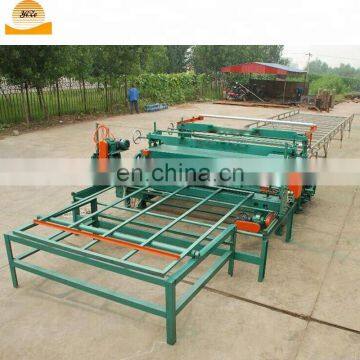

Deatils pictures of Bed mattress machine, coco fiber mattress knitting machine, reed mattress making machine
Service before sale
1, 24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp,
Skype ,Viber ,QQ , TradeManager )
2,Professionally and patiently introduction,details pictures and working video to show machine
Service on sale :
1,Test every machine and inspect the machine seriously .
2,Send the machine picture which you order , then packing it with standard export wooden
box after you confirm the machine is ok .
3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival
time. Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic
to the warehouse which you request . We will tell you the tracking number after delivery.
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical
support,maintain and install video to help you solve the problem, or dispatch worker to your
factory.
Questions/Answer |
1,What is the voltage/phase for this machine ? |
220V 50Hz/single phase ,380V 50Hz/three phase , 110V 60Hz/single phase also can made as the clients’ need |
2,What is the Mode of transportation ? |
LCL and FCL by ship ,By Express (DHL,TNT, Fedex etc) ,By air |
3,How long can we get the goods? |
we usually delivery in 3-5 working days, we will inform you shipping time based on your seaport. |
4,How long is the guarantee? |
we promise guarantee as one year for non-human damage factor. |
5,How should I do if meet some trouble while using? |
we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory. |
6,What about Payment term? |
T/T(Telegraphic Transfer ) --30% as prepayment by T/T, after seen the copy of the B/L sent by fax, the balance of 70% should be effected . Western Union ,L/C ,Trade Assurance,Etc. |
7,What’s your MOQ |
1 set |
8, How can i contact with you ? |
You can send inquiry to me . Aslo can contact with me by Cellphone/Wechat / Whatsapp /Viber:0086-15890126501 |
Zhengzhou Yize Machinery CO.,Ltd’s factory was built in 2008, its exporting company was
assessed gold supplier in 2015 by alibaba. It is specialized in the production of Knitting and Textile machinery,
We will supply 100% QC inspection before shipment and 100% guaranteed after sales service.
Top quality machinery is waiting for your choose.
