Factory French Fries Making Equipment Potato Flakes Processing Machine Small Scale Potato Chips Production Line

Introduction of the Potato Chips Production Line:

Frozen potato chips production line can produce both French fries and potato chips. This production line is multifunctional with unique effectiveness and remarkable efficiency. It is designed according to the feedback of customers. And also we have different capacity models for you: 100Kg/h, 200Kg/h, 300Kg/h, 500Kg/h, 800Kg/h, 1000Kg/h,...

The final frozen French fries from this line is half-fried in order to keep a long life, and easy for store, transfer and further processing. The French fries are a kind of very popular snack food sold in the supermarket.

The Function of the Potato Chips Production Line
1, fried potato chips, French fries production line processing: raw material selection → cleaning peeling → lifting feed → slicing (strip) → rinsing → dewatering → frying → removing oil → mixing seasoning → conveying packaging
The production line machine can be processing fried frozen french fries.
2, This set of equipment materials for high-quality 304 stainless steel, high output, labor, equipment, free on-site installation, and commissioning.
3. This equipment is fully automatic equipment, skilled, save a lot of operation time.

Machine Data

Usually the Small Scale Potato Chips Production Line is 220v, 50hz, single phase, or 380v, 50hz, 3 phase. But it Can be Customized if you need.

350-400kg/h AUTOMATIC FROZEN POTATO CHIPS LINE PARAMETER

1. The land needed to install the production line is 200 square meters( do not include the freezing part).
2. The length of the entire production line is 45 meters( do not include the freezing part)
3. Water consumption: 0.3 cubic meters per hour.
4. Labor needed:3-4( one people work at the beginning of the production line to feed potatoes into the elevator, another two people work at the two choosing machines to choose the unqualified potatoes, and the packing machine need one people to collect the final packed bags).
5. Electric consumption is 155Kw.h(do not include the freezing part)
6. Oil consumption is 8 liters per hour(any kind of cooking oil is available, such as sunflower oil, corn oil, bean oil, peanut oil, rapeseed oil, etc.).

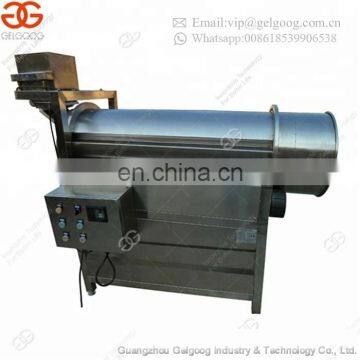

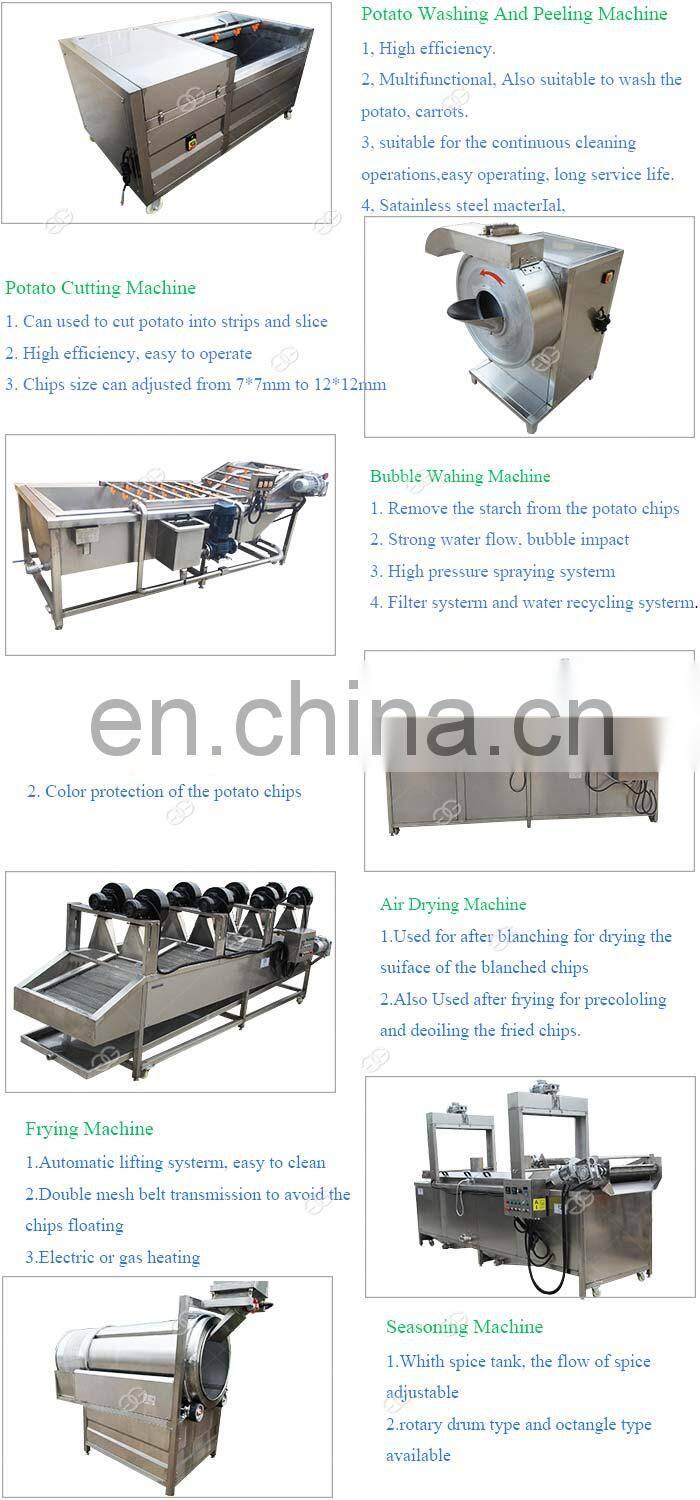

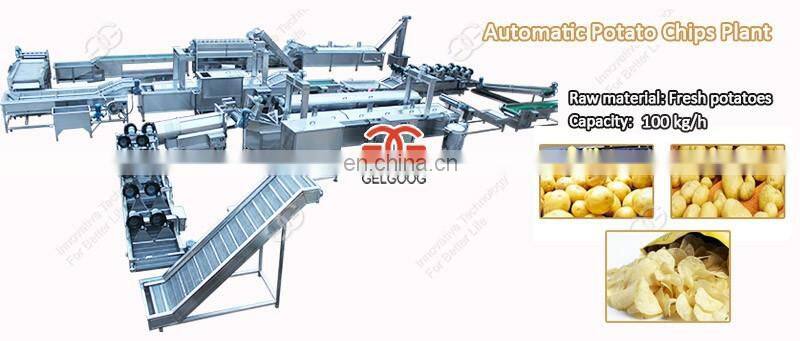

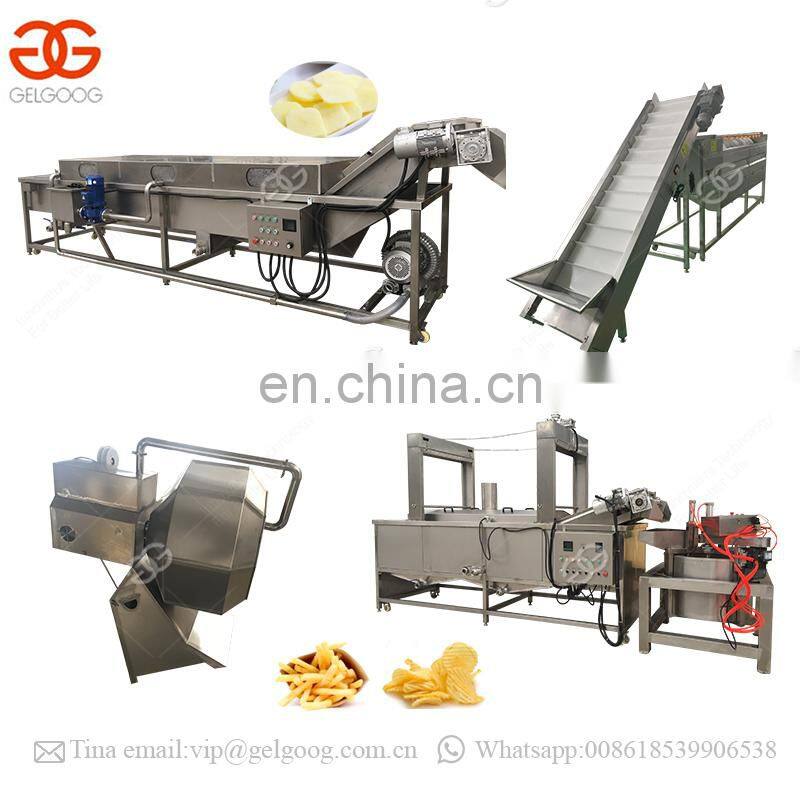

 More Picture of the Potato Chips Production Line:
