This is 1000L brewing system configuration for your reference.
Items | Equipment | Spec. | Qty. |
Brewhouse system | Malt milling machine | 300kg/h | 1 |
Mash/Lauter tun | 1000L | 1 | |
Brew kettle/whirlpool tank | 1000L | 1 | |
Hot liquor tank | 1300L | 1 | |
Plate heat exchanger | 12m² | 1 | |
Wort/hot liquor pump | 3t/h | 1 | |
Sanitary piping system | ɸ32 | 1 | |
Working platform | 1 | ||
Fermentation system | Fermentation tank | 1000L | 6 |
Yeast adding tank | 30L | 1 | |
Cooling system | Glycol water tank | 2000L | 1 |
Glycol chiller | 5HP | 2 | |
Glycol water pump | 3t/h | 1 | |
CIP system | Alkali tank&sterilization tank | 100L | 1 |
CIP pump | 3t/h | 1 | |
Control system | PID control cabinet | 1 |

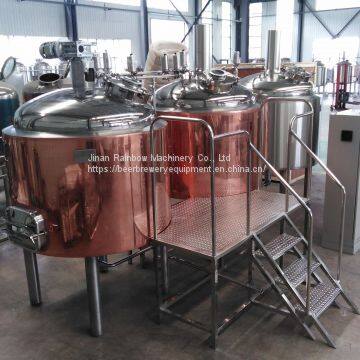

Brewhouse System
-Dome top and cone bottom;bottom cone 160 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6 µm without dead corner
-Heating method:Steam/gas direct fire/electricity heating
-Side manway for spent grains
-Steam jacket:Both on bottom and side,thickness:3.0mm
-Easy-clean and detachable sparging arm
-Easy-clean and detachable false bottom
Fermentation System
-Dome top and cone bottom;bottom cone 60 degree
-Interior Shell:SUS304,thickness:3.0mm
-Exterior Shell: SUS304,thickness:2.0mm
-Insulation:Polyurethane, thickness:100mm
-100%TIG welding with pure argon gas shield
-Interior Fish:Overall polishing to 0.4~0.6µm without dead corner
-Cooling jacket:both on cone and cylinder parts
-Cooling media: glycol water
-Test pressure:0.3Mpa,Working pressure:0.2Mpa
-Rotating racking arm on cone with butterfly valve
-Thermowell with high accuracy temperature sensor:PT100
-3/4 Legs with height adjustable pad
