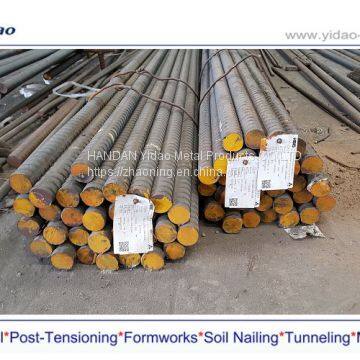

Help CenterHOT! PSB830 Post Tension Thread Reinforcing Bar Underground Rock Bolt/anchor Bar High Tensile Steel Screw Thread Steel Bar
Related Products
-
Prestressing Tendons Thread Steel Bar /Post Tensioning Bar for Geotechnical Engineering 32mm Psb830US$ 650 - 900MOQ: 1 Ton -
PSB830 M25 High Tensil Thread Bar/ Post Tensioning Bar / High Strength Thread Steel Bar/ RebarUS$ 650 - 900MOQ: 1 Ton
-
Hot Rolled,ribbed-left Hand Thread Bar/high Tensil Steel Bar/grade 150US$ 650 - 900MOQ: 1 Ton
-
Grade 150,PSB930 HOT Rolled Left Thread Bar,tie Rods,ribbed Steel BarUS$ 650 - 900MOQ: 1 Ton
-
Hot Rolled,ribbed-left Hand Thread Bar/high Tensil Steel Bar 500/550 φ12-φ50mmUS$ 650 - 900MOQ: 1 Ton
YIDAO METAL PRODUCTS
YIDAO METAL PRODUCTS,Which is a leading manufacturer in china.
The main products we deal in are Thread Bar(tension bars/high strength thread bar) and Thread bar Accessories.
Such as Hex nut,bolt,Domed nut,Anchor bolt,Couplers,bolt coupler,Spring bar,Bearing plate,Flate washer,etc.
Thread bar Grand：HRB335/HRB500,PSB830/PSB930/PSB1080 (Grade :75/80/150/150FC/120FS) Diameter Range:M20/M25/M32/M36/M40/M50/M63.5
Accessory Diameter Range: 12mm/16mm/20mm/25mm/32mm/36mm/40mm/50mm/63.5mm OR Customized
In application of Construction/Bridge/Concrete reinforcement /Bar systems/Urban railways/High speed way/ Post-Tensioning/Geotechnical/Formworks/Ground Anchors/Soil Nailing/Tunneling/Mining
1. Standard: GB/T 20065-2006 ,ASTM A722
2.Material:40Si2MnV
3.Diameter: 15-63.5mm
4. Length: according to customer's requirements
5.Grade: PSB500,PSB785,PSB830,PSB930,PSB1080,JL540,JL800,ASTM A722 and others.
6. Packing: in bundles
The screw thread steel bars for the prestressing of concrete manufactured by our company is a high tensile alloy steel bar which features a coarse right-hand thread The outline dimensions of the screw thread steel bars for the prestressing of .concrete manufactured by us accord with the regulation for the outline and dimension of screw thread steel bars for the prestressing of concrete provided by Highway LAYOUT Design Institute under the Ministry of Communication
Screw thread steel bars Details
Prestressing screw bar
1. Application: prestressing concrete building construction, such as coal mining roofing, high way, railway...
2. Grade: (yield strength) 500, 555 785, 830 ,930, 1080mpa
(tensile strength) 630, 777, 980, 1030, 1080, 1230mpa.
3. Diameter:15mm,18mm,20mm,32mm,36mm,40mm,50mm,63.5mm,
4. Technology: Hot rolled, Left-handed and dextral
5. Accessories: nut ,coupler, plate, washer
6. Length: Any length you like
7. Coating: galvanized or epoxy coating
8. Delivery condition: New production or goods in stock. based on your requirement.
9. ISO Certificate
Brand Name |
Yidao/OEM |
Original of Place |
Hebei China |
Material |
40SiMnV |
| Size | Φ15 Φ20 Φ25 Φ28 Φ32 Φ36 Φ40 Φ50 Φ63.5 |
Grade |
PSB500 PSB785 PSB830 PSB930 PSB1080 |
Surface |
Plain HDG Expoy |
Packing |
**pcs in bundle,then on pallet |
Payment term |
T/T, L/C |
Market |
South&north Amrica/Europe/East&South east Asia/ Australia and ect. |
Purchasing Notice |
Please lets know the Size, quantity, Material or Grade, surface, If it is special and Non-standard products, please supply the Drawing or Photos or Samples to us |
Prestressing screw bars are rolled externally threaded in large diameter, high strength, high dimensional accuracy of straight bars. The bars can be connected at any cross section though coupling or screwed anchored.
Prestressing screw bars are widely used in large-scale water conservancy projects, industrial and civil construction of continuous beam and large frame structure, roads, railways and middle bridges, nuclear power plants and other projects anchor. It is easy for connection, the anchor is simple, strong adhesion, tension anchor is safe, reliable, easy using, etc., and also saving steel, reducing component size and weight.
| Steel grade | Yield Strength h Mpa |
Tensile Strength h Mpa |
Elongation at Failure A% |
Uniform elongtion Agt% |
Stress Relaxation |
||
| Original Stress | Relaxation rate after 1000h r/% | ||||||
| PSB785 | ≥785 | ≥980 | ≥7 | ≥3.5 | 0.8R | ≤3 | |
| PSB830 | ≥830 | ≥1030 | ≥6 | ≥3.5 | 0.8R | ≤3 | |
| PSB930 | ≥930 | ≥1080 | ≥6 | ≥3.5 | 0.8R | ≤3 | |
| PSB1080 | ≥1080 | ≥1230 | ≥6 | - | 0.8R | ≤3 | |
| PSB500 | ≥500 | ≥630 | ≥10 | ≥2.5 | - | ≤3 | |
1.Grade: psb830
2. Length: 9m, 12m or as per customers' requirements
3. Application: High-speed Railway, bridge, concrete anchoring system, formwork panels,
industrial facilities, precast-construction, water treatment plants
4. Technology: Hot rolled, left hand
5. Accessories: full hex nut, spherical hex nut, bearing plate, domed nut, anchor bolt,
foundation bolt, couplers, spring bar
6. Coating: galvanized, black or plain
7. Packing: in bundles
8. Delivery: 15-30 days
