Vertical toothpick filling machine/packing machine/toothpick packing machinery

Description of Vertical toothpick filling machine/packing machine/toothpick packing machinery

Multifunctional double rotary table automatic filling machine vibration toothpick is designed for long weighing automatic filling design of a product, which after a long time and improved test, feeding with double rotary vibration. Taper weighing hopper weighing. Different taper mold out of material. Successively uniform, fast and slow feeding, infrared induction automatic discharge filling, more effective to promote quantitative filling accuracy.

Main features of Vertical toothpick filling machine/packing machine/toothpick packing machinery

1.The computer uses the microcomputer intelligent control to make the distribution more accurate and fast. The process of packing is fully automated.

2.all the parts of the contact articles are made of stainless steel, and they do not pollute the articles.

3.The machine has double damping structure, which makes the operation smooth and the noise is low.

4. small, and light weight

5. minimal power can save energy

6. skew throwing material will not squeeze the damaged material, especially for the separation of fragile materials

Parameters of Vertical toothpick filling machine/packing machine/toothpick packing machinery

Use Instructions of Vertical toothpick filling machine/packing machine/toothpick packing machinery

1. switch on the power supply, open the side of the machine side of the switch, the computer control panel instrument indicator light is all bright, the machine emits "drop..." The machine will automatically zero into the standby state.

2. The toothpick that needs to be filled in is poured into the bucket. Increase or decrease the key on the control panel to set the filling weight you need.

3. Set the speed to select the speed you need on the control panel with the 'fast, medium, slow'.

4. After the speed selection, the starting key on the panel will be controlled, the machine enters the full automatic state, and the filling ginseng is automatically and continuously quantified.

5. In the process of packing, when the toothpick has been completed or needs to be suspended, the stop button can be pressed to stop the machine from waiting for the machine.

6. The quantity package will be displayed in the "quantity" column. If you need to clear the display value, please push switch the machine again

7. When cleaning toothpicks inside the machine, press the down key to clean up the first batch. If you press and hold the key for 5 seconds, do not let go for a long time to clear the material, so the machine will enter the long time discharging state.

8. After the toothpick packing can be finished, please close the power switch when you do not use it for a long time.

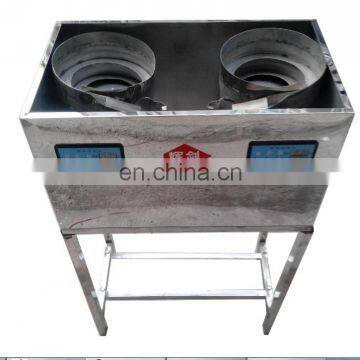

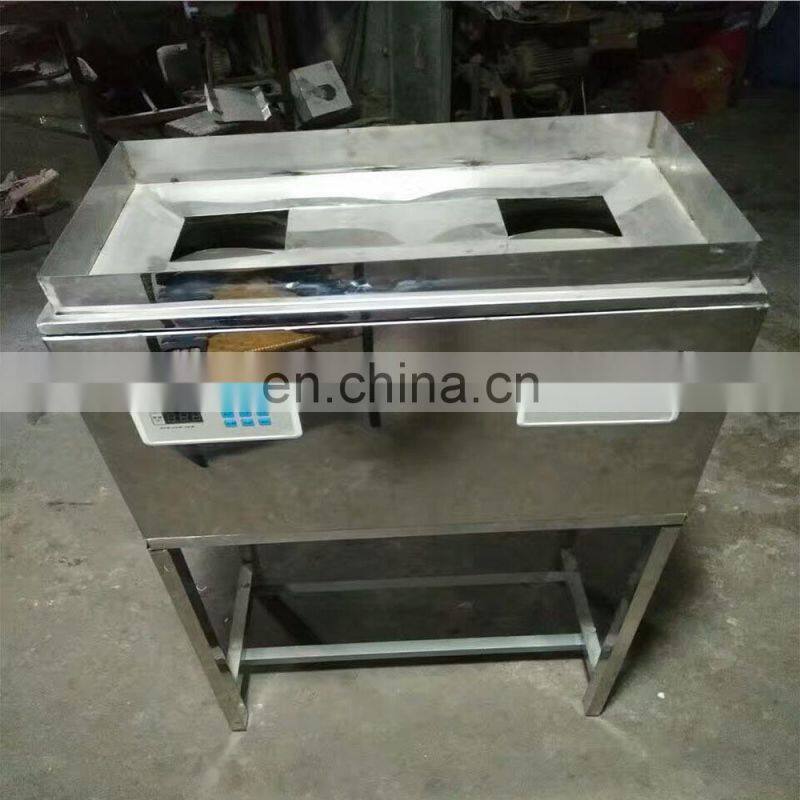

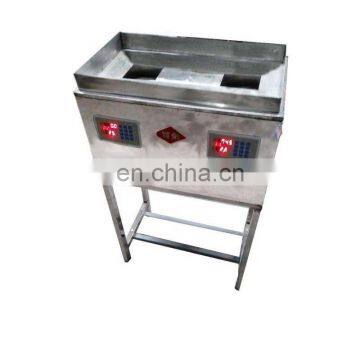

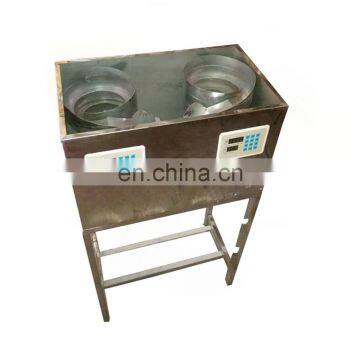

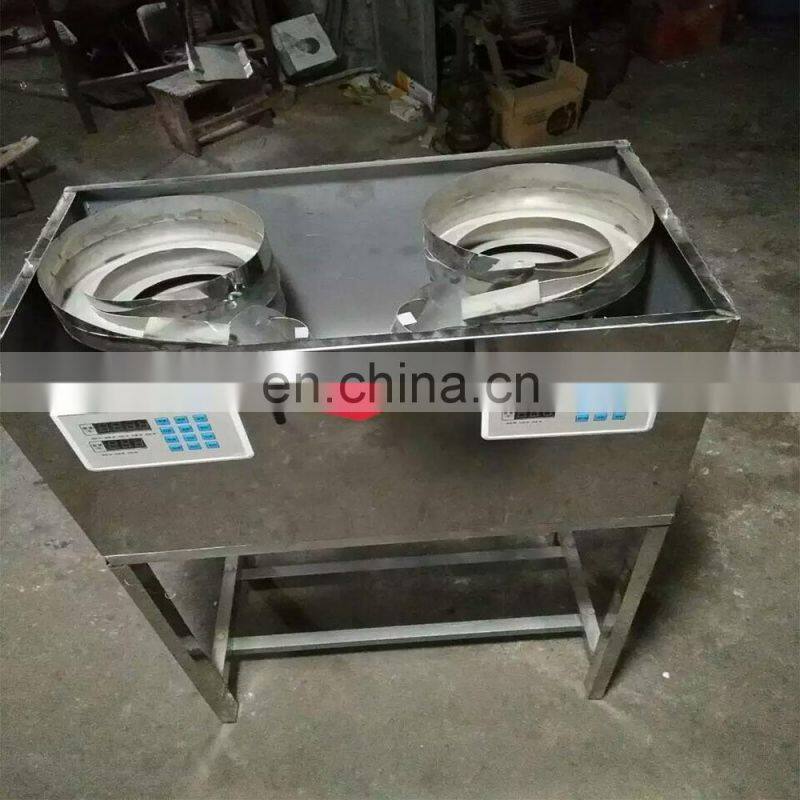

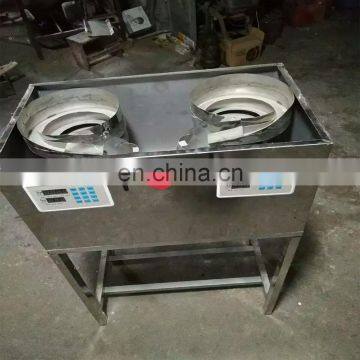

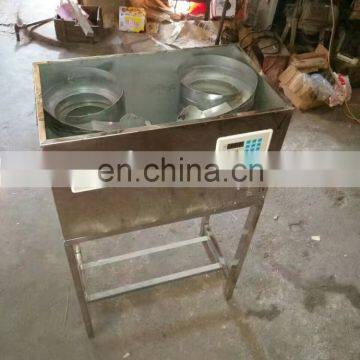

Pictures of Vertical toothpick filling machine/packing machine/toothpick packing machinery

1.Delivery time: Within 5-7 days after receiving clients' payment
2.Payment Terms :

3.Packing: Wooden box free of fumigation

4.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers

1. Qualtiy Gurantee :1 years guanrantees for each machine
2. Pre-Testing before forwarding :All machines will be pre-tested to make sure it will be received
in good condition
3. Operation Video and instruction :We will provide you operation video and detailed instructions to install and you can make full use of the machine
4. Full Techinical service :Engineer is ready to provide you our full-process tracing
and instruction "

1.Alibaba Assessed Gold Supplier
2.100% Quality control before forwarding
3.Competitive price with best quality and service

1.  Are you manufacturer ?

     Yes we are the manufacturer and welcome to visit our factory

2. Can you change the machine voltage as our request?

     Yes we can change the machine voltage as customers’ request

3. How about your after-sale service?

     Our engineer can go outside to installand train your workers to operate the full machine line.

4. Warranty time of your machine?

     1 years warranty time except for consumable spare parts

5. How about delivery time of your machine?

     Generally  it  needs  10-15  days,for  big  machine  or  producing  line,it  will  be much  longer  but  wthin  our  negotiated  delivery  time

If you have any questions,please feel free to contact wirh me.I am looking forward to working with you.
