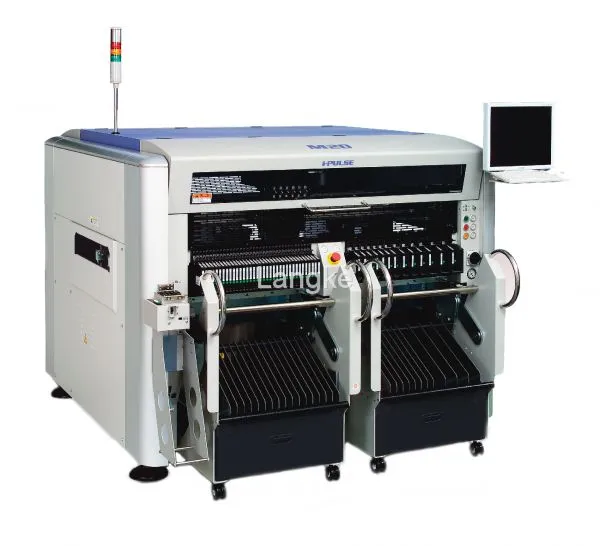

Yamaha iPulse M20 high speed smt pick and place machine
Model |
I-PulseM20 |
Board size(with buffer unused) |
Min. L50 x W30mm to Max. L1,480 x W510mm*1 |
Board size(with input and output buffers used) |
Min. L50 x W30mm to Max. L540 x W510mm |
Board thickness |
0.4 - 4.8mm |
Board flow direction |
Left to right (Std) |
Board transfer speed |
Max 900mm/sec |
Placement speed (4 heads + 1 theta) Opt. Cond. |
0.15sec/CHIP (24,000CPH) |
Placement speed (4 heads + 4 theta) Opt. Cond. |
0.15sec/CHIP (24,000CPH) |
Placement speed (6 heads + 2 theta) Opt. Cond. |
0.12sec/CHIP (30,000CPH)*2 |
Placement speed (4 heads + 1 theta) IPC9850 |
19,000CPH |
Placement speed (4 heads + 4 theta) IPC9850 |
19,000CPH |
Placement speed (6 heads + 2 theta) IPC9850 |
23,000CPH*2 |
Placement accuracy A (?+3?) |
CHIP +/-0.040mm |
Placement accuracy B (?+3?) |
IC +/-0.025mm |
Placement angle |
+/-180 degrees |
Z axis control |
AC servo motor |
Theta axis control |
AC servo motor |
Component height |
Max 30mm*3 (Pre-placed components: max 25mm) |
Applicable components |
0402 to 120x90mm, BGA, CSP, connector, etc. |
Component package |
8 - 56mm tape (F1/F2 Feeders), 8 - 88mm tape (F3 Electric Feeders), stick, tray |
Drawback check |
Vacuum check and vision check |
Screen language |
English, Chinese, Korean, Japanese |
Board positioning |
Board grip unit, front reference, auto conveyor width adjustment |
Component types |
Max 144 types (8mm tape), 36 lanes x 4 |
Transfer height |
900 +/- 20mm |
Machine dimensions, weight |
L1750xD1750xH1420mm, Approx. 1450kg |
Power |
3-phase 200/208/220/240/380/400/416/440V +/-10% |
Max consumption, capacity |
1.1kW, 5.9kVA |
Air pressure, consumption |
0.45Mpa, 50(4 heads) or 75(6 heads) L/min A.N.R. |
