Fiber Cement Siding Board Production Line/Asbestos cement sheet making machine
Raw material: Portland cement/Asbestos Fiber/soften glass fiber without alkali/so on
Type: Medium wave tiles and small wave tiles
Plant Squares:30M*10M-*4M
Features:The tiles have the features such as light weight, fireproofing, dampproff, antisepsis, heat preservation,heat resistance,heat insulation isolation and so on. The machine is easy to operate and only occupy low labor. The raw material is easy to get and workers are easy to train.
Specfication for tiles:
Model | Length(mm) | width(mm) | thickness(mm) | wave Height(mm) | weight(kg) |
Small wave tiles | 1800 | 720 | 5/6 | 14.5 | 13/15 |
Medium wave tiles | 1800 | 740 | 6/6.5 | 33 | 15/16 |
Big wave tiles | 2440 | 1050 | 6/8 | 33 | 30/35 |
Machine list:
Main Equipment | Quantity |
Clean water can | 1 pc |
Recyling water can | 1 pc |
Mixing system | 1 set |
Conveying system | 1 set |
Slurry pump | 2sets |
Net cage | 3sets |
Tile adobe forming machine | 1 set |
Carring tile adobe system | 1 set |
BLV | 1 set |
Power box | 3 sets |
Air compresser | 1pc |
Air stock | 1pc |
Tile Adobe forming part:
Name | Remark | quantity |
Clean water can | They are made of 3.8mm steel. Size:6m*3.2m.Vertical ladder and working table | 1 |
recycling water can | 1 | |

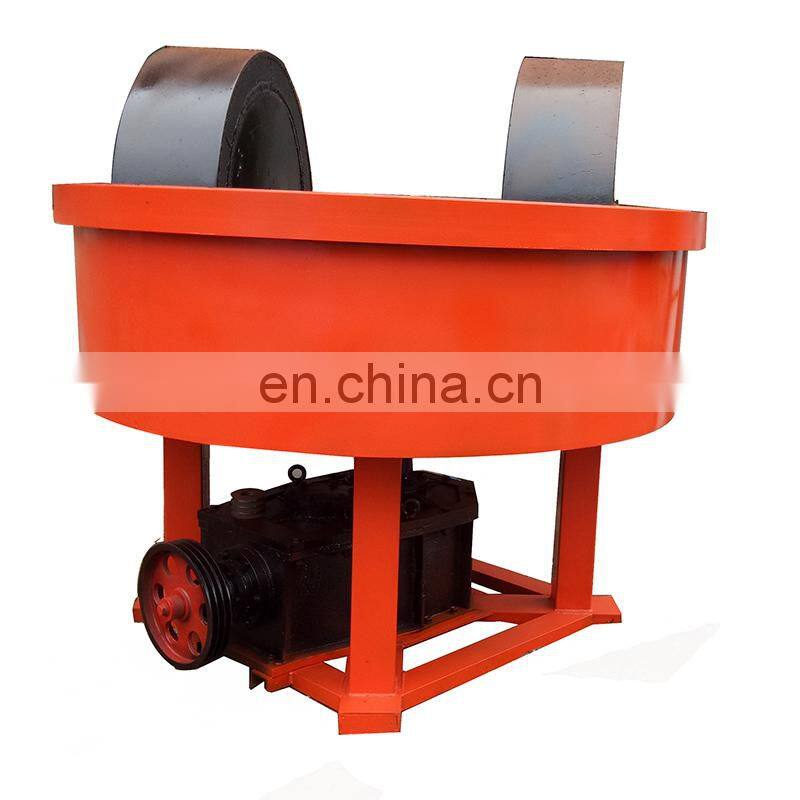

Mixing systm | Rolling mixer and paste maker with 5inch and 6inch water pump. 2 motors with 11kw &1 motor with 5kw | 1 |
Conveying system | Diameter 1.9m Height:2.52m Motor:3kw | 1 |
Slurry pump | 2 | |

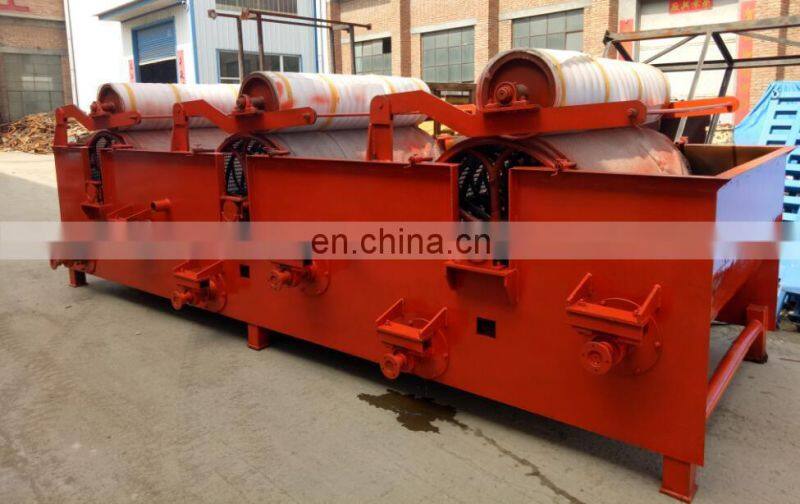

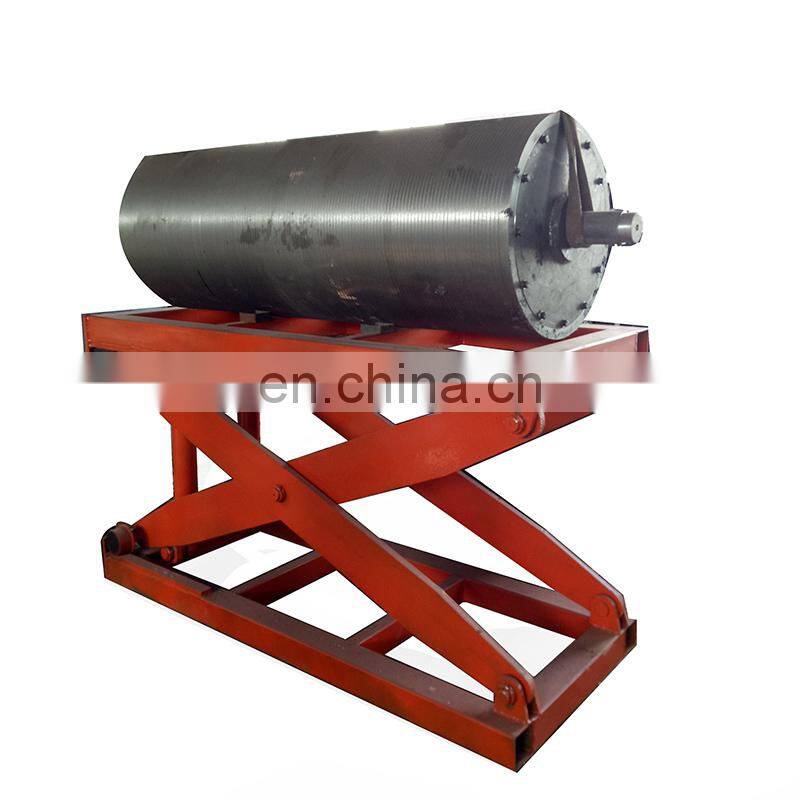

Net cage | Large volume. 6 Motors with 1.5kw and 6grades to drive 6 fans. The net cage is not easy to block material. Easy operation | 4 |

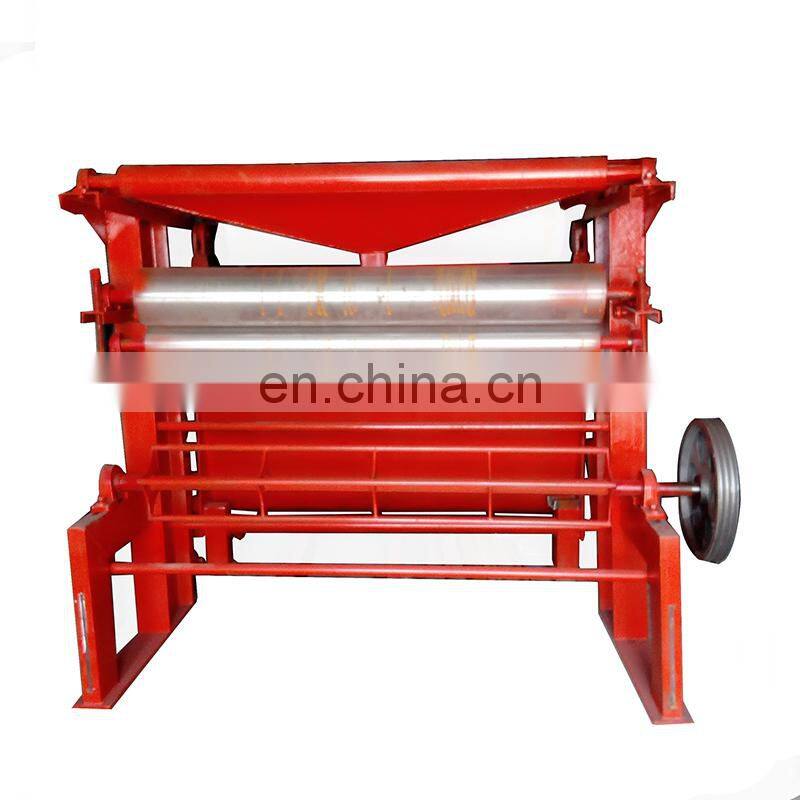

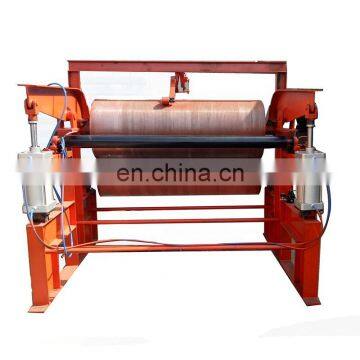

Tile adobe formingmachine | 15Kw motor. Rollers are one iron and one rubber | 1 |
Vacuum asbestos tile forming part:
This Machine is the most advanced asbestos tile making machine in the market after the long time experience in manufacturing and marketing. It can be used to produce asbestos tiles, calcium silicate panel,FC pannel and other decorating plank. The whole machine adopts PLC automatic control system and pneumatic theory. It has the highly automatic and only needs 7 people per 8h. Scientific design,elegant shape and convinent maintenance.
Control system is Mitsu programmable controller FX2N-64MB and Panasonnic transducer VF-8Z, and VFO elements.The whole actions of the machine are fully controlled by PLC. This control system can have the automatic operation,hand-operation,debuging functions.Its program can be set as three tiles or two tiles or one tiles in one mould.At the same time it sets multi-level protection such as over-heat, overcurrent and so on
Forming squar (mm) | 1800x745/2440 x1220 |
Thickness (mm) | 4--8 |
Capacity (pcs/8h) | 2000 |
Power (kw) | 13.9 |
Weight (kg) | 8000 |
Delivery time: Within 15days after receiving clients' payment
Payment Terms:T/T L/C Western Union D/P D/A Escow Paypal

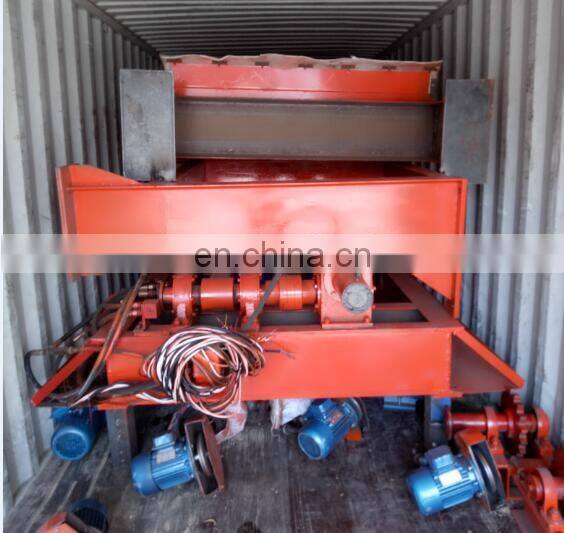

Packing: wooden box free of fumigation for High efficiency hot wind cycle drying oven hot air dryer machine
Quality Guarantee: Our Quality guarantee term is for one year, Malfunctions which are caused by operation mistakenly will be responsible for customers
1 Quality guarantee
2 Pre-Testing before forwarding
3 Operation Video and instruction
4 Full Technical service
1 Manufacturer for Asbestos tile production line
2 Alibaba Assessed Gold Supplier
3 100% Quality control before forwarding
4 Competitive price withe best quality and service
1 Are you manufacturer ?
Yes we are the manufacturer and welcome to visit our factory
2 Can you change the machine voltage as our request?
Yes we can change the machine voltage as customers’ request
3 How about your after-sale service?
Our engineer can go outside to install and train your workers to operate the full machine line.
4 Warranty time of your machine?
1 years warranty time except for consumable spare parts
5 How about delivery time of your machine?
Generally it needs 5-7 days, for big machines or producing line, it will be much longer but within our negotiated delivery time
