Self-propelled Gasoline Type Tea Picking Machine

Description of machine

A plant harvesting machine for collecting fresh, tender tea leaves from the top of a tea tree.

According to different picking methods, there are two types of selective tea picking machine and non-selective tea picking machine.

Selective tea picking machine has the type of break type and friction type.

The former USES the principle of bending and breaking to pick fresh tea leaves and keep the thick old branches.

The latter is to use a pair of elastic pick finger to clip tea, and by the static friction between pick finger and tea, pick new leaves and retain the old leaves and buds.

Because of low production efficiency and high requirements on operating conditions of tea garden, selective tea picking machine has not been widely popularized.

The non - selective tea picking machine is also called shear tea picking machine.

Because of its simple structure and easy to use, it has been popularized.

Parameters of machine

Model:WT-344

Engine type: WT34F

Optional: 1e40f-5 gasoline, four-stroke gasoline

Engine type: air - cooled single cylinder two stroke

Engine capacity: 25.4CC

Engine power: 0.75kw/6500r/min

Carburetor form: diaphragm type

Fuel tank capacity: 700ml

Fuel oil ratio: 25:1

Width: 600mm

Net weight: 8.2kg

Reduction ratio: 4.14

Transmission: centrifugal friction clutch

The amount of air at the outlet and corresponding speed: 30m/s(6500rpm)Clutch engagement speed: 2800-3200rpm

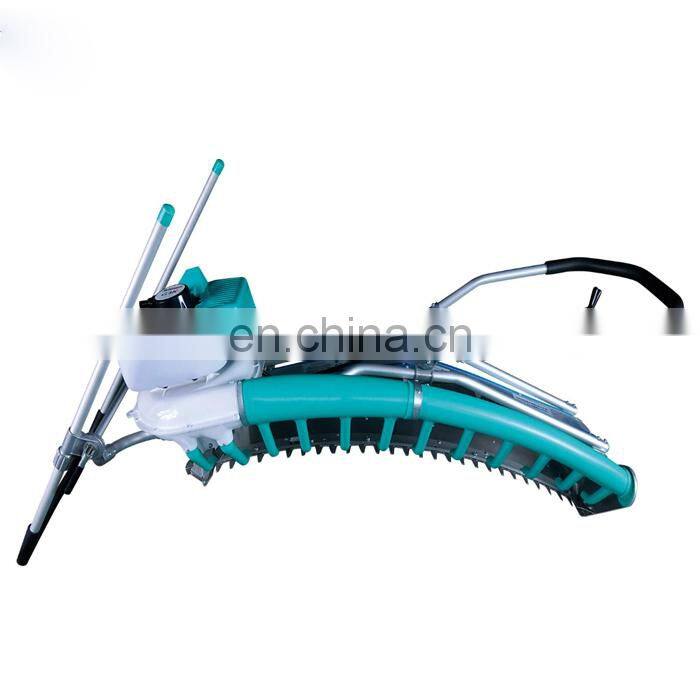

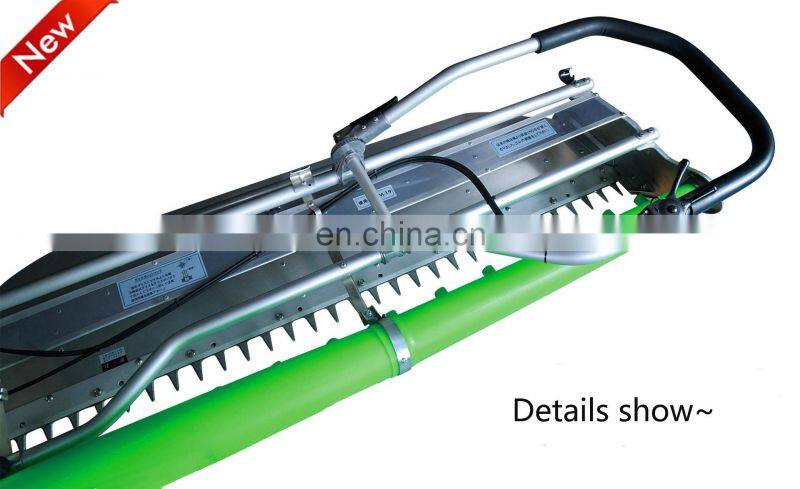

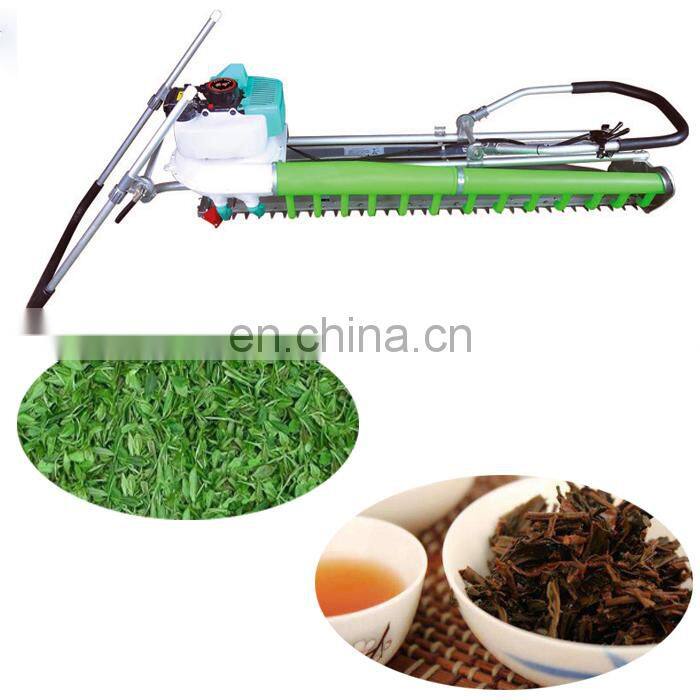

Pictures of machine

1.Delivery time: Within 5-7 days after receiving clients' payment
2.Payment Terms :

3.Packing: Wooden box free of fumigation

4.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers

1. Qualtiy Gurantee :1 years guanrantees for each machine
2. Pre-Testing before forwarding :All machines will be pre-tested to make sure it will be received
in good condition
3. Operation Video and instruction :We will provide you operation video and detailed instructions to install and you can make full use of the machine
4. Full Techinical service :Engineer is ready to provide you our full-process tracing
and instruction "

1.Alibaba Assessed Gold Supplier
2.100% Quality control before forwarding
3.Competitive price with best quality and service

1.  Are you manufacturer ?

     Yes we are the manufacturer and welcome to visit our factory

2. Can you change the machine voltage as our request?

     Yes we can change the machine voltage as customers’ request

3. How about your after-sale service?

     Our engineer can go outside to installand train your workers to operate the full machine line.

4. Warranty time of your machine?

     1 years warranty time except for consumable spare parts

5. How about delivery time of your machine?

     Generally  it  needs  10-15  days,for  big  machine  or  producing  line,it  will  be much  longer  but  wthin  our  negotiated  delivery  time
