Product Details
Brand Name: | sunrise | Place of Origin: | Henan, China | Type: | Cold & Hot Pressing Machine |
Certification: | CE ISO | Weight: | 1200kg | ||
Dimension(L*W*H): | 2000x1400x1850mm | Voltage: | 220V/380V | Condition: | New |
Automatic Grade: | Automatic |
Product Description
1. introduction of cocoa butter press machine
this is a kind of automatic hydraulic cocoa butter press machine with big capacity, high pressure, large volume, can be both cold press and hot press and other features.
it can press many kinds of oil crops, such as sesame, cocoa beans, walnut, almonds, cashew nuts, tea seed and other high degress oil crops with high oil yielding and pure oil quality. saving cost and saving labor
2. please check the technical data of cocoa butter press machine as following:
Type | DYZ-230 | DYZ-410 | DYZ-460 | DYZ-460-II | DYZ-460-III |
Unit working pressure | 45MPa | 45MPa | 40MPa | 40MPa | 40MPa |
Working thrust | 120t | 120t | 150t | 210t | 150t |
Squeeze tube diameter | 230mm | 410mm | 460mm | 460mm | 460mm |
Squeeze height | 500mm | 500mm | 500mm | 550mm | 700mm |
Pressed cylinder capacity | 10 kg | 80 kg | 100kg | 100kg | 150kg |
Average productivity | 200kg/8h | 700kg/8h | 900kg/8h | 900kg/8h | 1200kg/8h |
Heat power | 4kw | 4kw | 4kw | 4kw | 4kw |
weight | 750kg | 1500kg | 1800kg | 1900kg | 2300kg |
3. final cocoa butter from our client using our cocoa butter press

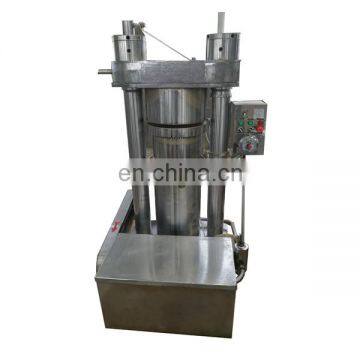

4. Please check the pictures of our cocoa butter press machine as following:
5. check the stainless steel hydraulic press
please check the stainless steel drum of hydralic press as following:
please check the package of our hydraulic press as following:
We also have shipping company which can help you delivery the machine to the place you want.
Package: our machine are all with plywood case packing, one set machine with one case.
Payment: T/T, Westeran Union, L/C, Paypal, Secure payment of Alibaba.
Delivery time: We will deliver within 7-12 working days after receiving front payment.
Warranty period: All our machine is with one year warranty. We will provide free parts and techcical support for operation. After one year, we will provide spare parts with manufacturing cost.
After-sales Service:
1. Before deliver the machine, we will test and adjust everything properly.
2. Once all is done, we will make detailed picture for customer to confirm for delivery.
3. Operation video & working manule will be provided with the machine, so that clients can use our machine without difficulty.
4. Any problems occur while using, we will provide profession advice and technical support ASAP.
5. Spare parts of the machien is provide whole serving life with resonable price.
Henan Sunrise Machinery Co., limited has been in cocoa processing line for many years, with the advantage of high quality and reasonable price, safe packing and fast delivery, advanced testing equipments as well as perfect follow up service. Our machines have enjoyed great popularity worldwide market, sepcially in Asia and Africa countries such as India, Malaysia, South Africa, Tanzania, etc.
Q:What is the guarantee time ? if machines broken or lost during sea freight who will take responsible ?
A:Guarantee time is for one year from Machine arrive customer sea port. for every export machine we buy insurance for it . if machine lost or broken during sea freight . we take responsible for it .
Q: During Guarantee time , if machine broken by machine design ,what should we do?
A:during guarantee time , if machine broken by machine design fault , we talk all responsible , for machine broken part free charge send to you , if after change broken part machine can not work , we would send new machine to you for exchange.
Q: Which kind documents your company can provided?
A:after ship depart from China port ,we can get documents from Shipping company such as : bill or lading , insurance documents.packing list , commercial invoice . if you need , we also can apply CO ,FORM F, FORM E etc.
Q:After guarantee time , if we need spare parts , can you provided it ?
A:we can provide for the machine spare part.
Q:Which kind of package you will use ?
A:For export , we usually use plywood box. which meet export standard.
If you have any question about our hydralic press machine, please contact me no hesitate!
