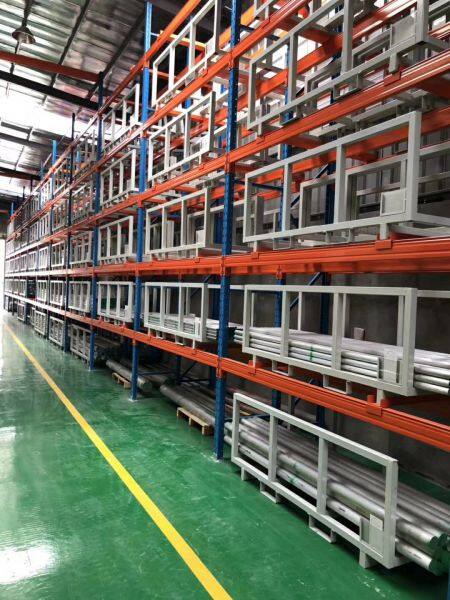

Anti-rust Storage Racking System Pallet Racking System
Selective Pallet Racking is by far the most common type of warehouse storage rack and is what is typically thought of when the need arises for industrial type storage racking. All selective rack is made from component pieces that are usually priced & purchased separately.
Pallet rack shelving Beam Post Distributed Loading Chart
| UPRIGHT LOADING TABLE | ||||||||||
| 80x60x1.8 8500KG/BAY | ||||||||||
| 80x60x2.0 9400KG/BAY | 100x70x1.8 11800KG/BAY | |||||||||
| 90x70x1.8 10000KG/BAY | 100x70x2.0 13500KG/BAY | |||||||||
| 90x70x2.0 11800KG/BAY | 100x70x2.3 15000KG/BAY | |||||||||
| 90x70x2.5 15000KG/BAY | 100x70x2.5 16300KG/BAY | |||||||||
BOX BEAM LOADING TABLE
| ||||||||||
| Beam length (mm) | 80*50*1.5 | 100*40*1.5 | 100*50*1.5 | 110*50*1.5 | 120*40*1.5 | 120*50*1.5 | 140*40*1.4 | 140*50*1.5 | 160*40*1.5 | 160*50*1.5 |
| 1500 | 4286 | |||||||||
| 1800 | 2977 | |||||||||
| 1900 | 2672 | 3809 | 4535 | |||||||
| 2200 | 1993 | 2841 | 3382 | 4219 | ||||||
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | 4665 | ||||
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | ||||
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | 5160 | ||
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | ||
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3716 | 4425 | 5068 | 6033 |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | 4105 | 4887 |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 2985 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2508 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2251 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2032 | 2419 |
Features
1.warehouse pallet racking system is a strong and durable shelving system that is smart and clean in appearance, making it ideal for a wide variety of applications high density storage of small parts, heavy items, large and bulky items, and odd shaped or awkward items;
2.Pallet rack is widely used in many fields;
3.Warehouse pallet racking has special design, proper structure, and is easy for installing and dismantling and the load capacity is for 1000-4000kgs per layer.
4.Warehouse pallet rack is widely used in supermarket, storage, and other enterprises.Our warehouse pallet rack is in the level of international standard, the height could be adjusted easily by 75mm distance.
5. The cargo with the pallets can be located, accessed and moved individually by the forklift truck
6. Easy relocation or addition of load supporting beams;
7. Compatible with most types of handling equipment and building structures;
8. Made of high grade steel;
