Wheat Pneumatic vacuum Conveyor
Introduction of wheat Pneumatic vacuum Conveyor

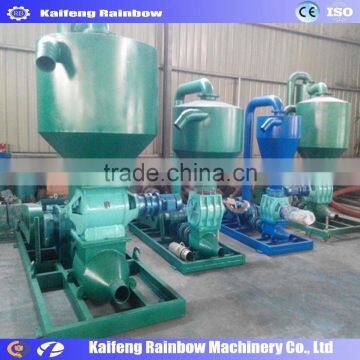

RB series Rice Pneumatic vacuum Conveyor can be used to convey granular materials horizontally, slantly and vertically such as rice, wheat, corn, soybean, sorghum, barley malt, plastic pellets, chips, resins and other granular.This kind of Rice Pneumatic vacuum Conveyor is an advanced material handling equipment. It is composed of high pressure blower, air flow control valve, separator tube, air locker, connecting pipe, suction nozzle and conveying pipelines and other components. It can convey by positive pressure or suction by under vacuum circumstance. It can also conveyed by both positive and vacuum pressure at the same time after a simple combination.
Rice Pneumatic vacuum Conveyor is widely used in handling materials in bulk loading, bulk conveying, bulk unloading, silo to silo, stack to stack in grain, farm, railway stations, docks, grain processing and brewing industries. When using this equipment to convey grains, RB grains have been selected and dehydrated.
Working principle of Wheat Pneumatic vacuum Conveyor
The working principle of pneumatic vacuum rice seed conveyor is negative pressure air stream generated by the high pressure blower though the suction nozzle, suctioning the materials into the hose tube, then materials through the separation tube, air and material separated, material fell off into the air locker downward, then materials will be conveyed to the required place by positive pressure air flow. The air separated will go into the blower through the separator tube (RB-20 and RB-30 through the dust collector).
Main features of Wheat Pneumatic Vacuum Conveyor
Flexible application.
Advanced technology and cost saving.
Safe and simple installation and commissioning.
Simple structure and maintenance.
High efficiency and energy-saving.
Easy operation.
Model |
RB-5 |
RB-10 |
RB-15 |
RB-20 |
RB-25 |
RB-30 |
RB-50 |
RB-70 |
RB-110 |
RB-130 |
|
Fan power (kw) |
7.5 |
11 |
15 |
22 |
25 |
37 |
45 |
55 |
75 |
110 |
|
Air-lock valve (kw) |
0.75 |
0.75 |
1.1 |
1.1 |
1.5 |
1.5 |
1.5 |
1.5 |
3 |
3 |
|
Power (kw) |
8.25 |
11.75 |
16.1 |
23.1 |
26.5 |
38.5 |
46.5 |
56.5 |
78 |
113 |
|
Max horizontal distance (m) |
20 |
30 |
30 |
40 |
40 |
60 |
80 |
80 |
100 |
100 |
|
Conveying distance (m) |
5 |
8 |
10 |
10 |
15 |
20 |
20 |
30 |
30 |
35 |
|
Lift head (m) |
8.5 |
10 |
20 |
30 |
35 |
40 |
40 |
50 |
50 |
60 |
|
Capacity (t) |
5 |
10 |
15 |
20 |
25 |
30 |
50 |
70 |
110 |
130 |
|
Feeding dia (mm) |
124 |
150 |
150 |
160 |
160 |
160 |
200 |
219 |
273 |
273 |
|
Discharging dia (mm) |
100 |
124 |
150 |
160 |
160 |
160 |
200 |
219 |
273 |
273 |
|
Dimension (cm) |
178x100x150 |
178x106x155 |
208x122x180 |
208x160x180 |
228x131x275 |
240x160x275 |
250x175x310 |
280*210*330 |
291*220*340 |
291*220*350 |
|
Weight (kg) |
400 |
465 |
530 |
620 |
795 |
920 |
1420 |
1600 |
2200 |
3560 |
KAIFENG RAINBOW MACHINERY Co., Ltd is specialized in production of machines used in food, feed, farm and tech field. We have our own professional research and development department, and specialized production base.
Relying on the strong industrial and technological superiority and excellent transportation advantage, our company has had strategic development.
High quality is our obligation. Great service is our mission.We warmly welcome clients around the whole world to visit our plant and our Office!
About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, unually it needs wrapped with plasitc firstly, then loaded in container.
we can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
