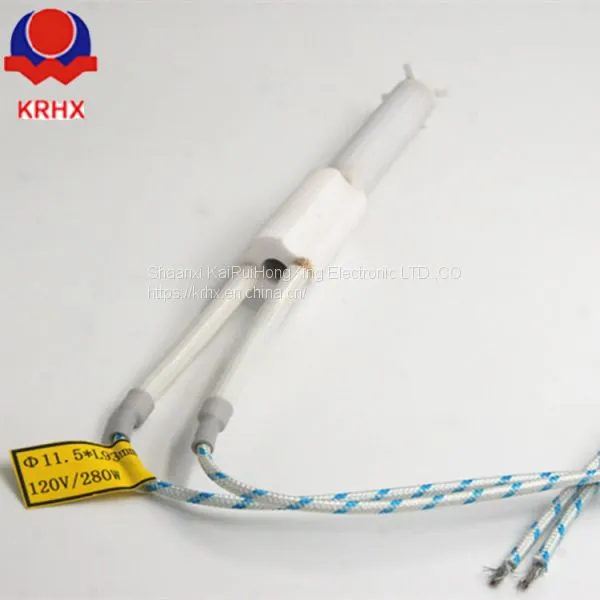

Help Center120v 280w Ceramic Pellet Igniter for Pellet Boiler/stoves
Related Products
-
96%Aluminum MCH Ceramic Heater ElementUS$ 1 - 7.9MOQ: 1000 Pieces -
96%Aluminum MCH Ceramic Heater ElementUS$ 1 - 7.9MOQ: 1000 Pieces
-
96%Aluminum MCH Ceramic Heater ElementUS$ 1 - 7.9MOQ: 1000 Pieces
-
96%Aluminum MCH Ceramic Heater ElementUS$ 1 - 7.9MOQ: 1000 Pieces
-
96%Aluminum MCH Ceramic Heater ElementUS$ 1 - 7.9MOQ: 1000 Pieces
Place of Origin:Shaanxi, China (Mainland) Model Number: 11.5*6.5*93mm
Application: Wood Pellet Grill Material:Alumina
Power:280w Voltage(V):120v
Warranty:3year Advantage:Energy-Saving,Superior Thermal
Working time:10000(h) Flange:Brass or Ceramic
Temperature:900-1000℃ Time to ignition:50 seconds
Wire Length:Customized
MCH is metal ceramics heater the "make, meaning is metal ceramic heating element. MCH refers to the design of metallic tungsten or molybdenum manganese with high melting point metal heating resistance Slurry required printing to be printed in 92 ~ 96% of alumina casting ceramic tiles, after hot-pressing laminated, then protect the atmosphere at about 1600 ℃, ceramics and metals jointly sintered and made of ceramic tiles, with corrosion resistance, high temperature resistance, long life, efficient energy saving, uniform temperature, good thermal conductivity, the speed of Heat Compensation is fast and so on, and it does not contain lead, cadmium, mercury, chromium, more, more, etc. matter, comply with environmental requirements such as EU rohs and other environmental protection requirements.
Specifications
* Substrate: White multi-layer alumina ceramics
* Lead: In a ф 0. 5mm of Nickel wire(The length depends on the customer).
* Casing, tape: Teflon, high temperature resistance to high temperature
* Resistance: high temperature materials such as tungsten, etc.
* Product thickness: 0.7 ~ 2.0. Customizable
* Small size, light weight and energy-saving
* Superior thermal properties, Rapid heating, Custom-designed temperature distribution, Excellent insulation
* High reliability: Superior voltage resistance and electrical resistance, No electric noise
* Security is not charged surface, insulation performance is good, can endure the withstand voltage of 4500v / 10s test, no breakdown, leakage current
* No impact current peak;
* Heating up fast;
*Without power attenuation;
* Long service life.
Application
* Wood pellet burner /Wood chips burner /Straw burner /Other biomass burner;
* 3D prinert
* Industrial drying equipment, electric Bonding liquid heater;
* Medical devices and other precise instrument.
