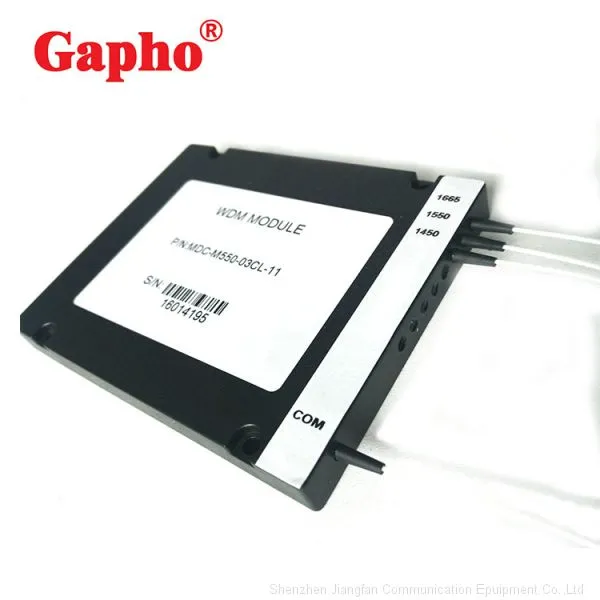

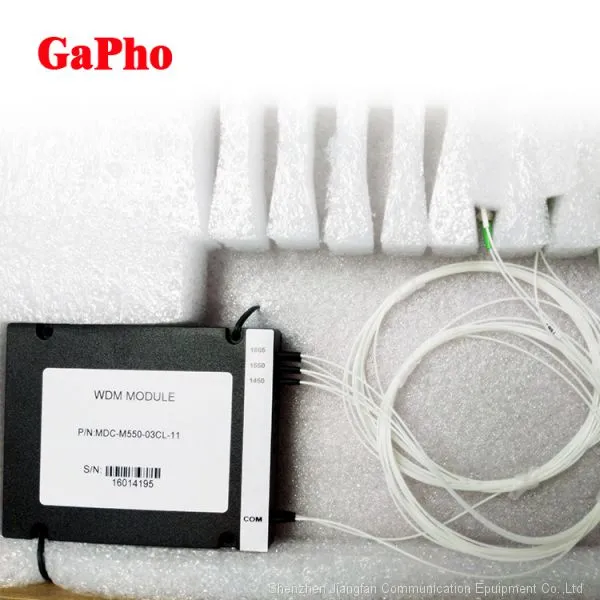

FTTH Optical Equipment Fiber Optic Branching Device
US$ 1 - 40
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Gapho
Place of Origin:
China
Model Number:
FTTH
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
5 days
Related Products
-
Fiber Optic FC Adapter Metal Dust Cap With Chain, Instrument Metal Knob for Equipment Metal Cap End CapUS$ 0.25 - 0.8MOQ: 10 Pieces -
Single Mode Fiber Optic Coupler 1310nm /1550nmUS$ 5.99 - 7.99MOQ: 10 Pieces
-
Factory Direct Supplier Huawei 1x6 Audio Fiber Optical PLC SplitterUS$ 1 - 100MOQ: 2 Pieces
-
Optical Branching DeviceNegotiableMOQ: 1
-
PLC Optical Fiber Branching DeviceNegotiableMOQ: 2000 Pieces
Brand Name
Gapho
Place of Origin
China
Model Number
FTTH
Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel | ||||||||
| Mux | Demux | Mux | Demux | Mux | Demux | ||||||
| Channel Wavelength(nm) | 1270~1610 | ||||||||||
| Center wavelength Accuracy(nm) | ±0.5 | ||||||||||
| Channel Spacing(nm) | 20 | ||||||||||
| Channel Pass band(@-0.5dB bandwidth (nm) | >14 | ||||||||||
| Insertion Loss(dB) | ≤1.4 | ≤2.6 | ≤5.0 | ||||||||
| Channel Uniformity (dB) | ≤0.5 | ≤0.5 | ≤0.5 | ||||||||
| Channel Ripple (dB) | 0.3 | ||||||||||
| Isolation (dB) | Adjacent | N/A | >30 | N/A | >30 | N/A | >30 | ||||
| Non-adjacent | N/A | >40 | N/A | >40 | N/A | >40 | |||||
| Insertion Loss Temperature Sensitivity (dB/℃) | |||||||||||
| Wavelength Temperature Shifting (nm/℃) | |||||||||||
| Polarization Dependent Loss (dB) | |||||||||||
| Polarization Mode Dispersion (PS) | |||||||||||
| Directivity (dB) | >50 | ||||||||||
| Return Loss(dB) | >45 | ||||||||||
| Maximum Power Handling(mW) | 500 | ||||||||||
| Operating Temperature(℃) | -5~+75 | ||||||||||
| Storage Temperature (℃) | -40~85 | ||||||||||
| Package dimension(mm) | 1. L100 x W80 x H10 ( 2 CH~8CH Module) | ||||||||||
| 2. L120xW800xH18 (9 CH~18CH Module) | |||||||||||
Remark: Above is without connectors,if with connectors,add more 0.2dB.
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
2010
Overseas Office
Yes
Annual Export Value
Below US$1 Million
