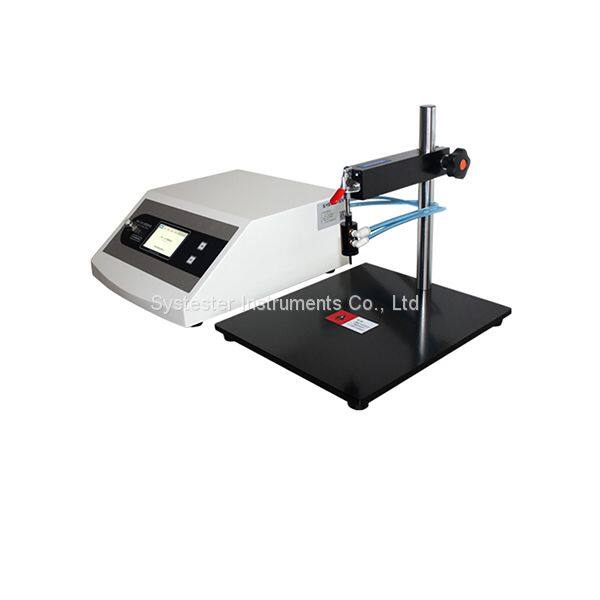

Help CenterPolyethylene Plastic Bags Seal Strength Tester Vacuum Leak Laboratory Equipment
Related Products
-
AC 220V 50Hz Leakage TesterUS$ 1 - 10000MOQ: 1 Set -
Plastic Packages Vacuum Leakage Test Equipment Non-destructive TestUS$ 1 - 10000MOQ: 1 Set
-
Vacuum Leakage Test Equipment Non-destructive Test Pharma Package Plastic PackagesUS$ 1 - 10000MOQ: 1 Set
-
Vacuum Leak Test Equipment Flexible Packaging TesterUS$ 1 - 10000MOQ: 1 Set
-
Vacuum Packaging Leakage Testing Machine Leakage TesterUS$ 1 - 10000MOQ: 1 Set
Product Details
Application:
For determining the ability of packages to withstand internal pressurization. For determining the minimum burst strength of a seal placed around the perimeter of a flexible package as it is internally pressurized and enclosed within restraining plates. For the measurement of leaks in nonporous film, foil, or laminate flexible pouches and foil sealed trays, which may be empty or enclose solid product.
Features :
1. Embedded system control, patent technology.
2. Touch screen operation.
3. Real color TFT LCD display.
4. Burst, standard creep, creep-to-burst test.
5. Open package test is available. (optional)
6. With and without restraining plates test is available. (optional)
7. High speed sampling for test accuracy warranty.
8. Over pressure protection.
9. Low power consumption.
10. RS232 communication port.
11. DSM computer software support. (optional)
Technical Indexes:
| Testing range | 0.5 ~ 800kPa; accuracy |
| Gas source | 0.4MPa ~ 0.7MPa (self-provide) |
| Mainframe dimension | 345mm(L) × 410 mm(B) × 170mm(H) |
| Package fixture size | 300 mm(L) × 350mm(B) ×330mm(H) |
| Power supply | AC 220V 50Hz |
| Net weight | 25kg |
Standards:
ASTM , ISO , GB
