Home > Industrial Equipment & Components > Valve > Ball Valve > QF-2 Carbon Dioxide Fire Extinguisher Valve,Gas Cylinder Valve,Gas Valve Types

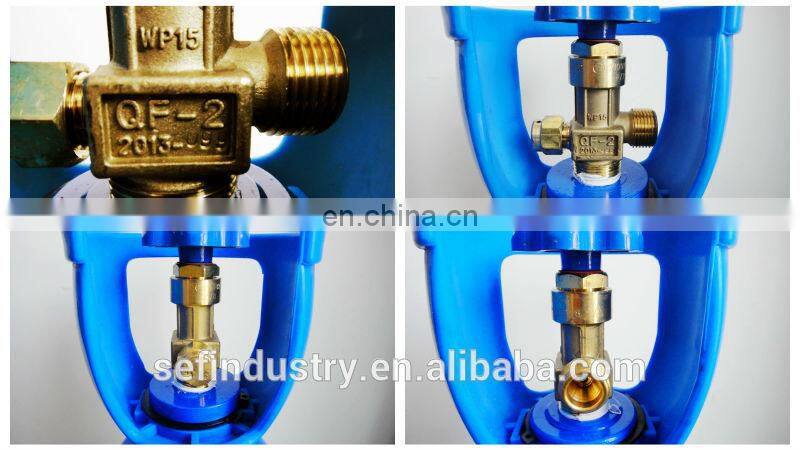

QF-2 Carbon Dioxide Fire Extinguisher Valve,Gas Cylinder Valve,Gas Valve Types
US$ 1 - 9
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SEFIC Gas Valve Types
Place of Origin:
Shanghai, China
Model Number:
QF-2 Gas Valve Types
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QF-6A Oxygen Gas Cylinder Valve,Oxygen Cylinder ValveUS$ 2 - 9MOQ: 1 Unit -
QF-6A Oxygen Gas Cylinder Valve,Cylinder ValveUS$ 2 - 9MOQ: 1 Unit
-
CGA350 Wrapped Fiberglass Composite Gas Cylinder Valve CGA Cylinder Valve Industrial Extinguisher Inner Thread Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
QF-5G Oxygen Cylinder Valve,CGA Cylinder Valve Medical Gas Cylinder Valves ,Gas Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA540D Wrapped Fiberglass Composite Gas Cylinder Valve CGA Cylinder Valve,Gas Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
Brand Name
SEFIC Gas Valve Types
Place of Origin
Shanghai, China
Model Number
QF-2 Gas Valve Types
Material
Brass
Structure
Control
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Manual
Port Size
GB8335 PZ27.8
Media
Gas
Temperature of Media
Medium Temperature
Gas Valve Types
1. TYPE: QF-2
2. MEDIUM AVAILABLE: O2 N2
3. INLET THREAD: GB8335 PZ27.8
4. OUTLET THREAD: G5/8
5. SAFETY DEVICE(Mpa):21±1.5
6. WP(Mpa: 15
7.DN(mm):4
1. Specification
| Oxygen Cylinder Valve Products Series | |||||||
| TYPE | MEDIUM AVAILABLE | WP(Mpa) | INLET THREAD | OUTLET THREAD | SAFETY DEVICE(Mpa) | DN(mm) | STRUCTURAL STYLE |
| QF-2 | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2B | O2,N2 | 15 | GB8335 PZ27.8 | G5/8-LH | 21±1.5 | 4 | Valve type |
| QF-2B1 | O2,N2 | 15 | G1/2 | W22×1/14 | 21±1.5 | 4 | Valve type |
| QF-2C | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2D | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 21±1.5 | 4 | Valve type |
| QF-2E | O2,N2 | 15 | JIS B 8246 V1 φ20 | W22×1/14 | 4 | Valve type | |
| QF-2F | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-2G | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Shaft type |
| QF-2M | O2,N2 | 15 | GB8335 PZ27.8 | G1/2 | 21±1.5 | 4 | Valve type |
| QF-2P | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-4 | O2,N2 | 15 | GB8335 PZ27.8 | G3/4 | 21±1.5 | 4 | Valve type |
| QF-5 | O2,N2 | 20 | GB8335 PZ27.8 | G5/8 | 28±2 | 4 | Valve type |
| QF-6 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 4 | Valve type | |
| QF-7 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread G5/8 | 4 | Needle form | |
| QF-8 | O2,N2 | 15 | GB8335 PZ27.8 | G1/2 | 4 | Shaft type | |
| QF-12 | O2,N2 | 15 | GB8335 PZ19.2 | G5/8 | 21±1.5 | 4 | Valve type |
| QF-20 | O2,N2 | 15 | GB8335 PZ19.2 | G1/2 | 21±1.5 | 2 | Diaphragm type |
| QF-21 | O2,N2 | 15 | GB8335 PZ19.2 | W21.8×1/14 | 21±1.5 | 2 | Diaphragm type |
| QF-22 | O2,N2 | 15 | GB8335 PZ27.8 | W21.8×1/14 | 21±1.5 | 4 | Valve type |
| QF-25 | O2 | 15 | GB8335 PZ19.2 | φ7 Hose | 2 | Needle form | |
| QF-27 | O2,N2 | 15 | JIS B 8246 V1 | W22×1/14 | 21±1.5 | 3 | Valve type |
| F-1 | O2,N2 | 15 | GB8335 PZ27.8 | Internal thread W23×1/14 | 21±1.5 | 4 | Valve type |
| F-2 | O2,N2 | 15 | JIS B 8246 V2 | Internal thread W23×1/14 | 21±1.5 | 4 | Valve type |
| F-3 | O2,N2 | 15 | BS341 1×1/14 | Internal thread G5/8 | 21±1.5 | 4 | Shaft type |
| DF-4 | O2,N2 | 15 | GB8335 PZ27.8 | G5/8 | 21±1.5 | 4 | Shaft type |
2. Valve Production Process
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries)
by opening, closing, or partially obstructing various passageways.
3. Valve Production Base
4.PACKING AND DELIVERY
5.Valve Usage / on Steel Cylinder / On Aluminum Cylinder
