Home > Industrial Equipment & Components > Valve > Ball Valve > QF-42 Natural Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder Valve Seamless Steel Gas Cder Valve
QF-42 Natural Gas Cylinder Valve,Oxygen Cylinder Valve,CGA Cylinder Valve Seamless Steel Gas Cder Valve
US$ 1 - 9
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
SEFIC Gas Cylinder Valve
Place of Origin:
Shanghai, China
Model Number:
QF-42 Gas Cylinder Valve
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CGA580A Wrapped Fiberglass Composite Gas Cylinder Valve CGA Cylinder Valve,Oxygen Cylinder ValveUS$ 1 - 9MOQ: 1 Unit -
CGA540C Wrapped Fiberglass Composite Gas Cylinder Valve CGA Cylinder Valve,Oxygen Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA540D Wrapped Fiberglass Composite Gas Cylinder Valve CGA Cylinder Valve,Oxygen Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA350 Check Valve,Gas Cylinder Valve,Oxygen Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
-
CGA300(QF-70) CGA Cylinder Valve Industrial Extinguisher Valve,Oxygen Cylinder ValveUS$ 1 - 9MOQ: 1 Unit
Brand Name
SEFIC Gas Cylinder Valve
Place of Origin
Shanghai, China
Model Number
QF-42 Gas Cylinder Valve
Material
Brass
Structure
Control
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Manual
Port Size
GB8335 PZ27,8
Media
Gas
Temperature of Media
Medium Temperature

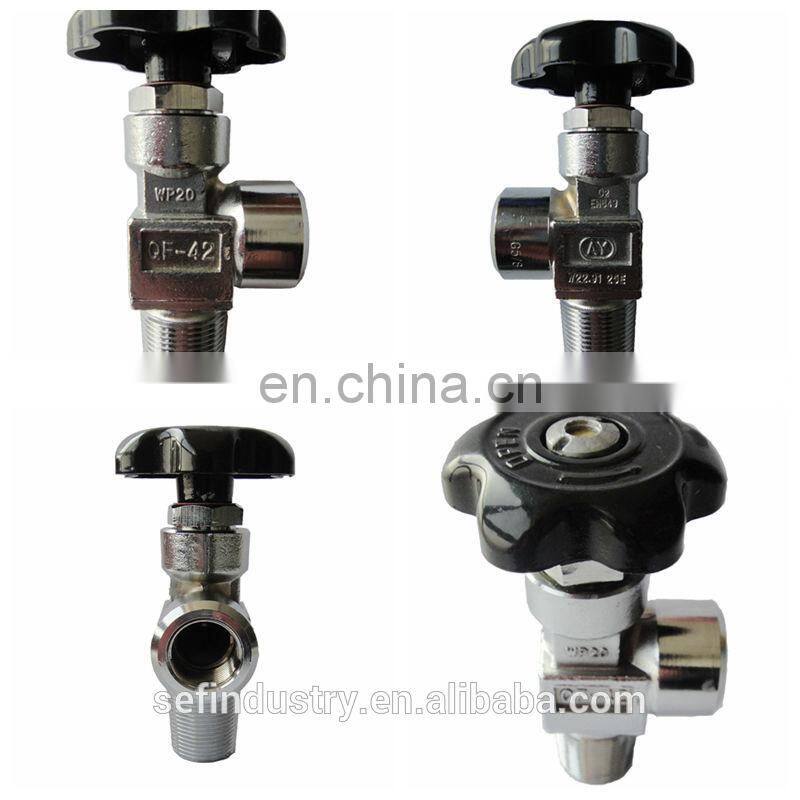

Gas Cylinder Valve
1. TYPE: QF-42
2. MEDIUM AVAILABLE: O2
3. INLET THREAD: GB8335 PZ27.8
4. OUTLET THREAD: Internal thread G5/8
5. SAFETY DEVICE(Mpa):
6. WP(Mpa: 15
7.DN(mm):4
1. Specification
| Acetylene Cylinder Valve Products Series | ||||||
| TYPE | MEDIUM AVAILABLE | WP(Mpa) | INLET THREAD | OUTLET THREAD | SAFETY DEVICE(Mpa) | DN(mm) |
| QF-15 | CH | 3 | φ35.52 | φ21 Clip | 3 | |
| QF-15A | CH | 3 | GB8335 PZ39 | φ21 Clip | 100°C±5°C | 4 |
| QF-15A1 | CH | 3 | GB8335 PZ39 | Internal threadG5/8-LH | 100°C±5°C | 4 |
| QF-15A3 | CH | 3 | GB8335 PZ39 | G1/2 | 100°C±5°C | 4 |
| QF-15A5 | CH | 3 | 1-11 1/2-NGT | G1/2 | 4 | |
| QF-15A8 | CH | 3 | GB8335 PZ39 | G3/4 | 100°C±5°C | 4 |
| QF-15A14 | CH | 3 | GB8335 PZ39 | CGA300 | 100°C±5°C | 4 |
| QF-15A2F | CH | 3 | 1-11 1/2-NGT | G1/2 | 100°C±5°C | 4 |
| QF-15A21 | CH | 3 | JIS B 8244 φ39 | CGA300 | 100°C±5°C | 4 |
| QF-15B | CH | 3 | GB8335 PZ27.8 | Internal threadG5/8-LH | 3 | |
| QF-15B1 | CH | 3 | BS341 1×1/14 | Internal threadG5/8-LH | 100°C±5°C | 3 |
| QF-15C | CH | 3 | 1-11 1/2-NGT | Internal threadG5/8-LH | 3 | |
| QF-15C2 | CH | 3 | GB8335 PZ27.8 | Internal threadG5/8-LH | 3 | |
| QF-15C5 | CH | 3 | BS341 1×1/14 | Internal threadG5/8-LH | 3 | |
| QF-15S | CH | 3 | GB8335 PZ39 | φ21 Clip | 100°C±5°C | 4 |
| QF-15S1 | CH | 3 | 1-11 1/2-NGT | φ21 Clip | 100°C±5°C | 4 |
| QF-7D4 | CH | 3 | GB8335 PZ27.8 | Internal threadG5/8-LH | 100°C±5°C | 4 |
| QF-73 | CH | 3 | GB8335 PZ27.8 | Internal threadG5/8-LH | 100°C±5°C | 4 |
2. Valve Production Process
A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries)
by opening, closing, or partially obstructing various passageways.
3. Valve Production Base
4.PACKING AND DELIVERY
5.Valve Usage / on Steel Cylinder / On Aluminum Cylinder
