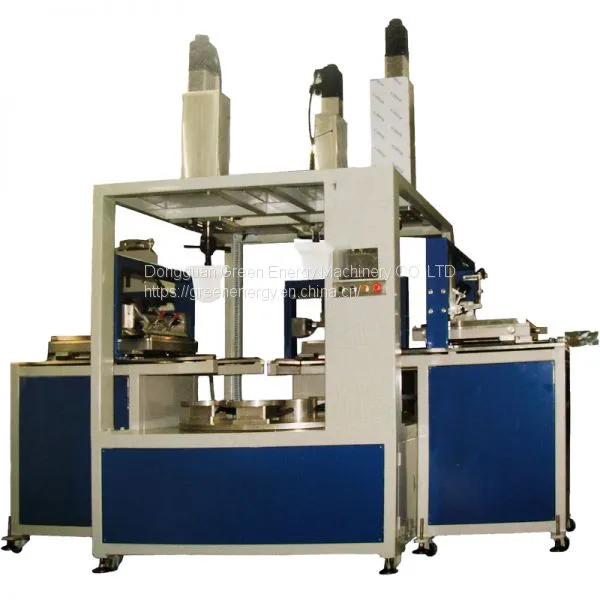

four color tampo printing machine for porcelain tableware/ceramic dishes
Technical Parameter:
Max printing area |
300*400 mm |
Ink tray size |
500*750 mm |
Printing speed |
200pcs/hr |
Machine weight |
1300KG |
Air pressure |
5-7 bar |
Power |
220v |
Machine size |
1700*2200*3300mm |
Standard Features:
1. servo motor drive, Panasonic PLC controlled.
2. Designed special for ceramic products, for example ceramic bowl, ceramic platter, ceramic dish, etc.
3. Fast printing speed, up to 300pcs per hour, saving labor cost, and improving the efficiency of printing work.
4. High registration accuracy±0.8mm.
5. Suitable for smoothness plane, concave and convex surfaces, the application is wider than screen printing.
6. Lower cost consumable materials than screen printing, hand painting and stained paper.
7. Larger printing size, up to Dia 50 mm - 350 mm.
8. Heavy construct frame for working stable.
9. Printing height is adjustable.
Application:
the pad printing machine design for ceramic bowl, ceramic platter, ceramic dish and ceramic mug printing. Machine satisfy 1 color to 4 color print, install PLC and touch screen interface, with programmable printing process, quick and simple operation, accurate registration, highly output features.
