Automatic Sugar Chocolate Coating Machine
- Qingdao Shenzhen
- T/T Credit Card
You May Like
-
Popcorn Small Candy Coating Pan Machine
-
Sugar Chocolate Coating Machine Peanut Sugar Jelly Candy
-
Ice Cream Waffle Cone Maker Egg Roll Maker
-
Ice Cream Waffle Maker Sugar Cone Making Machine
-
Commercial Best Waffle Cone Maker Ice Cream Cone Making Machine
-
Sugar Cone Making Machine Ice Cream Waffle Cone Maker
Product Details
| Brand Name | Quate | Place of Origin | Henan, China | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
automatic sugar chocolate coating machine
Description of chocolate coating machine:
The chocolate coating machine is used to carry out sugarcoating and so on to the core of Chinese traditional medicine and western medicine tablets, it integrates strong power, weak power and hydraulic pressure with pneumatic operation, it is new type equipment improved on the basis of original common type sugar coating machine.
The chocolate coating machine is composed of the mainframe (original sugarcoating machine), controllable normal-temperature hot air system, automatic liquid supply and air supply spraying system, exhaust unit etc. The main motor has function of frequency speed control, it sprays the coating purposed auxiliary materials to the tablet surface with high atomized spray gun automatically, meanwhile, the tablets make continuous and complex track movement in the coating pan, let the coating liquid cover the tablet core evenly, the Controllable normal-temperature hot air in the pan will dry the tablets at the same time, Exhaust fan discharges the waste gas and aqueous vapor, let the tablet surface form a Firm, fine, complete and smooth surface film rapidly.
Parameter of chocolate coating machine
| Model | BY-300 | BY-400 | BY-600 | BY-800 | BY-1000 | BY-1250 |
| Diameter(mm) | 300 | 400 | 600 | 800 | 1000 | 1250 |
| Revolution(r/min) | (1-46)Adjustable | (1-46) Adjustable | 50 | 32 Adjustable | 32 Adjustable | 25 Adjustable |
| Main power(kw) | 0.12 | 0.12 | 0.75 | 1.1 | 2.2 | 2.5 |
| Drum power(w) | 40 | 40 | 100 | 180 | 180 | 370 |
| Heating power(w) | 700 | 700 | 800 | 2000 | 3000 | 3000 |
| Capacity(kg/time) | 1-3 | 3-5 | 20-30 | 30-50 | 50-70 | 80-150 |
| Dimension(mm) | 550*400*850 | 550*400*850 | 650*450*920 | 925*900*1400 | 1100*1100*1500 | 1200*1250*1630 |
| Weight(kg) | 30 | 30 | 85 | 205 | 220 | 350 |

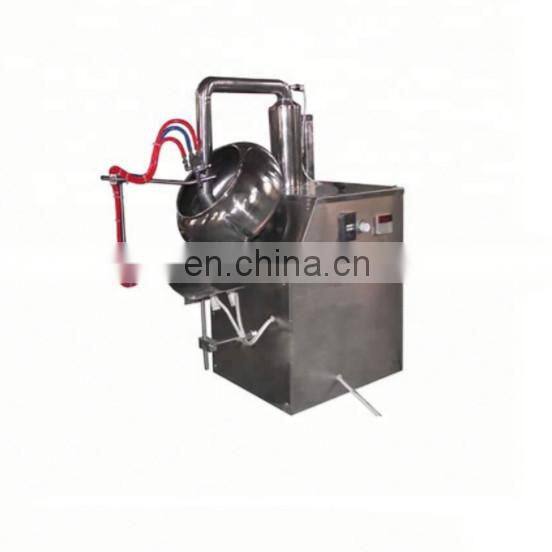

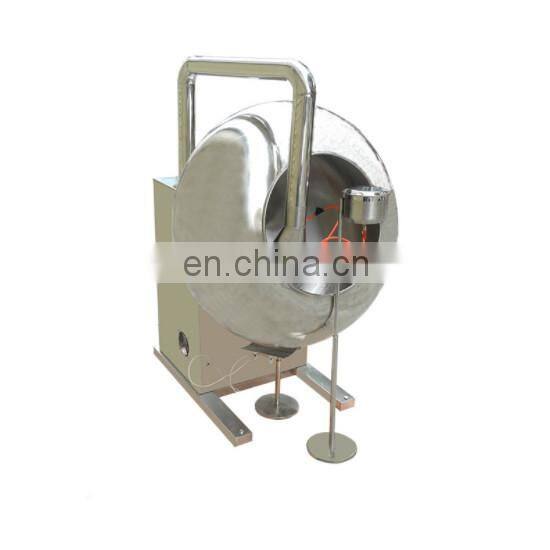

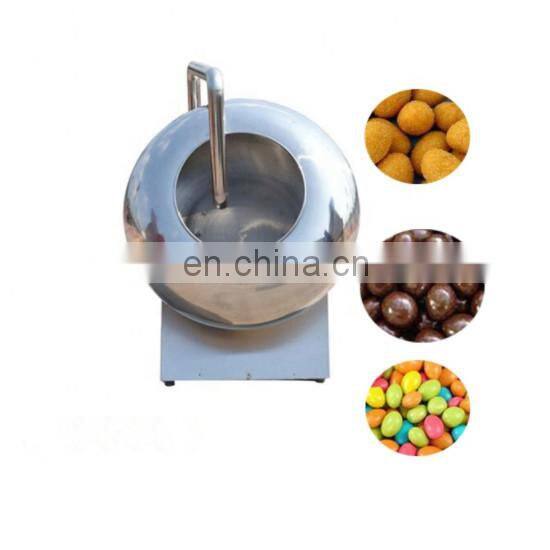

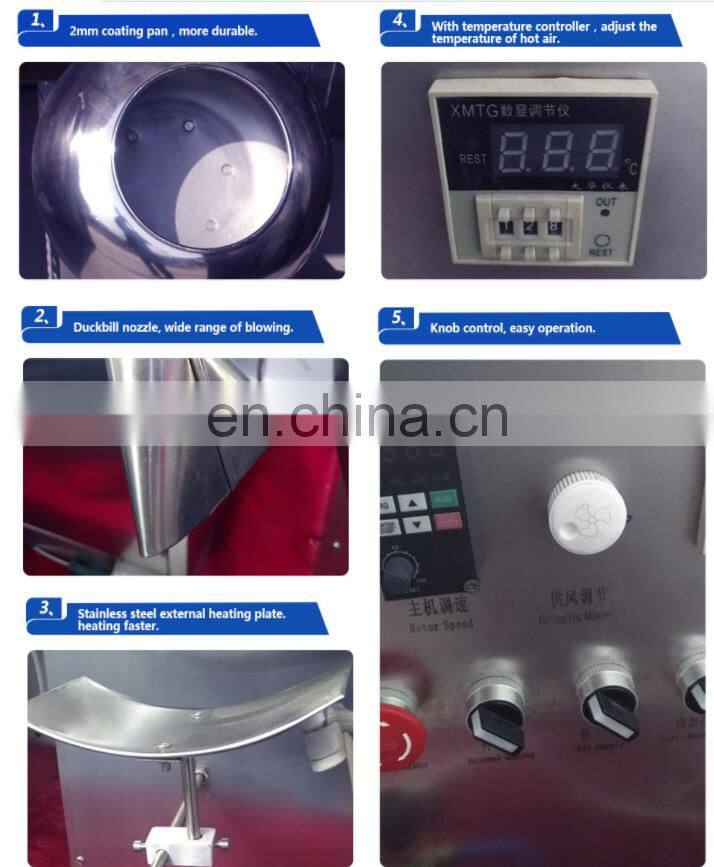

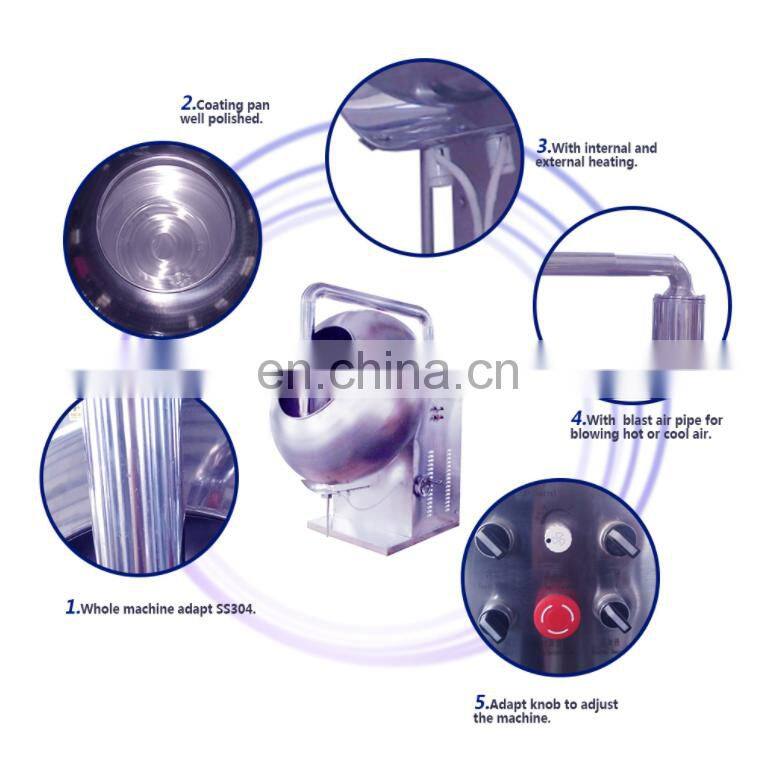

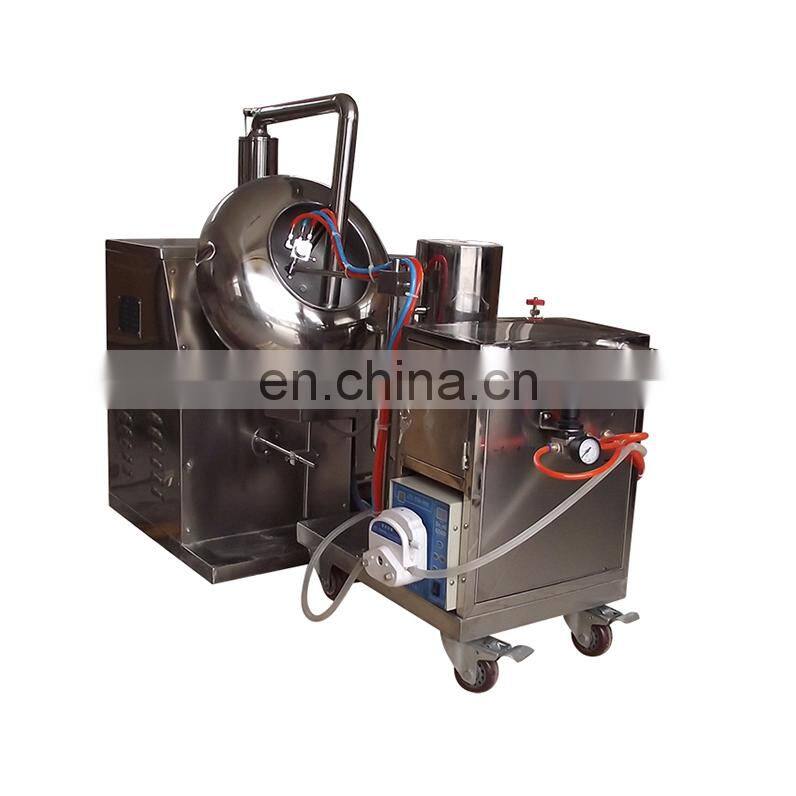

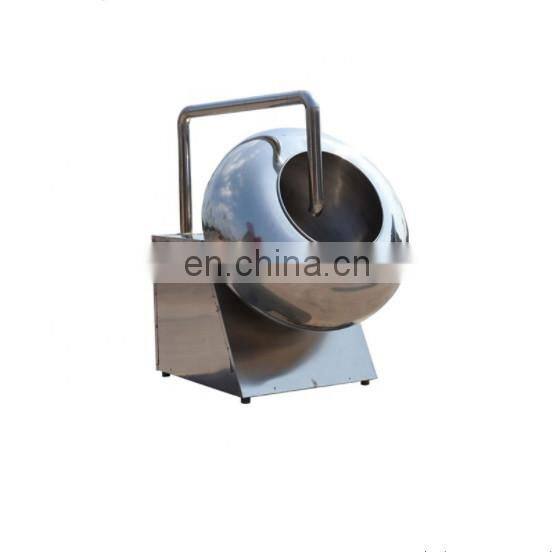

Picture of chocolate coating machine:
Samples of chocolate coating machine:
Service before sale
1, 24 hours online .Your inquiry will be quick reply by email .
Also can go through all questions with you by any online chatting tools (Wechat ,Whatsapp ,Skype ,Viber ,QQ , TradeManager )
2,Professionally and patiently introduction,details pictures and working video to show machine
Service on sale :
1,Test every machine and inspect the machine seriously .
2,Send the machine picture which you order , then packing it with standard export wooden box after you confirm the machine is ok .
3,Delivery:If ship by sea .after delivery to seaport .Will tell you the shipping time and arrival time . Finally, send all original documents to you by Express For Free.
If delivery it by Express to your door(DHL, TNT,Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request . We will tell you the tracking number after delivery.
Service after sale
1, Free insurance for goods
2, 24 hours online to solve any problem . Supply you English manual book and technical support , maintain and install video to help you solve the problem, or dispatch worker to your factory.
Q1: How to order?
A: inquiry >>confirmation>>payment>>delivery
Q2: About MOQ
A: As customers’ options.
Q3: About customization
A: ODM/OEM business partner will be warmly welcome.
Q4: About sample and freight
A: Sample will be shipped by express, freight will be confirmed by our forwarder.
Q5: About price
A: Price is based on QTY, payment terms, time of delivery
IF YOU HAVE ANY QUESTIONS, PLEASE CONTACT US AND WE WILL TRY OUR BEST TO HELP YOU!
