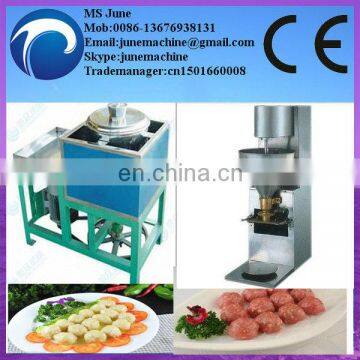

electric meatball machine
Introduction:
This machine is used to make chicken meat balls, shrimp balls, pork balls, beef balls, mutton balls, vegetable balls.
The main structure and working principle
1. The machine main including main knife combination, forming gears and, hopper, rotary combination, lubrication waterways combination, transmission system, etc.
the machine food touched parts adopt stainless steel and non-ferrous copper alloy materials, conform to the requirements of the food hygiene, easy to clean. E*ternal plate adopt stainless steel material, appearance, corrosion resistance.
2.working principle
Machine is working, twisted dragon rotary press, make meatballs raw material inside the hopper after molding gear, molding, fork leads do reciprocating motion of the cutting knife, the cutting the rotating balls stuffing, complete the balls.
Technical Parameters:
Model |
TZ-380 |
Dimension |
760*355*1220mm |
Power |
1.5kw |
Voltage |
220( single phase ),380V(three phase) |
Capacity |
200-300pcs/min |
Weight |
80kg |
Dies of meatball machine |
Big, Middle, Small Dies. |
If you need the matched meatball beating machine,pls refer to the following :
Model |
Voltage |
Power |
Dimension |
Capacity |
weight |
TZ—22 |
220V |
2.2kw |
340*330*800mm |
2kg/time |
28kg |
TZ—24 |
220V |
2.2kw |
340*330*800mm |
3kg/time |
30kg |
TZ—26 |
220V |
2.2kw |
400*400*920mm |
4kg/time |
32kg |
TZ—30 |
380V |
5.5kw |
680*400*840mm |
8kg/time |
95kg |
