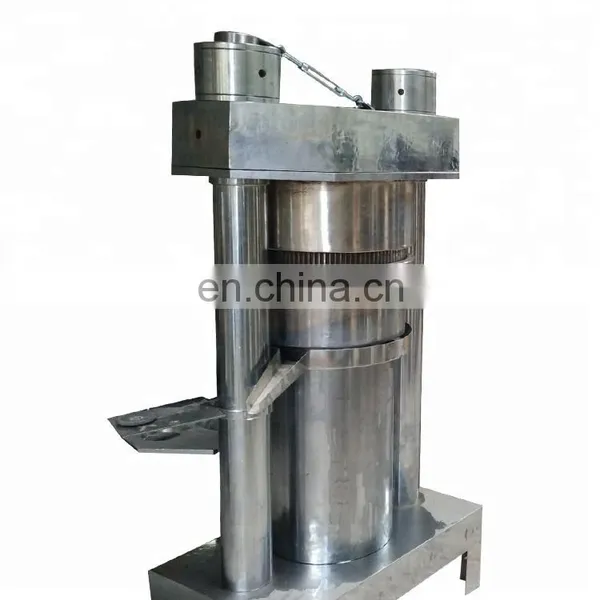

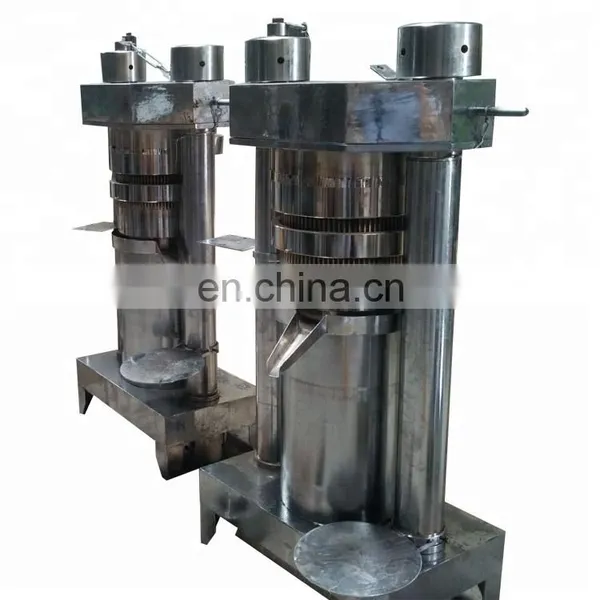

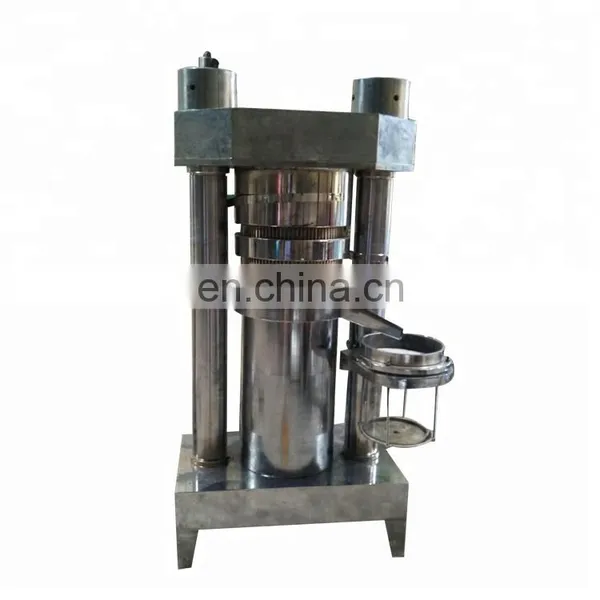

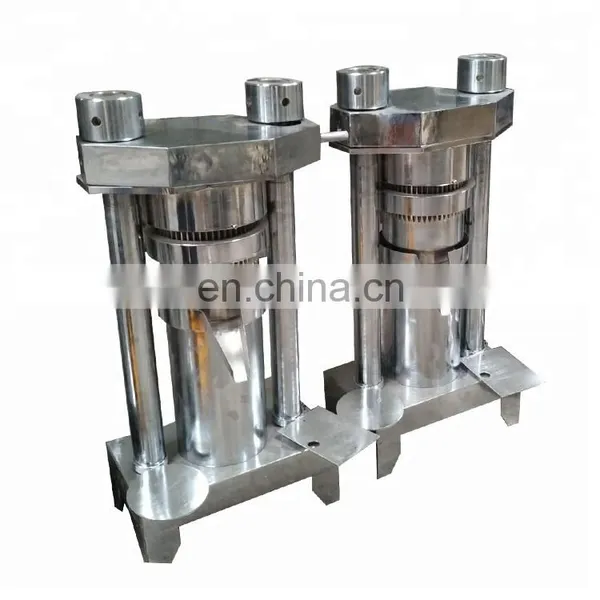

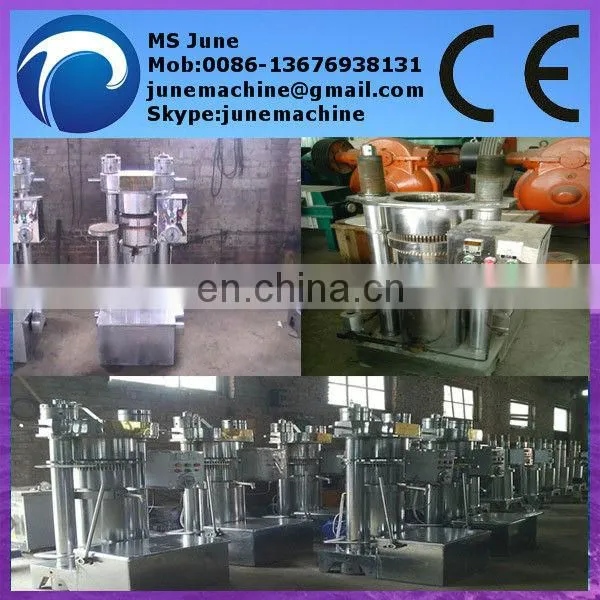

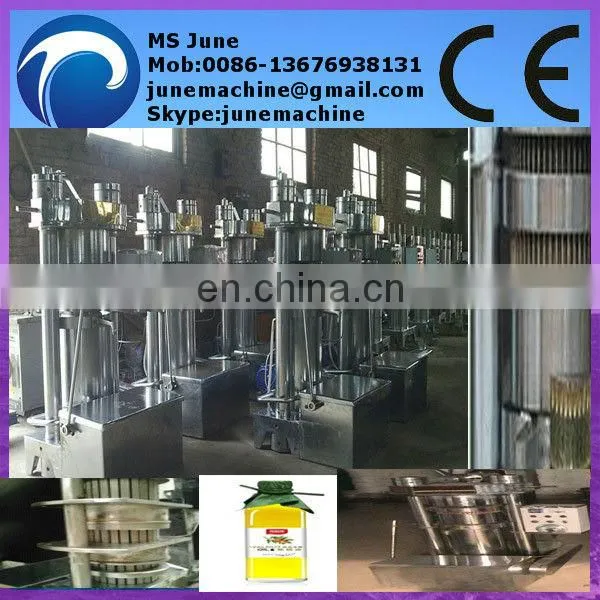

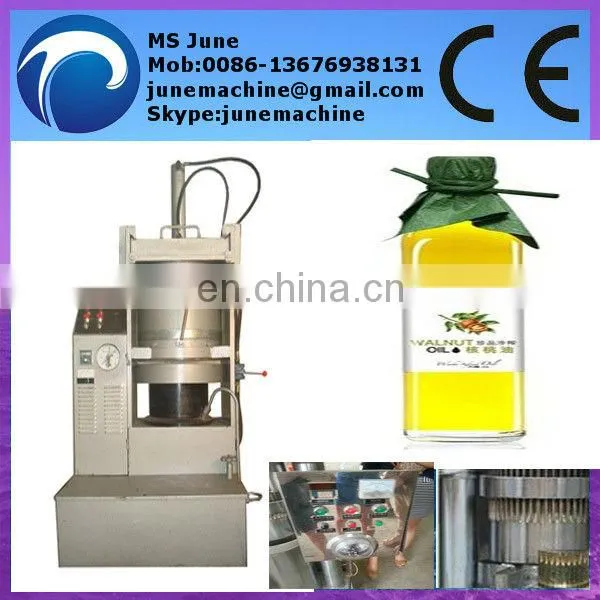

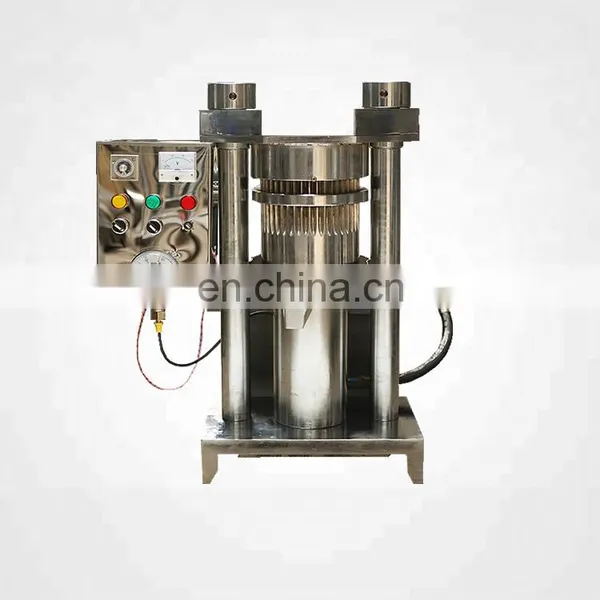

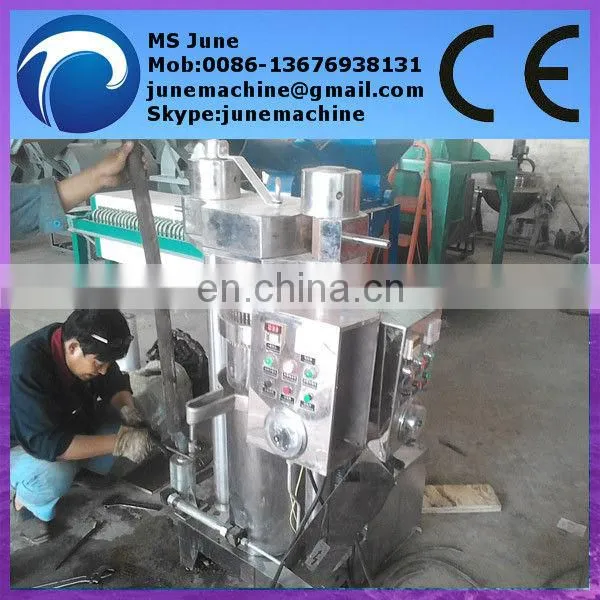

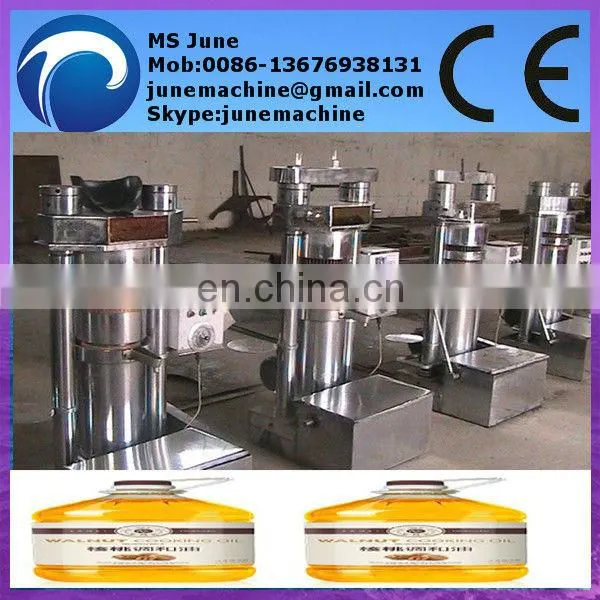

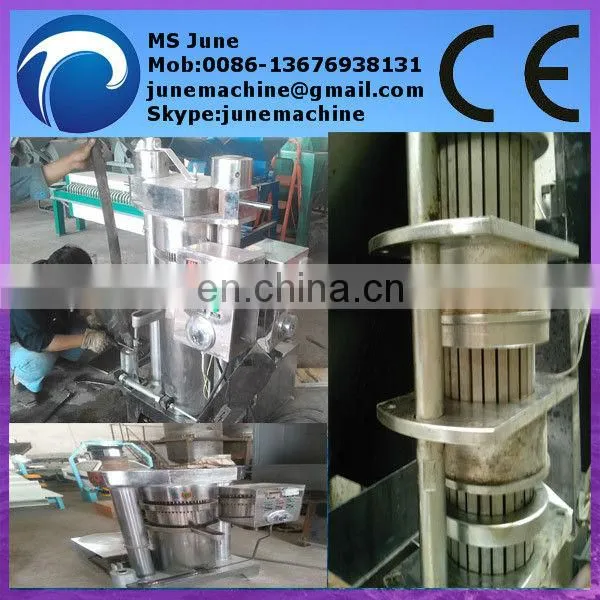

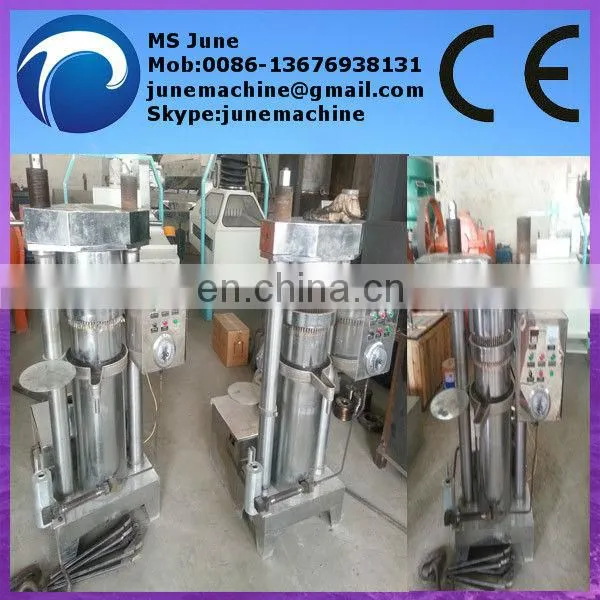

hydraulic olive oil press machine
Introduction:
The automatic hydraulic oil press can be used for process many kinds of raw material: sesame, walnut kernel, peanut, pine seed (better to get rid of the shell), almond, spricot kernel, perilla, linseed and other oil crops
Structure
1. main engine 2. hydraulic system 3.electrical system
Technical parameter:
materials |
models |
time period/time |
weight/time |
output /10 hour |
oil ratio |
|
sesame |
type 180 |
5-8 minutes |
1-3kg |
150-300kg |
42%--52% |
type 230 |
4-6minutes |
2-7.5kg |
450-750kg |
||
type 320 |
8-10minutes |
5-15kg |
800-1200kg |
||
|
almond |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
40%-45% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
walnut meat
|
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
50%-60% |
type 230 |
4-6minutes |
2-6kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
||
|
pine nut |
type 180 |
5-8 minutes |
1-2.5kg |
150-250kg |
45%-60% |
type 230 |
4-6minutes |
2-7kg |
350-500kg |
||
type 320 |
8-10minutes |
5-14kg |
700-1000kg |
1 |
Models |
6YZ-180 |
6YZ-230 |
6YZ-320 |
2 |
External Dimension(mm) |
800*650*1100 |
900*750*1400 |
1100*1000*1500 |
3 |
Weight of machine |
530kg |
880kg |
1320kg |
4 |
Nominal pressure |
1600KN |
2200KN |
3000KN |
5 |
Max pressurefor working |
55Mpa |
55Mpa |
55Mpa |
6 |
Power of electricity heating circle |
1KW |
1KW |
2KW |
7 |
Controlling temperature of heating circle |
70-100°C |
70-100°C |
70-100°C |
8 |
Sesame weight/time |
1-3kg |
2-7kg |
5-15kg |
9 |
Motor types and power(kw) |
Y901-4-1.5kw |
Y901-4-1.5kw |
Y901-4-1.5kw |
