walnut shelling line walnut processing machine

Product Description

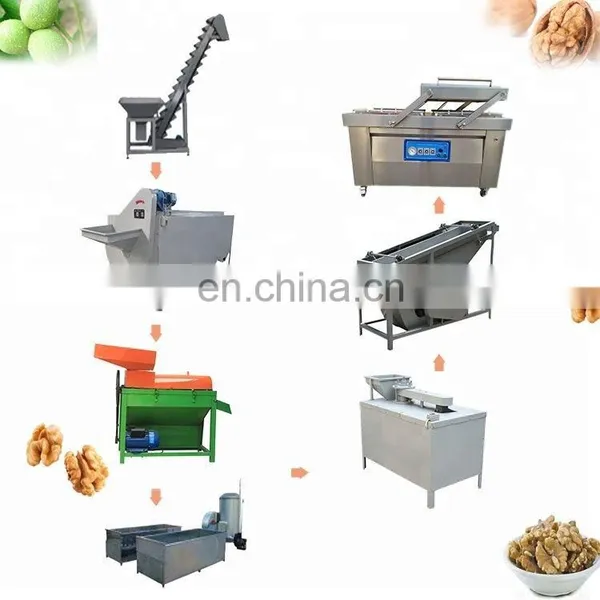

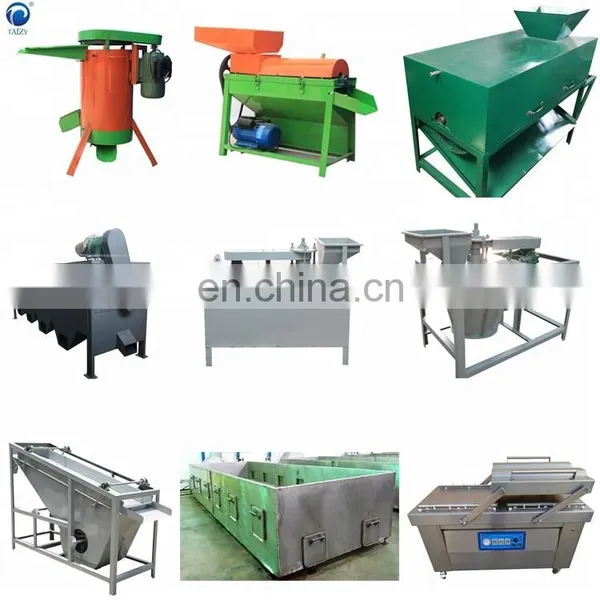

The walnut processing machine:
Its capacity can reach to 300-1000kg/h usually, and we can also customize it according to customer needs.

walnut shelling line walnut processing machine

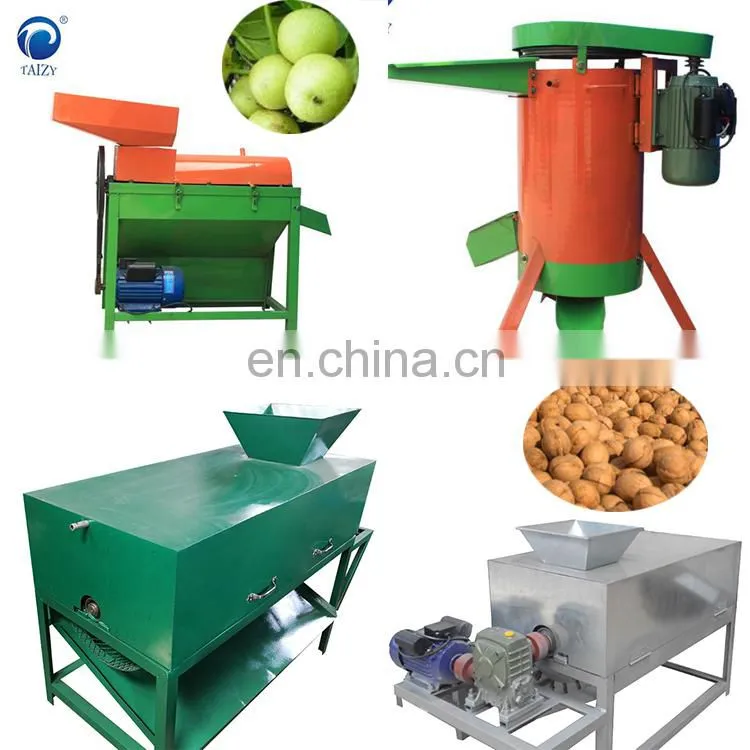

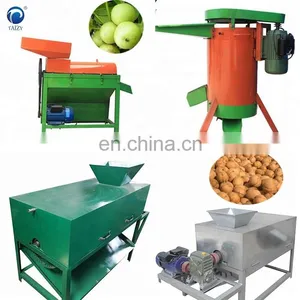

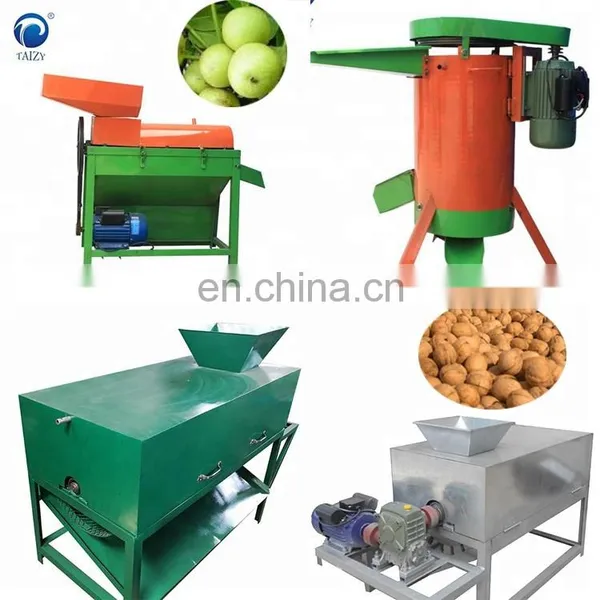

The green walnut peeling machine mainly removes the green skin outside the green walnut, which has high peeling rate and simple operation.
Vertical green walnut peeling machine: First, add about 30 kg of water from the feed port, then turn on the power, then add 50 kg of green walnut. The green skin will be removed in about 5 minutes, and the peeling rate is as high as 95%. It is mainly peeled and peeled by the spindle steel brush and automatically cleaned.
Horizontal green walnut peeling machine: Turn on the power before use, then connect the water pipe, and continue to add the green walnut to the feeding port, so the green walnut will be cut off by the blade on the spindle and the steel brush will be turned off and automatically Cleaning. Its peeling rate is as high as 99%.

Model



Power Capacity



Peeling rate Damage rate Weight Size



TZ-400 1.5kw 400-600kg/h 99% 0.5% 120kg 1450*680*880mm
TZ-600 2.2kw 600-800kg/h 99% 0.5% 160kg 1550*750*980mm
TZ-800 3kw 800-1000kg/h 99% 0.5% 230kg 1850*850*1100mm

walnut shelling line walnut processing machine

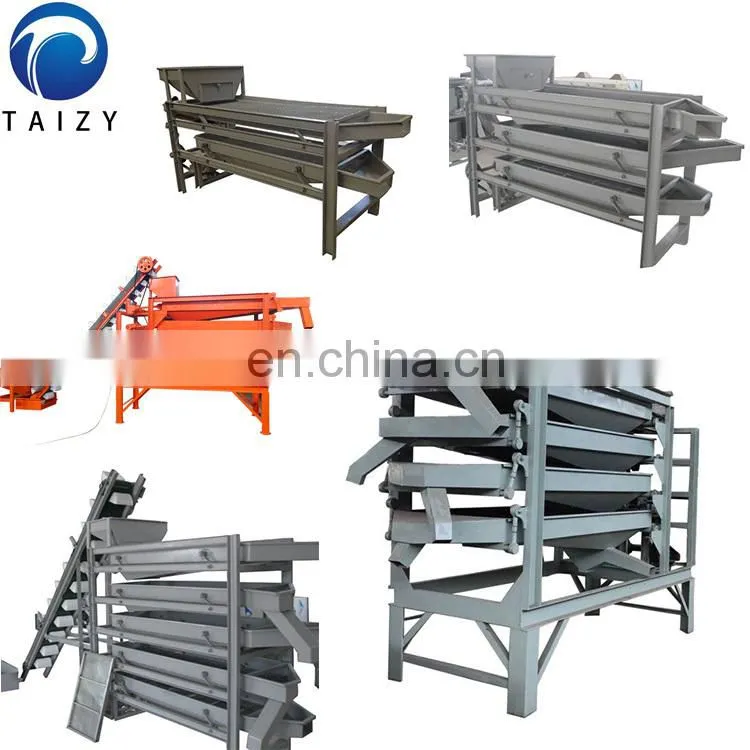

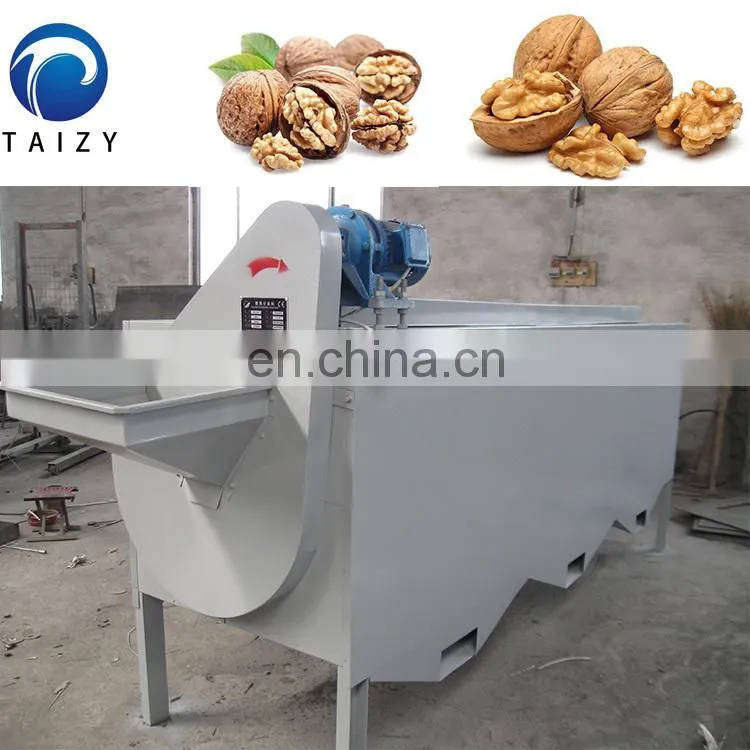

The walnut sorting machine is composed of a frame, a motor, a drum screen body, a hopper and the like.

First, the mixed size walnuts are placed in the hopper, and the hopper quantitative gate is controlled to control the supply amount of the raw materials, and then the raw materials are dropped into the sieve body. Finally, the segments are separated by small to large screens in the rotation of the segmented different aperture screens.

The difference in growth size of walnuts is uneven. In order to improve the integrity rate of shell-opening rate, it is generally divided into 3--5 grades, which are customized according to customer requirements.The classification level is divided into five according to the width: 20 mm or less, 20--23 mm, 23--26 mm ,26--29 mm ,29 mm or more.

Model Capacity Power Size Weight
TZ-400 400~500kg/h  2.2kw 2.6*1*1.8m 800kg
TZ-1000 1000-2000kg/h 3kw 8*1.9*3.2m 2000kg

 walnut shelling line walnut processing machinewalnut shelling line walnut processing machine

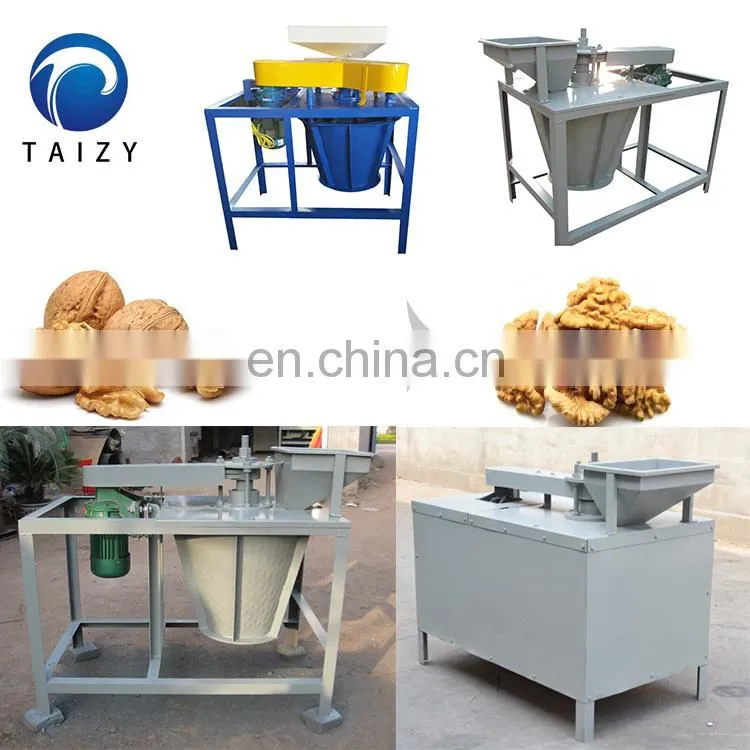

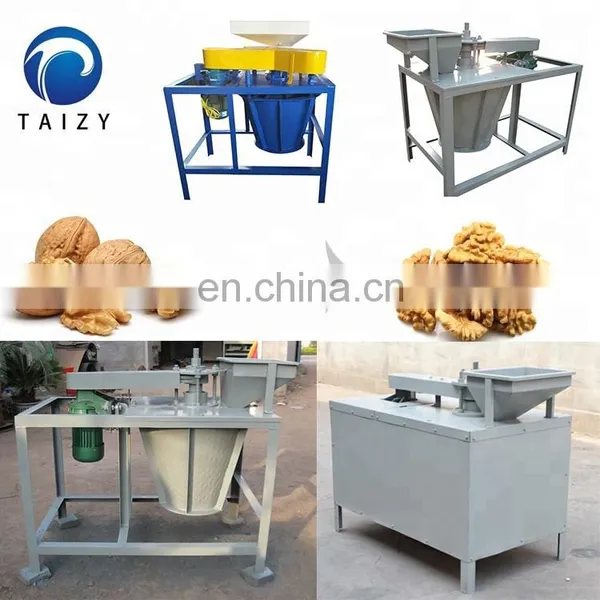

The walnut shelling machine  is mainly used for shelling dry walnut. The internal clearance can be adjusted flexibly according to the varieties and size specifications of walnut so as to achieve the best effect of shelling. Materials are fed from the upper hopper and shells and kernels can be separated after shelling, convenient for manual sorting and improve the work efficiency.

model Voltage Power Complete rate capacity Dimension
TZ-500 380V 1.5KW 90% 500kg / h 1.3*0.8*1.5M


walnut shelling line walnut processing machine

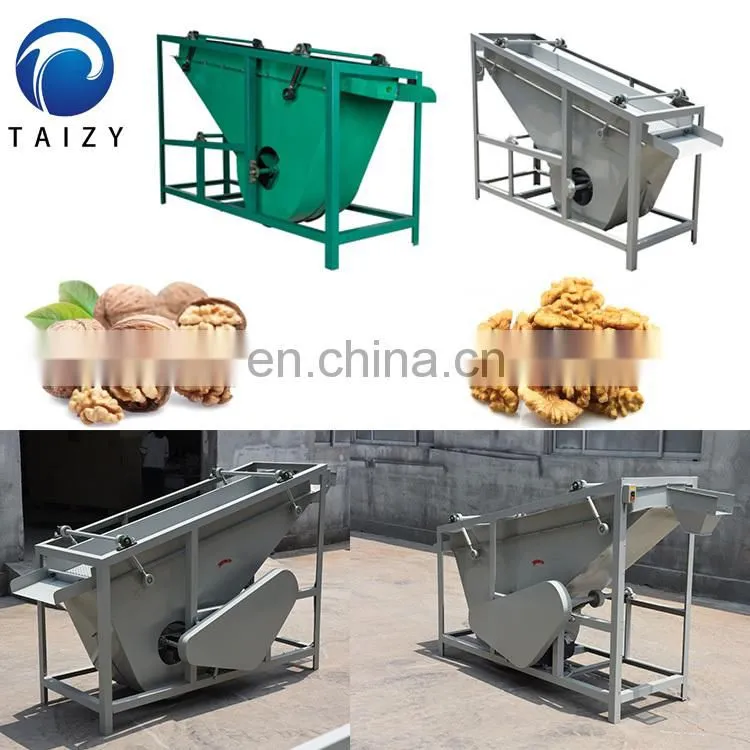

The walnut separator machine is mainly used for the separation of apricot kernel shells, walnuts, shells and kernels.

After shelling with a walnut sheller, the walnut shell and the walnut kernel are separated by a shell separator.The shell kernel separator utilizes the difference in specific gravity and suspension velocity between the shell and the kernel, and promotes separation between the shells by means of a gas flow that passes upward through the gap of the particles.
It is easy to operate, has a small footprint, and is easy to make up.

Model Capacity(kg/h) Power(kw) Voltage(v) Frequency(HZ)

Size(mm)

TZ-400 400-500 2.2 380 50 2300*800*1600
TZ-800 800-1000 3-4 380 50 3500*1000*1800



 walnut shelling line walnut processing machine

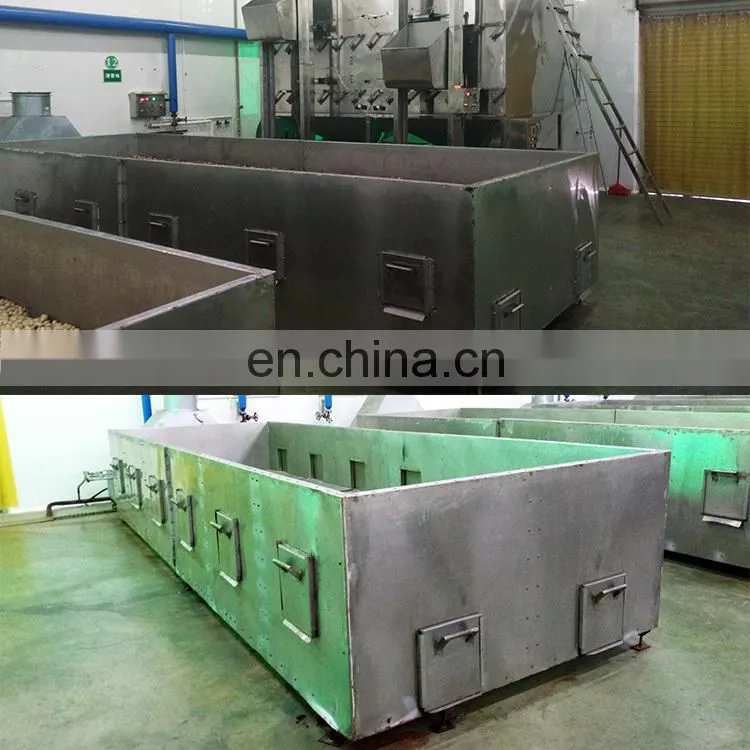

The walnut drying machine is composed of a circulating fan, an engine block, a baffle net, an electrical control box and other components. The temperature of the baking material is set up to ensure the best baking effect.It is suitable for baking peanuts, melon seeds, fruit and vegetable products, uniform temperature distribution and high efficiency.

Model size Motor Capacity weight
TZ-1000 2000×2000×100mm 2.2kw 1000kg/case 1500kg



walnut shelling line walnut processing machine

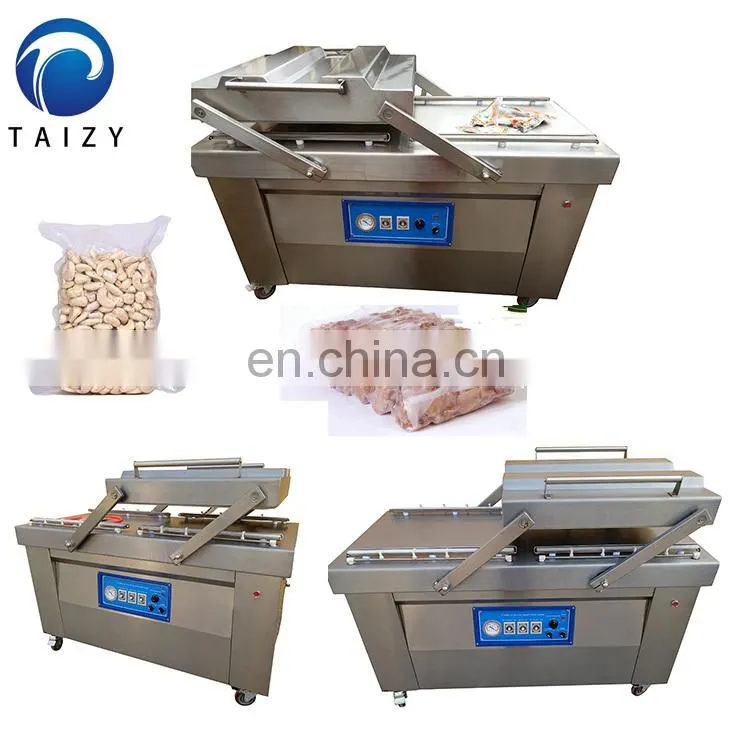

The automatic vacuum packing machine is used to pack many kinds of products such as local  products, aquatic products, medicines, chemical materials etc, and it can also seal products. All kinds of plastic bags and aluminum foil bags can be processed.The vacuum packing machine has two working rooms, which is extremely fast andhigh efficient.

Model Capacity Power Size Weight Voltage
TZ-600 180-300kg/h 2.2kw 1400*780*950mm 360kg 380v



 walnut shelling line walnut processing machine



Our other machine:

https://img13.fr-trading.com/



1.almond cracking production line:

walnut shelling line walnut processing machine

2.cashew nut production line:

walnut shelling line walnut processing machine





Our friends

walnut shelling line walnut processing machinewalnut shelling line walnut processing machine

Company Information

Taizy company is specialized in producing, selling and serving nuts processing production lines.

Our company's main machinery such as: peanuts, walnuts, almonds, cashew nuts and pine nuts production line; macadamia nuts, chestnuts, pistachios, ginkgo, acorns, cocoa beans, castor beans, sesame processing machine; various nuts butter making machines, nuts roasting machines, oil press machines, packaging machines, etc.

Customer satisfaction is our ultimate goal.
Looking forward to establishing cooperation with you.



walnut shelling line walnut processing machinewalnut shelling line walnut processing machine

FAQ

1.  Are you manufacturer?

    Yes, we are. Welcome to visit our factory.
2. Can you change the machine voltage as our request?
    Yes, we can.
3.  How about your after-sales service?
   Our engineer can go outside to install and train your workers to operate the full machine line.
4.  Warranty time of your machine?
    1 year except for consumable spare parts.
5.  How about delivery time of your machine?
    Generally it needs 5-7 days for big machines or producing line,and it will be much longer but within our negotiated delivery time.
