Product:
sugar coating machine
chocolate coating machine
pill coating machine
0086-13837162172
Introduction:
1).The sugar coating round pot is elevated with a elevation 30 to the horizontal.
Also can used for mixing, polishing spherical shape or particles material in chemical industry,light industry, food etc.
For example, coating sugar /flavour on peanut,rolling desiccant, aluminum hydroxide ball, aluminium oxide ball, catalyst.
2).The heater can placed directly under the pot.
3).Main part of the machine is machine body ,worm wheel box ,sugar coating pan, heating device, fans, electric appliances and other major parts.
The pipe of the blower stretches into the pot for heating or cooling purpose.
The thermal capacity could be choose in two levels.
Through the triangle belt driving worm wheel, worm, driving sugar coating pan rotating , driving under the influence of the centrifugal force, making the material rolling friction in the pot, achieving coated with sugar mixture, and making pill, and polishing effect.
Features:
1.This Peanut Coating Machine is made of stainless steel.
2. It used for coating flour, sugar, chocolate, etc for nuts, beans, seeds and so on.
3. The operation is easy, performance is reliable. It is convenient to wash and maintain, thermal efficiency is high.
4.In the machine has air blower can blow hot air to dry the end products,so will not sticky with each other.
Main parameters:
Model |
TZ-300 |
TZ-400 |
TZ-600 |
TZ-800 |
TZ-1000 |
Capacity(kg/time) |
2-3 |
3-5 |
15-30 |
30-50 |
50-70 |
Diameter(mm) |
300 |
400 |
600 |
800 |
1000 |
Rotary speed(r/min) |
46 |
35 |
35 |
35 |
31 |
Inclination Angel(°) |
15-45 |
15-45 |
15-45 |
15-45 |
15-45 |
Main Power(kw) |
0.37 |
0.37 |
0.55 |
1.1 |
1.1 |
Heat power(w) |
300 |
600 |
1000 |
2000 |
2000 |
Weight(kg) |
40 |
50 |
70 |
280 |
330 |

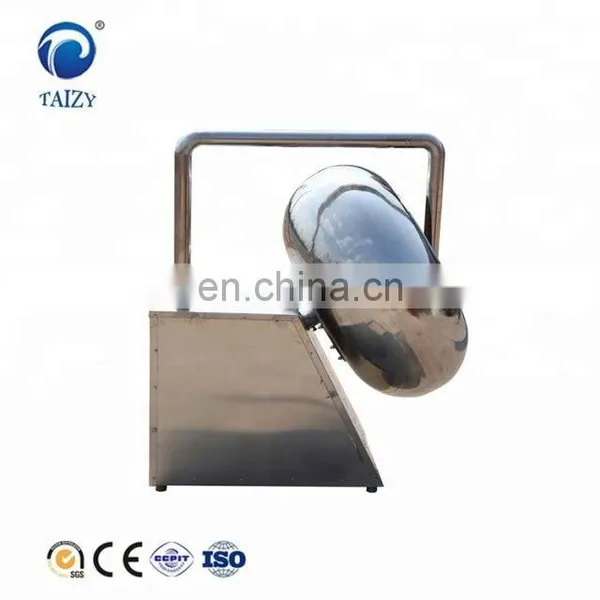

Product show:
If you are interested in our machine or would like to know more
information, please contact with us now.
We are looking forward to cooperating with you.
Pre-sales services
* any concerns of our machine by email/phone will be replied ASAP within 24 hours
* according to the customers’ requirements and circumstance to make the best design
* cost/benefit analysis
* to support factory layout
In the sale of services
* we are in charge of installing,debugging and training
* technical guidance of frequently asked questions
After-sales service
* one year guarantee for whole machine except of quick-wear part
* 24 hours technical support by email/phone
* calling, network or door-to-door service
* use friendly English software, user manual and detailed Videos/CD
