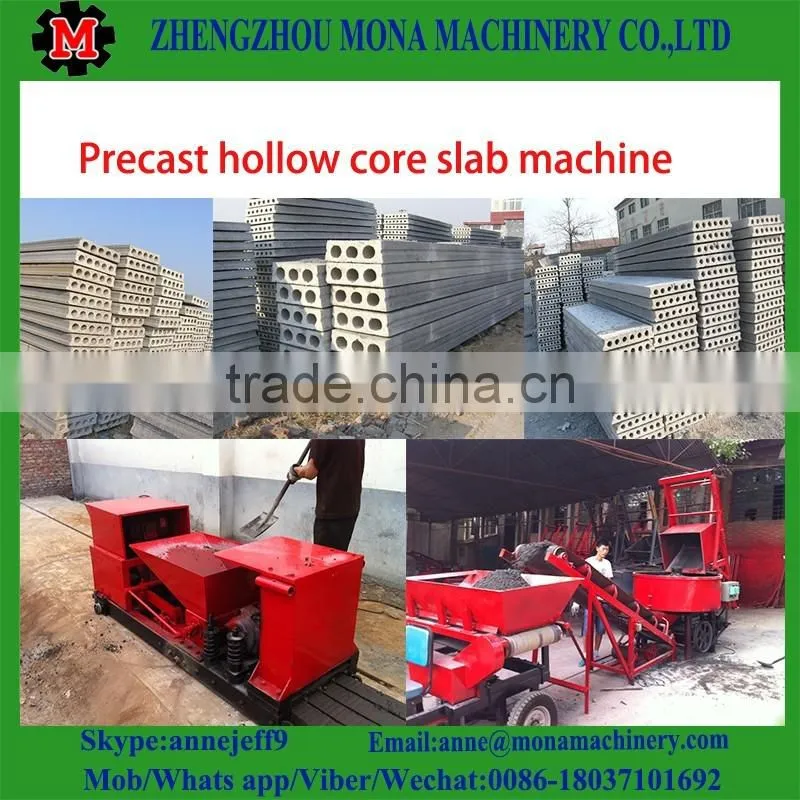

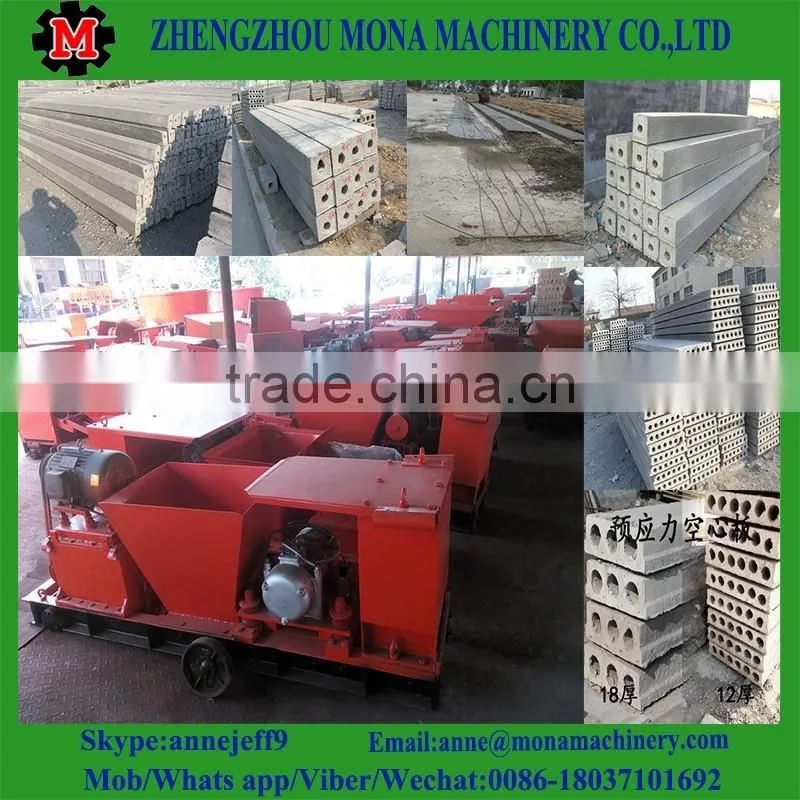

Precast Concrete Hollow Core Slab Machinery/equipment manufacturing of reinforced concrete for sale

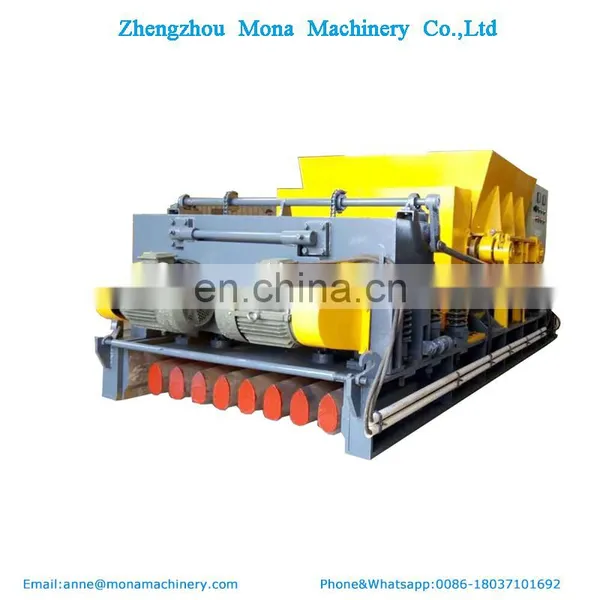

The machine works on the concrete platform.Driven by the motor and transmitted through the speed reducer.The movement of the slipper block pushed the loose material to the forming container from the hopper.With the continuous working of the vibrate plate,the material condensed by pushing and discharging of the concrete be hard and strong.The slab can be cut to different length from 4.2m-18m.Finished products with Strong load capacity ,smooth surface and good flatness

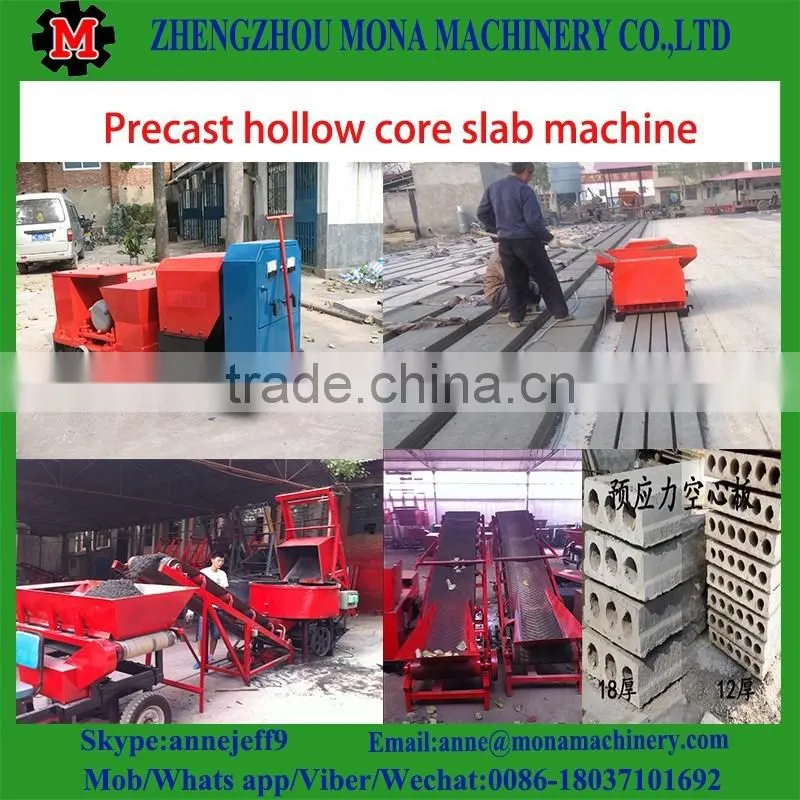

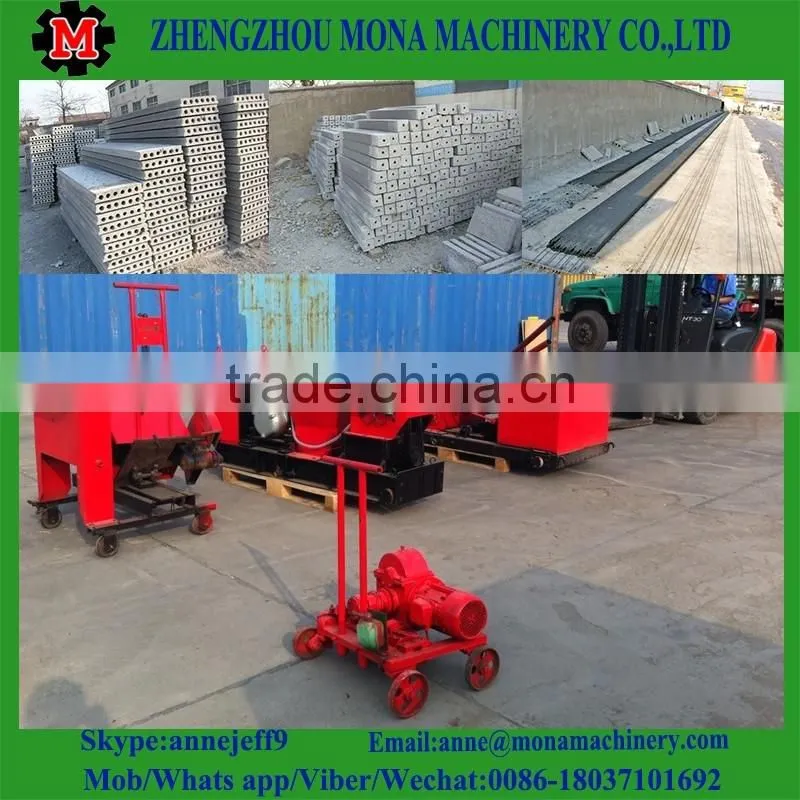

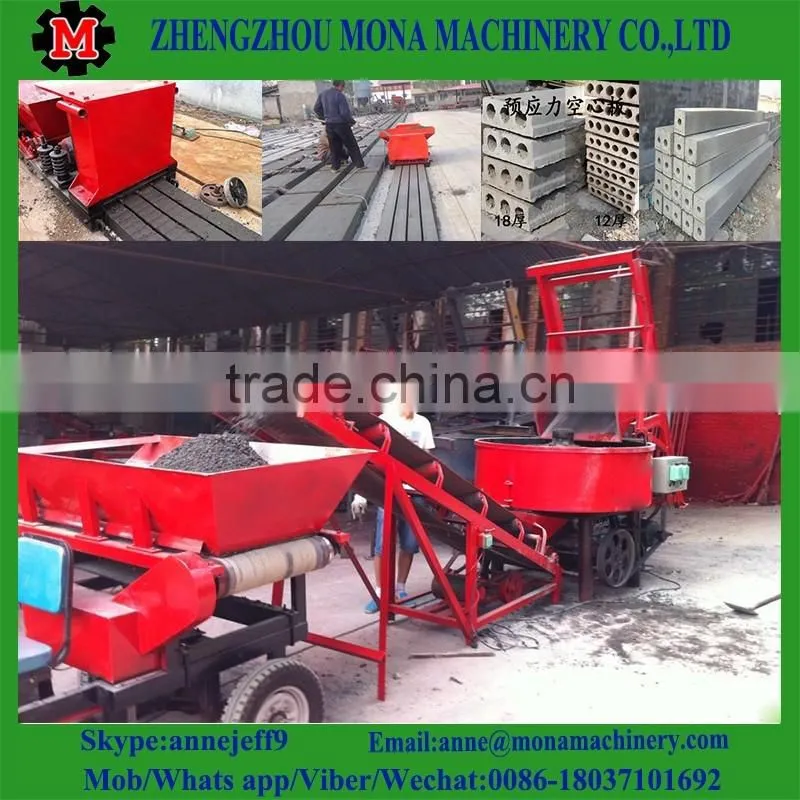

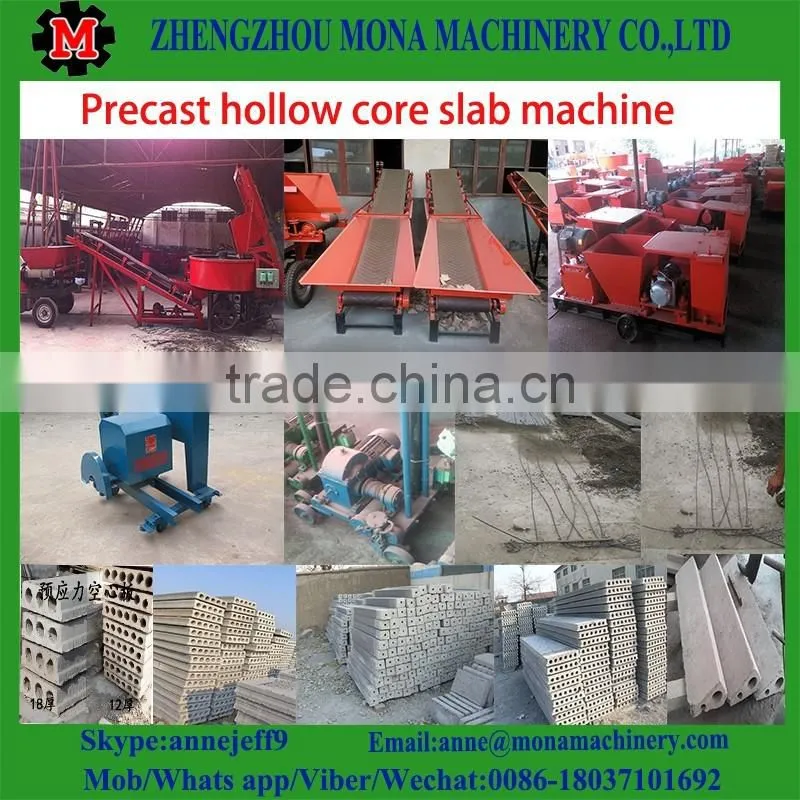

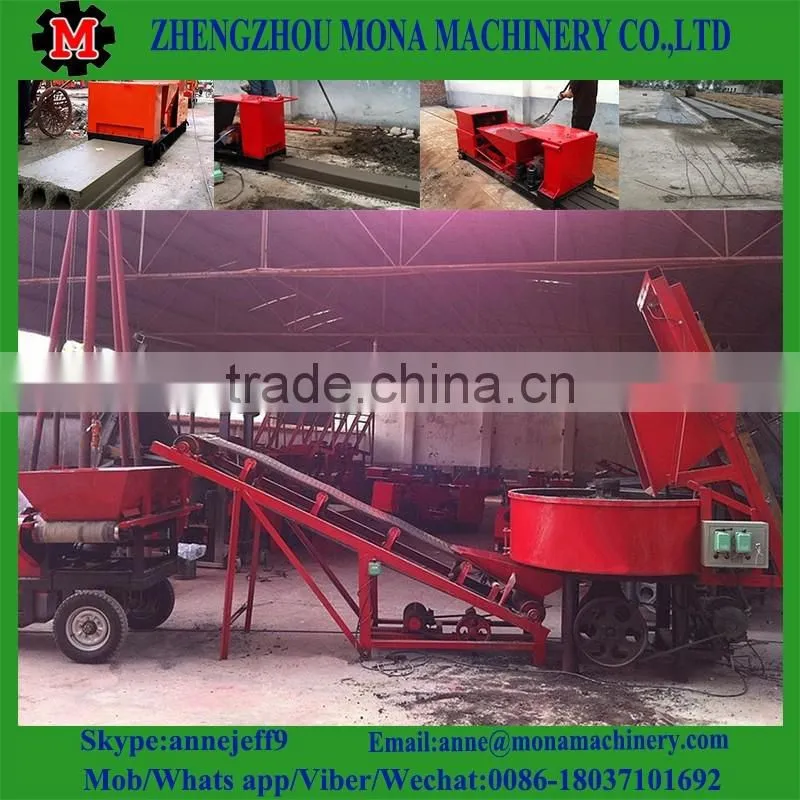

The precast concrete hollow core slab machine production line include:
1.Materials mixing system,
2.Prestressing system,
3.Materials transport,
4.Hollow core slab machine,
5.Concrete hollow core slab cutting system.
For hollow core slab machine production line, it requires 3-4 workers to operate the whole system. The curing time for hollow core slab is 2 days.
Brief introduction:

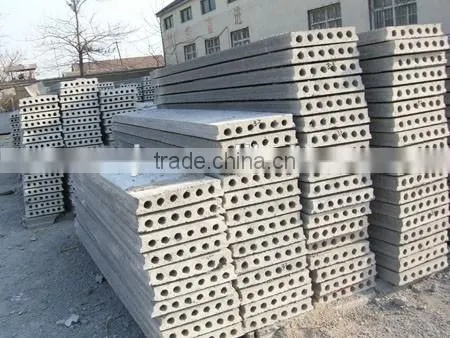

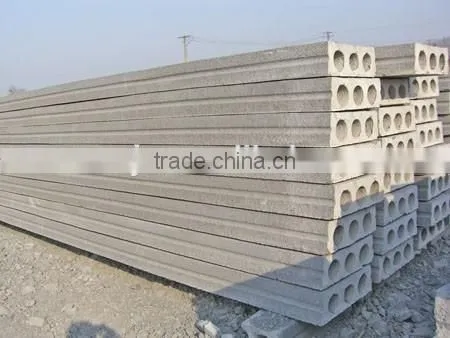

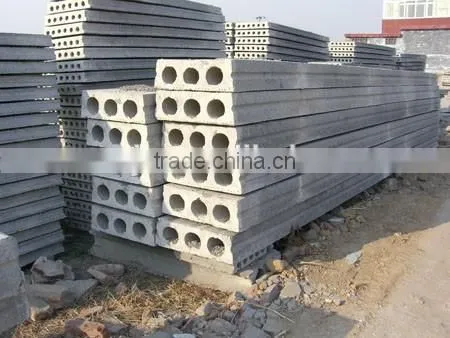

The machine is mainly used to make the floor slab of house or building. The machine is making the beam through mechanical squeezing. It uses the vibrator to compaction the slab makes the cement, sand and stone etc. fastening together.
We are having many types of the Beam Slabs Forming Machine; different model can produce different kinds of beam to make different building.
Specification
Model |
Forming speed |
Holes *dia (mm) |
Main Motor |
|
120x500 |
1.1-1.8m/min |
4* Ø80 |
4 kw |
2KW 3KW |
120x600 |
1.1-1.8m/min |
5* Ø80 |
5.5 kw |
2KW 3KW |
120x900 |
1.1-1.8m/min |
7* Ø80 |
7.5 kw |
3KW |
180x400 |
1.1-1.8m/min |
2* Ø135 |
4 kw |
2KW 3KW |
180x600 |
1.1-1.8m/min |
3* Ø135 |
5.5 kw |
2KW 3KW |
180x900 |
1.1-1.8m/min |
5* Ø135 |
7.5 kw |
3KW |
