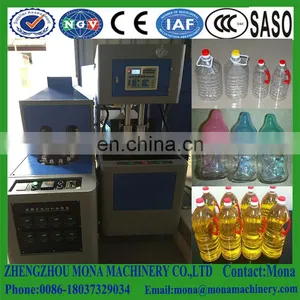

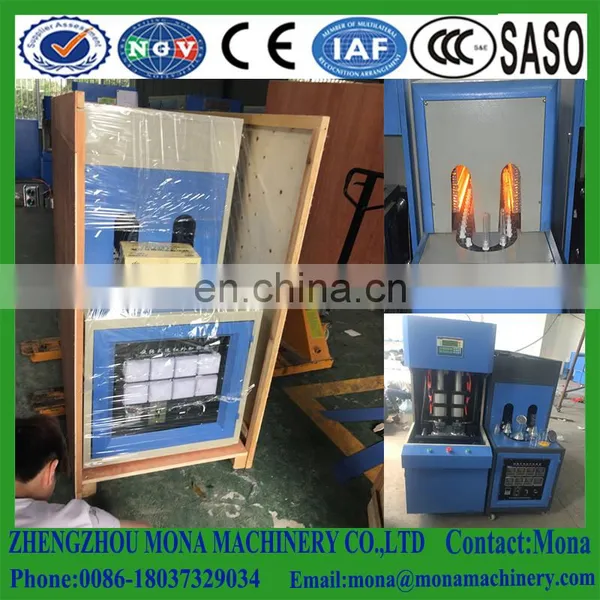

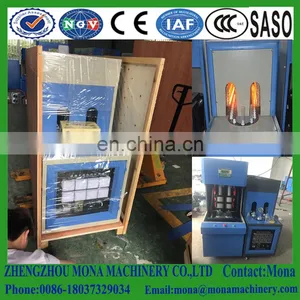

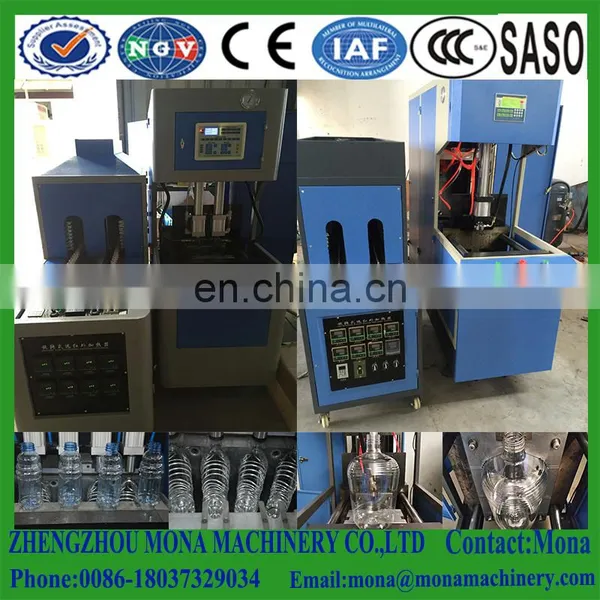

Fully automatic PET bottle blowing machine price/blow moulding machine 2 cavities 2000bph
Suitable for manufacturing a variety of PET bottles:
mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..Description
Specification:
semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from
50~2000ml. It is widely used to produce the carbonated bottle, mineral water, pesticide bottle oil bottle cosmetics, wide-mouth bottle etc.
1.Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
2.The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
3.The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
4.The machine can be operated in the step-by-step mode and the
semi-auto mode.
5.The machine is small with low investment, easy and safe to operate .
Model |
MN-3L (One Blower & One Heater) |
Clamping Force |
100KN |
Clamping Stroke |
160 MM |
Max. Stretching Stroke |
360MM |
Number of Cavities |
2 Cavity |
Theoretical Output |
900 BPH(500ml) |
Max. Mold Thickness |
300MM |
Voltage Standard |
380v/3PH/50Hz or special order |
Number of Heating Zone |
4 Sections |
Total Power (Full Loaded) |
10KW |
Max. Container Volume |
2L |
Neck Diameter Range |
18-120mm |
Max. Container Diameter |
360mm |
Max. Container Height |
380mm |
Low Air compressor |
10Bar |
High Air compressor |
30-40Bar |
Blow molding machine |
1450*600*1700mm |
Preform Heater |
1800*700*1400mm |
Net Weight |
850kgs |
Blowing mold
