professional tube mirror and hairline effect polishing machine
professional tube mirror and hairline effect polishing machine
Introduction of stainless steel square tube mirror polishing machine
Automatic Steel tube Stainless steel pipe rod polishing machine Pipe Polisher Machine is used to polish the round ss pipe/tube to get good surface finishing.
Application of stainless steel pipe polishing machine
it is suitable for all kinds of axle, member bar, pope fittings cylindrical surface grinding and polishing; long stainless steel tube, boiler tube, high precision drawn tube, ti-alloy bars; engineering machinery hydraulic lever, automobile and motorcycle shock absorber rod, valve rod, oil field pumping polished rod; polishing and grinding of various kinds of all kinds of metal/metal bar, pipe, plastic, plastic rubber tube, textile machinery polished rod and wire rod.
Characteristic of stainless steel pipe polishing machine
1.Table front hand wheel adjustment,safe and efficient.
2.Rubber wheel with imported materials,resisting high temperature and friction.
3.Face plate of table through milling has higher precision.
Specification of stainless steel square tube mirror polishing machine
Model |
MN-7 |
MN-10 |
MN-12 |
MN-23 |
Max working dia.(MM) |
1-80 |
1-120 |
1-150 |
20-200 |
Max working length(MM) |
6000 |
6000 |
6000 |
6000 |
Main roll dia.(MM) |
32 |
32 |
32 |
32 |
Max wheel dia.(MM) |
300 |
300 |
300 |
300 |
Max wheel thickness(MM) |
160 |
160 |
160 |
160 |
Guide roller dia.(MM) |
230 |
230 |
260 |
260 |
Buff whell speed(r/min) |
2800 |
2800 |
2800 |
2800 |
Guide roller speed(r/min) |
0-200(adjustable) |
|||
Working speed(m/min) |
0-10(adjustable) |
|||
Buff wheel power(KW) |
3 |
3 |
4 |
4 |
Guide roller power(KW) |
0.4 |
0.4 |
0.8 |
0.8 |
Total power(KW) |
3.4 |
3.4 |
4.8 |
4.8 |
Total weight(KG) |
320 |
360 |
420 |
460 |
Dimension (MM) |
900*700*1200 |
1000*700*1200 |
1100*800*1200 |
1200*800*1200 |
Lighting voltage(V) |
36 |
36 |
36 |
36 |

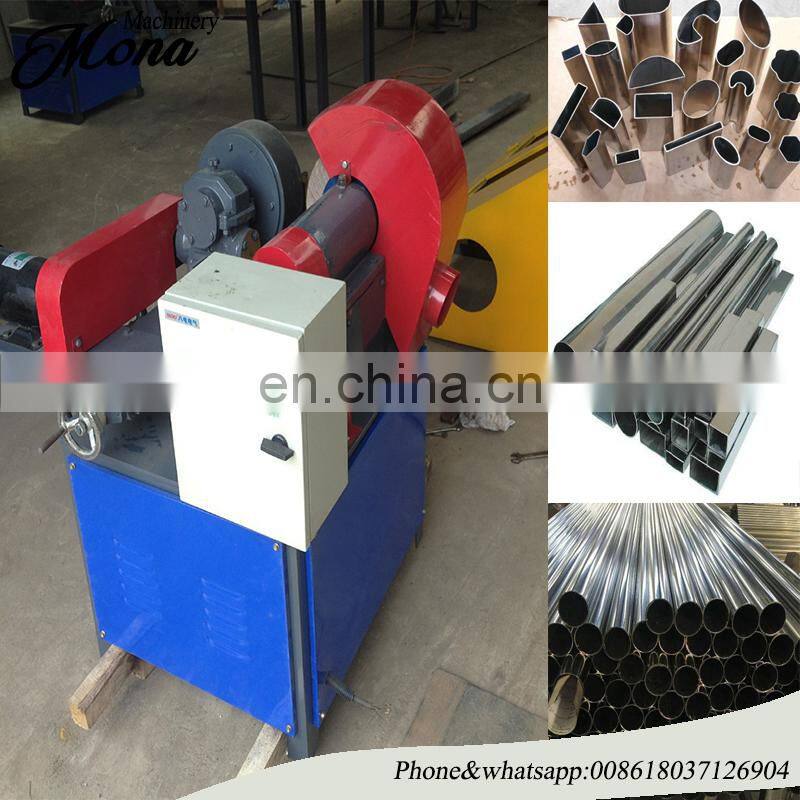

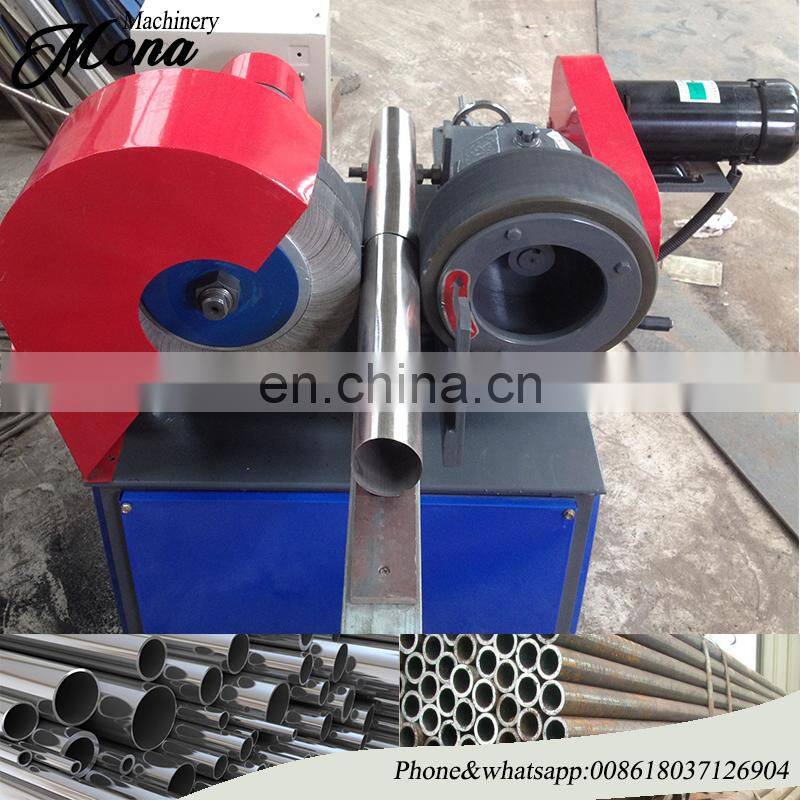

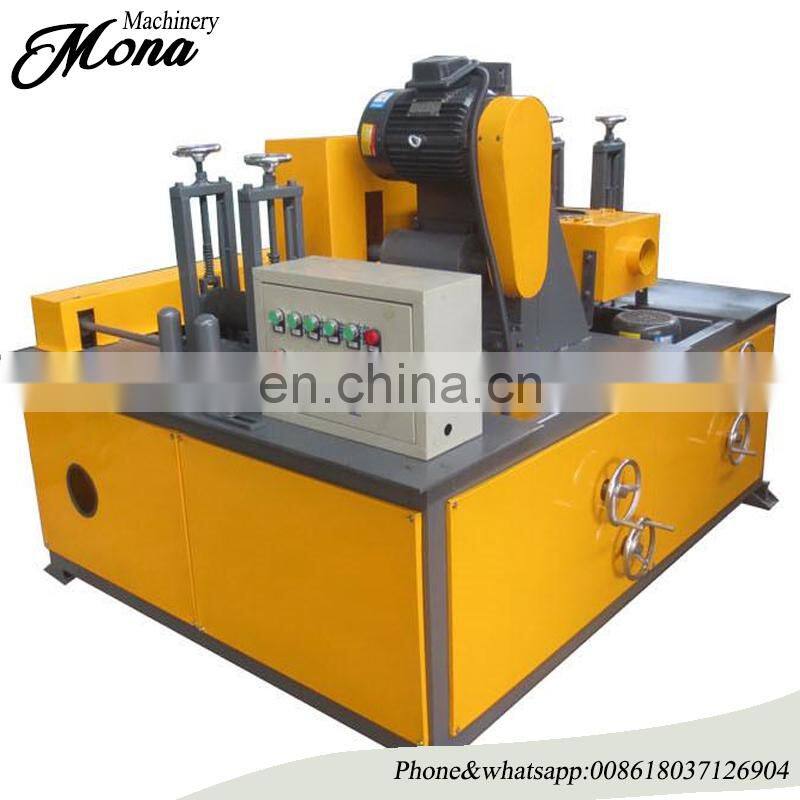

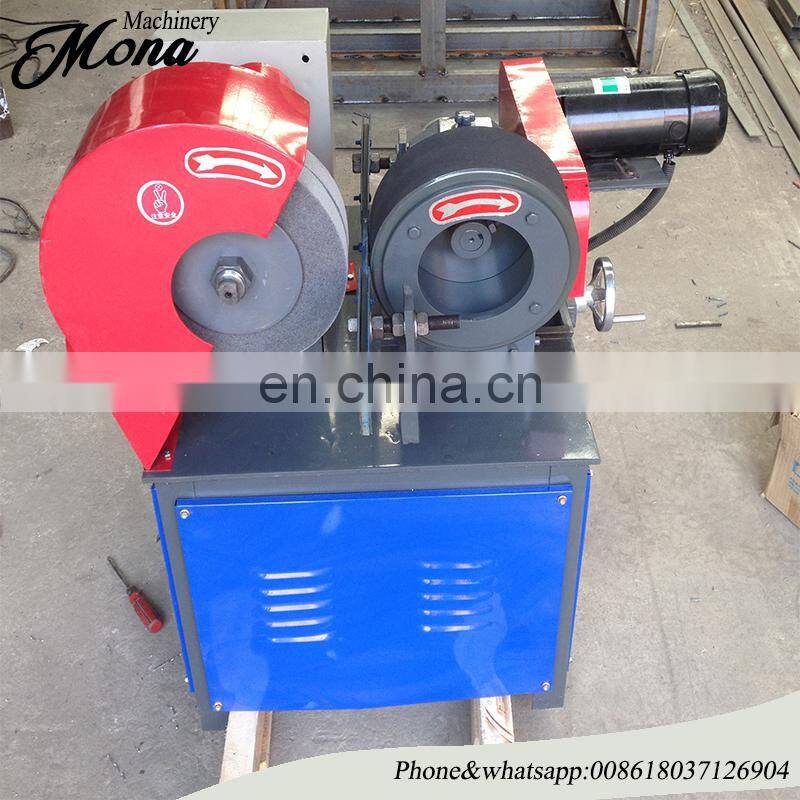

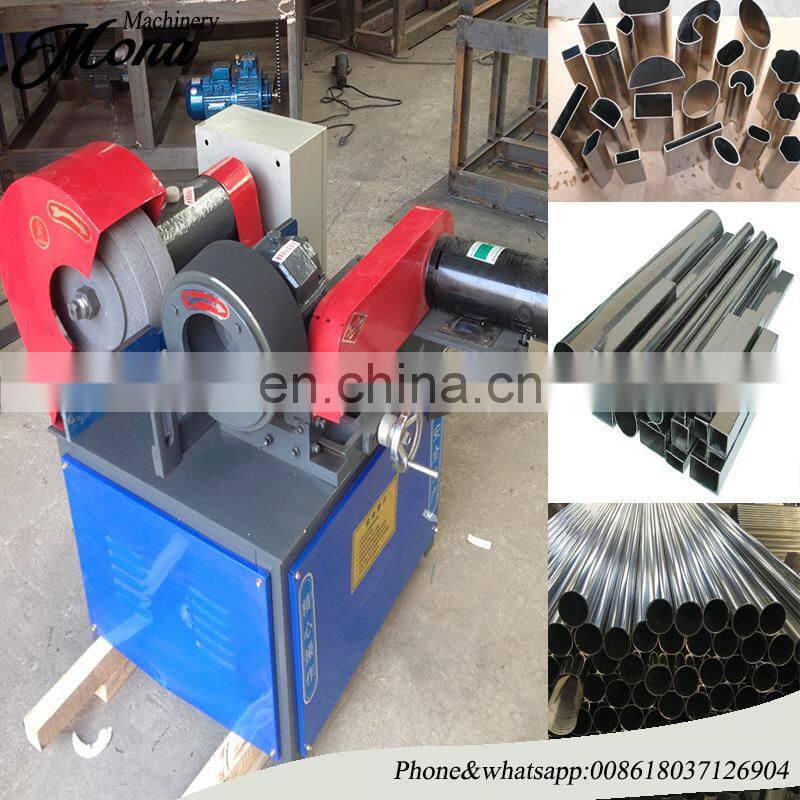

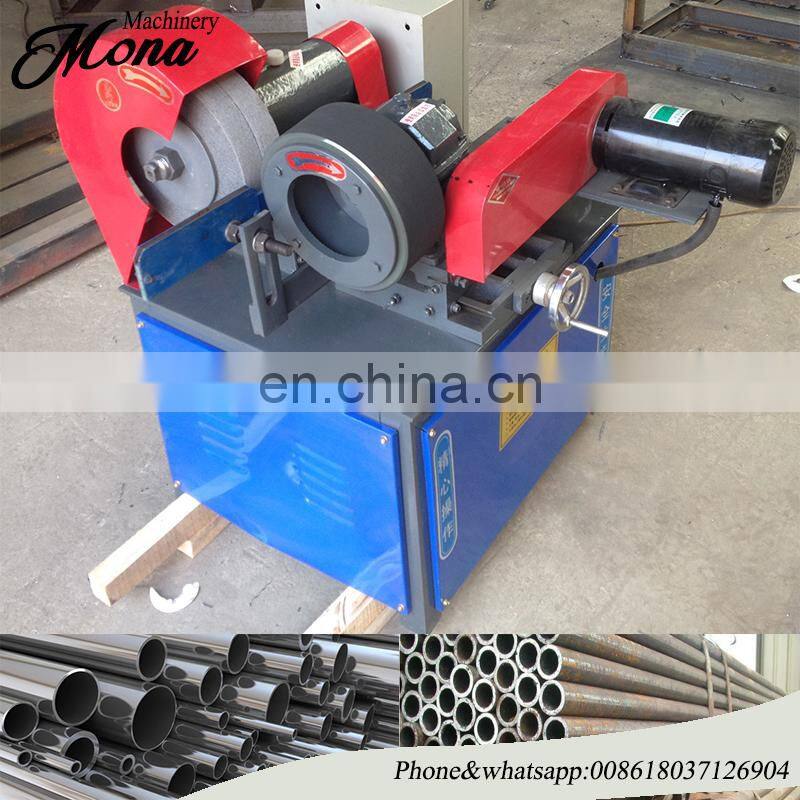

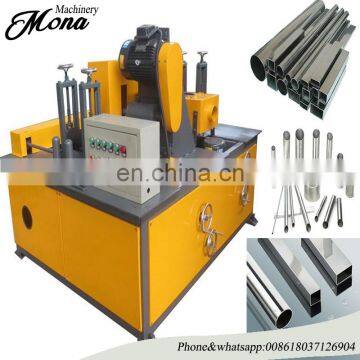

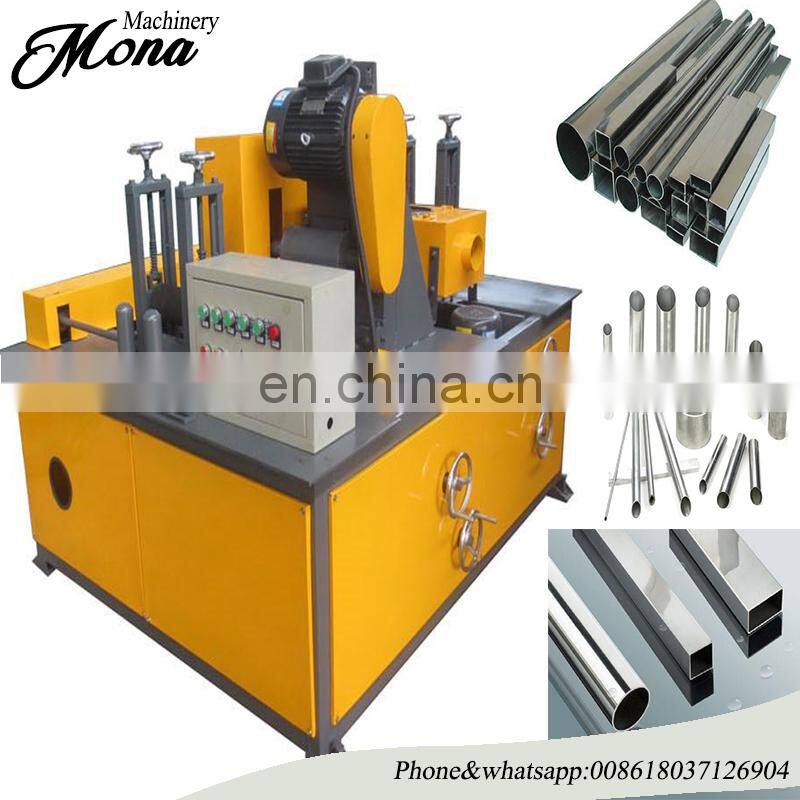

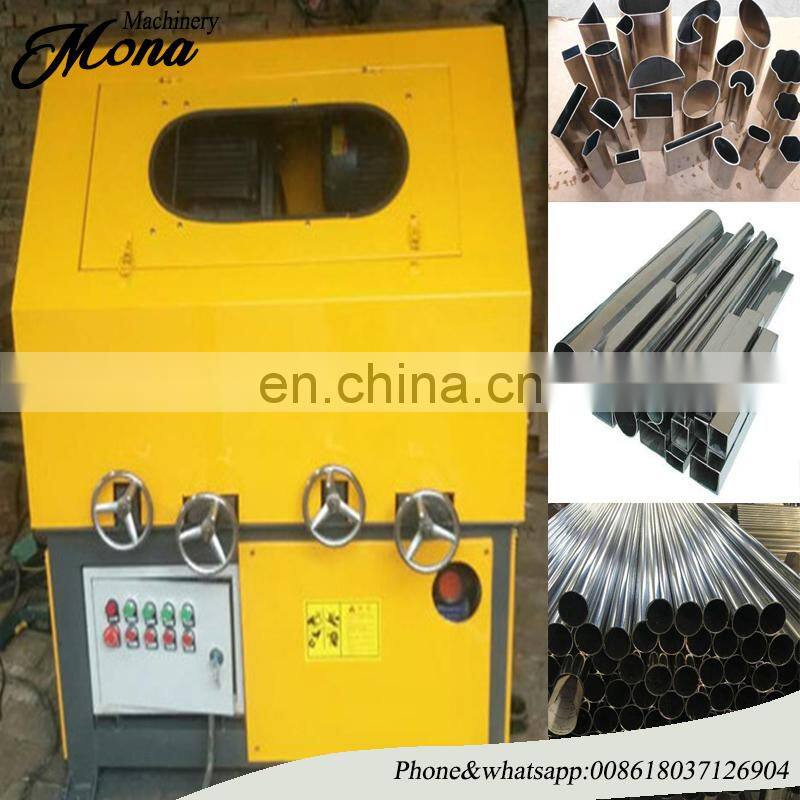

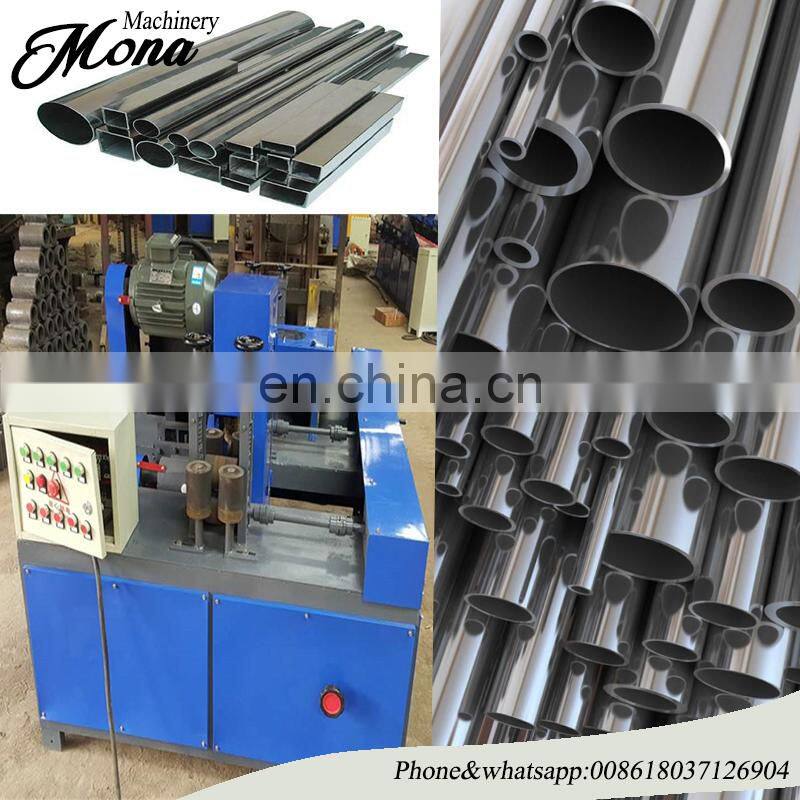

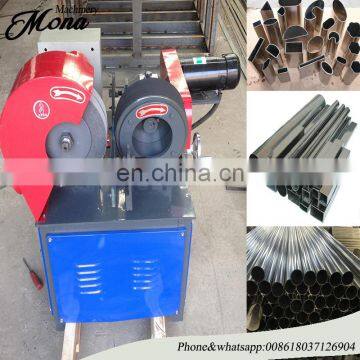

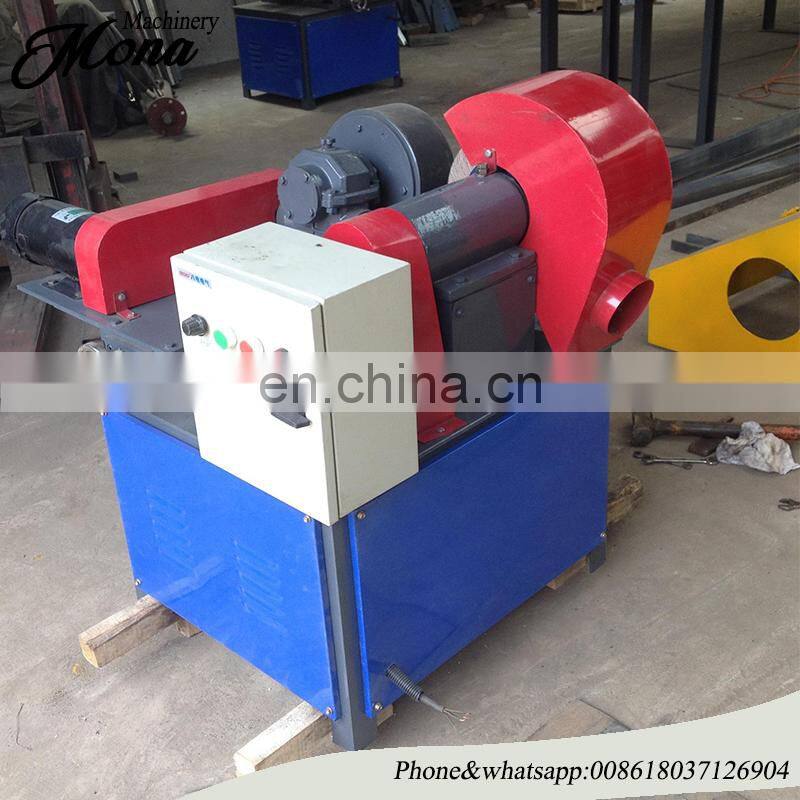

Picture of stainless steel square tube mirror polishing machine
