Hot sale diesel oil filtering machine/edible frying oil filtering machine
Introduction of centrifugal oil filter
Centrifugal oil filter machine, it is to use its from the heart of high-speed rotation, the pollution degree of the CPC, water, lubricating oil and impurities by the effect of different centrifugal force and fast separation.
Application of centrifugal oil filter
Centrifugal filter oil machine is suitable for power plants, ships, large mechanical equipment lubricating oil, heavy diesel oil and edible vegetable oil, tea oil, peanut oil purification treatment, etc. Used in power plant turbine oil processing, bypass by random run on steam turbine main tank can timely moisture, impurities in oil, oil, to improve the operation speed slow down the ageing process of oil, to ensure the safe operation of the steam turbine will play an active role and the purity of cooking oil.
Principle of centrifugal oil filter
Using mixture liquid (cloudy) with different density and mutual combination of light and heavy liquid and solid phase, and in the centrifugal field or gravitational field is obtained in different settling velocity principle, achieve separation layer or the purpose of the settlement of solid particles in the liquid. Mixture in a gravitational field or centrifugal field, with different density and mutual combination of light and heavy liquid phase and solid phase, respectively different settling velocity, thus separated layers, known as gravitational separation in the gravitational field, known as the centrifugal separation in centrifugal field.
Advantages of centrifugal oil filter
1, The head of centrifuge has high rotating speed, oil, water and impurity separation effect is good.
2, with heating and temperature control devices, and appropriately raise the oil temperature can reduce the viscosity of oil and grease, the binding force between oil-water separation efficiency is enhanced.
3, small volume, large flow, simple operation, can flow to use.
4, soft start characteristics, start, stop, or high speed, smooth and safe; Inlet is equipped with electromagnetic valve, abnormal power failure cut off oil supply oil.
5, with low temperature setting and water protection device, the former to ensure that no oil temperature below the set lower limit, purifying the water seal for some reason damaged when purify oil automatically shut down, and send out alarm signals, to prevent the oil from the outlet of pour out.
Technical parameters
Model |
Power(kw) |
Speed(r/min) |
Drum diameter(mm) |
Capacity(kg/h) |
MN-1F |
1.5 |
1800 |
430 |
200 |
MN-2F |
1.5 |
1800 |
430 |
200 |
MN-3F |
2.2 |
1800 |
500 |
300 |
MN-4F |
2.2 |
1800 |
500 |
300 |

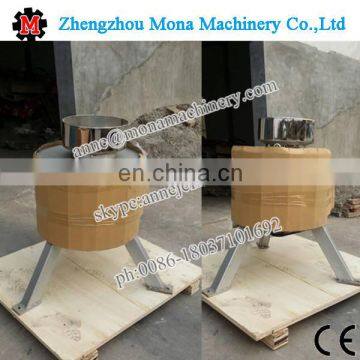

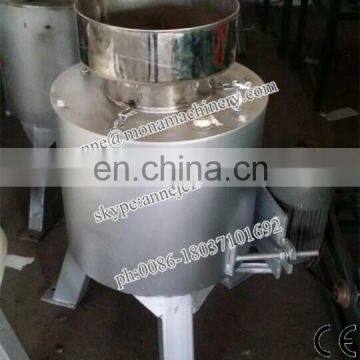

Product Shows
