Compressor snow flake ice machine/snow flake ice making machine for Fishery/Supermarket(0.5~30tons per day)
Specifications
industrial ice maker
1. Top 10
2. Ice thickness 0.18mm to 0.25mm
3. biMNer compressor
4. ice production from 0.5T to 50T
Introduction:
Irregular ice flakes with size about 40×40mm and thickness around 1.5-2.5mm.
The thin ice can be directly used for stirring and mixing refrigerated materials;
No acute edges and corners so it will not damage the surface of the cooled object;
Large contact area and fast cooling speed;
Easy to crush and mold.
Application fields
Concrete mixing plants, chemical plants, mine cooling, skiing ground, medicine, aquatic food, seafood, poultry slaughtering and so on
Feature
1.Internally-scraping ice skate can help reduce energy consumption and prevent leakage of refrigerant
2.Stainless steel materials, advanced processing equipment and heat treatment ensure the best heat transfer efficiency
3.The design of the large water receiving plate can prevent water leaking at the bottom of drum.
4.Photoelectric switch is directly installed in the bottom of evaporator
5.Direct liquid feeding and dry evaporation —— simple, safe and reliable control.
6.Integrated modular equipment installation is convenient for maintenance
Details parameters :
Model |
Ice capacity (kg/24h) |
Refrigerating capacity (kw) |
Power supply |
Total power (kw) |
refrigerants |
Dimension (mm) |
Weight (kg) |
MN-02T |
200 |
1.8 |
1P/220V/60HZ |
1.2 |
R22 |
760*730*450 |
115 |
MN-05T |
500 |
3.7 |
3P/380V/50HZ |
2.5 |
R404A/R507 |
1310*890*780 |
195 |
MN-1T |
1,000 |
6.5 |
3P/380V/50HZ |
4.8 |
R404A/R507 |
1310*970*880 |
227 |
MN-1.2T |
1,200 |
7.8 |
3P/380V/50HZ |
5.4 |
R404A/R507 |
1310*970*980 |
263 |
MN-1.5T |
1,500 |
9.8 |
3P/380V/50HZ |
7.3 |
R404A/R507 |
1310*970*980 |
364 |
MN-2T |
2,000 |
13 |
3P/380V/50HZ |
8.5 |
R404A/R507 |
1500*1095*1040 |
423 |
MN-2.5T |
2,500 |
16.2 |
3P/380V/50HZ |
9.2 |
R404A/R507 |
1500*1095*1200 |
456 |
MN-3T |
3,000 |
19.5 |
3P/380V/50HZ |
12.2 |
R404A/R507 |
1750*1190*1200 |
530 |
MN-4T |
4,000 |
26 |
3P/380V/50HZ |
16.3 |
R404A/R507 |
1700*1650*1250 |
630 |
MN-5T |
5,000 |
32.5 |
3P/380V/50HZ |
19.6 |
R404A/R507 |
1700*1650*1450 |
760 |
MN-6T |
6,000 |
39 |
3P/380V/50HZ |
23.5 |
R404A/R507 |
1700*1650*1450 |
867 |
MN-8T |
8,000 |
49 |
3P/380V/50HZ |
26.6 |
R404A/R507 |
2500*2000*1560 |
968 |
LR-10T |
1,0000 |
65 |
3P/380V/50HZ |
32.5 |
R404A/R507 |
2500*2000*1700 |
1260 |
MN-15T |
1,5000 |
95 |
3P/380V/50HZ |
58 |
R22 |
3100*2160*1865 |
2120 |
MN-20T |
2,0000 |
130 |
3P/380V/50HZ |
63 |
R22 |
3100*2160*2050 |
2860 |
MN-25T |
2,5000 |
160 |
3P/380V/50HZ |
75 |
R22 |
3100*2160*2265 |
2940 |
MN-30T |
3,0000 |
195 |
3P/380V/50HZ |
86 |
R22 |
3500*2700*2350 |
3240 |

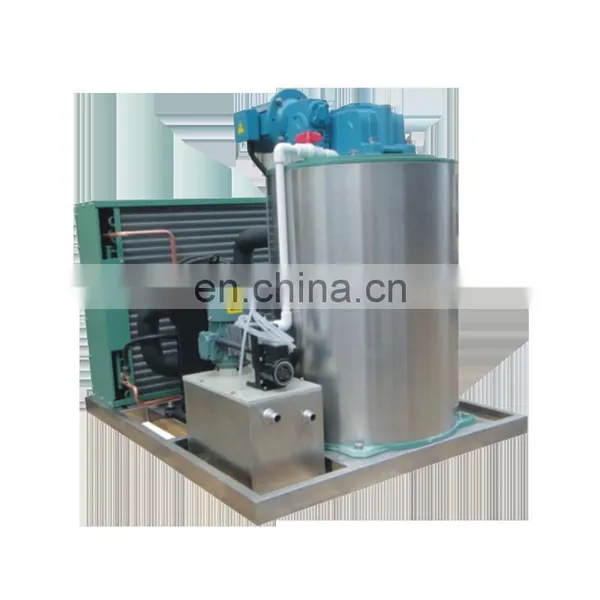

Product Shows
1.Q:Are you a factory or trading company?
A: We are a factory.
2.Q:Where is your factory located? How can I visit there?
A: Our factory is located in Zhengzhou City, China.You can fly to Zhengzhou airport directly.All our clients,
from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A:"Quality is priority. we always attach great importance to quality controlling from the very beginning to the very end.
Trade Terms:
- Payment: T/T, LC; 30% deposits; 70% balance before deliverying.
- Delivery Time: 15-60 days
