High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine

High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine photo-1
High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine photo-2
High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine photo-3
High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine photo-4
High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine photo-5
High Quality Charcoal Bar Making Machine Hydraulic Briquette Press Coal Stick Extruder Charcoal Briquette Extruding Machine photo-6
US$ 100 - 5,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MONA
Place of Origin:
Henan, China
Certification:
CE ISO
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name MONA
Place of Origin Henan, China
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty One Year
Weight 800kg
Dimension(L*W*H) Types
Condition New
Voltage 380V
Power(W) 15kw
Product Description

Feature:

1.jute sticks charcoal making machine press bamboo and wood sawdust, peanut shell particles, corn cob particles,branch,leaf to charcoal

2.the finished charcoal has advantages of big dense, small volume, good flammability and can replace wood and bunker it also be called"stalk coal"

USE:

it is widely used in keeping warm, rising the temperature of greenhouse, ordinary life fuel and factory fuel.

Note:

1.the crushed sawdust diameter is about 3-5mm

2.dried the crushed sawdust till moisture is less than 12%

Main Features

Coal and charcoal extruder machine features and benefits:

1.Coal and charcoal extruder machine absorbs the advanced technique at home and abroad.

2.Innovative design and reliable quality

3.Key parts are processed by imported high quality materials.

4.High strength and toughness

5.Temperature control, durability, adaptability


6.High production capacity

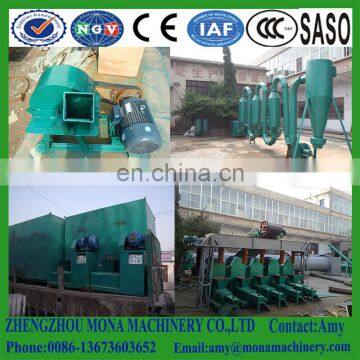

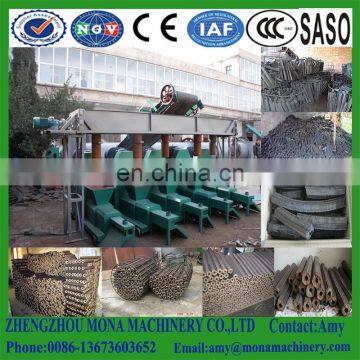

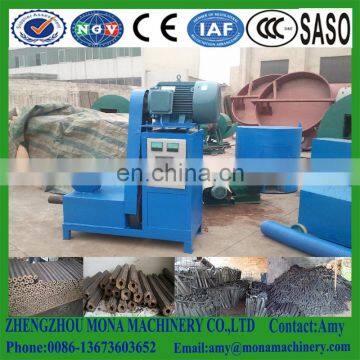

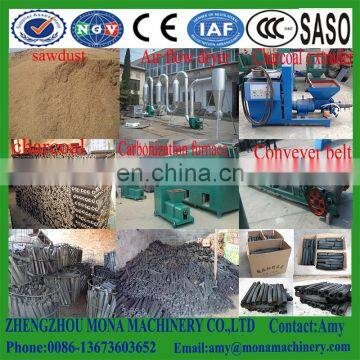

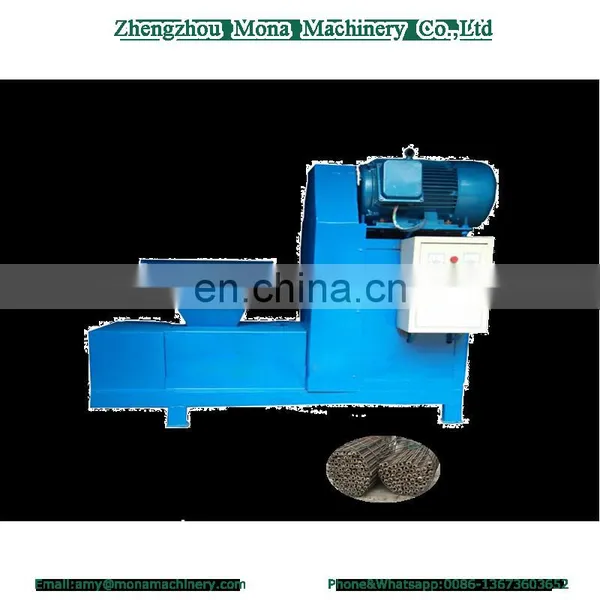

Detailed Images

1.This machine is to use sawdust, rice hulls, peanut shells, bamboo crumbs and such materialsto make fuel briquette under high temperature and high pressure.


2.The final products can be used to as fuel which can instead of firewood and coal.


3.Product outsize is 50-60mm,diameter is 15-20mm, hollow four or six Angle shape,it can also


be made into spherical, particle shape, honeycomb briquet .


4.The final product is one kind of waste of renewable energy technologies, calorific value is


higher than the similar materials of charcoal, Especially suitable for autumn and winter heating


fuel, greenhouse warming, or a common life.



Working principle


Take advantage of wood materials features and through screw extrusion,


high temperature, and high pressure, the subtle fiber combined and formed the briquette.


Production Features of jute sticks charcoal making machine

1. Raw material humidity within 8-12%.


2. Don't need to add any glue and harmful chemicals.


3. Advanced thermal drying system, excellent drying effect.


4.the machine can transform the semi-product into Clean coal (smoke-free, tasteless, non-toxic )

through high temperature,cleansing,smoke removing.


Technical Parameters of Wood Sawdust Briquette Machine

Model No.
MNBJ-1
MNBJ-2
MNBJ-3
Output
150-200kg/h
200-250kg/h
260-350kg/h
Main Motor Power
15kw
18.5kw
18.5kw
Electrical Heater Power
3x1.5kw
3x2kw
3x2kw
Dia. of Briquettes
Ø40 ~ Ø80 mm
Density of Briquettes
1.2-1.4T/CBM
Raw material
Size≤5mm    Moisture: 8~12%
Raw materials
Finished product
