Automatic wood Sawdust Pallet Block Making press froming Machine
Technical parameter for wood blocks:
The block can be made into with one hole in the center or without hole.The wood block is made with
high waterproof performance.They can be put into water for 48 hours without break.
Wood Sawdust Block Making Machine, Wood Pallet Feet Block Making Machine, Wooden Pallet Block Making Machine, Compressed Wood Blocks Making Machines
Introduction of Compressed Wood Blocks Making Machines
It is used to turn the wood waste such as sawdust, wood wools into the pallet feet which is for the transportation pallet. The final product could get the E1 grade.
The pallet feet could be solid without hole in the center, also could be hollow.
Besides, you could customise the mold for other shape wood waste compressed products.
Block sizes could be customised from 75mm to 145mm. And the usual sizes are90*90mm, 90*100mm, 100*100mm,80*90mm.
Work flow of Compressed Wood Blocks Making Machines
a, Crushing the wood, branch, wood waste into sawdust, wood shavings or wood wools (or you have the raw material already);
b, Drying the raw material to 8% (solid block) or 10%(hollow block);
c, Mixing the raw material with glue;
d, Pressing them in the wood pallet block machine;
e, First cutting the product from pallet block machine into bar;
f, Second cutting the strip into the single blocks.
Material Requirement of press wood pallet making machine :
1.The sawdust should be 3- 5mm.
2.The wood shavings should be 3-5cm.
3.The moisture content should be less than 12% .

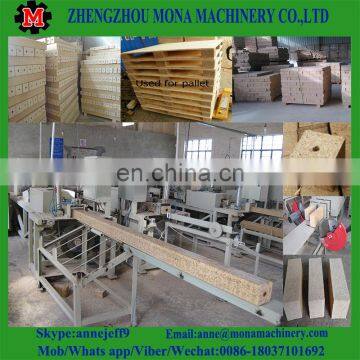

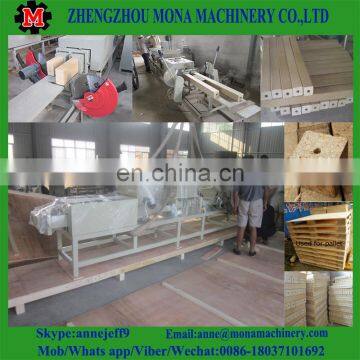

The production line
Crusher→ Dryer →The gluing machine → Wood black pressing machine → Sawing equipment
Specification of press wood pallet making machine:
|
Model (four heads) |
Dimension (mm) |
Weight (kg) |
Power (kw) |
Wood Block Density (kg/m³) |
Efficiency (m³/24h) |
75*75 |
4800*500*1420 |
1050 |
12 |
550-600 |
2-4 |
80*80 |
4800*500*1420 |
1100 |
12 |
550-600 |
2-4 |
80*90 |
4800*500*1420 |
1150 |
15 |
550-600 |
3-4 |
90*90 |
4800*500*1420 |
1200 |
15 |
550-600 |
3-5 |
100*100 |
4800*500*1420 |
1300 |
16 |
550-600 |
3-5 |
100*120 |
4800*500*1420 |
1350 |
18 |
550-600 |
3-5 |
120*120 |
4800*500*1420 |
1400 |
18 |
550-600 |
3-5 |
120*140 |
4800*500*1420 |
1450 |
19 |
550-600 |
3-5 |
140*150 |
4800*500*1420 |
1500 |
19 |
550-600 |
3-5 |
