2.5t wood pellet plant vertical ring die pellet machine completed wood pellet mill plant for sale
2.5t wood pellet plant vertical ring die pellet machine completed wood pellet mill plant for sale

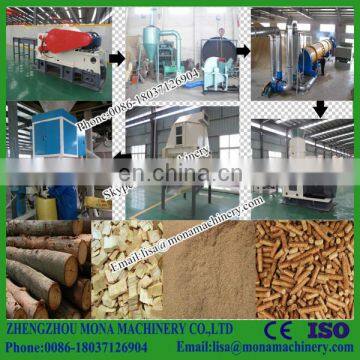

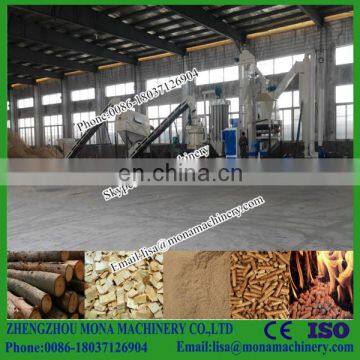

1.Crushing process, Drying process, Pelleting process, Cooling and dusting process, Packing process.
More details, as follows:
1. Crushing process for our wood pellet production line: |
Description: |
The ideal size for pelleting is 3 - 5mm. If the size of your biomass raw materials is bigger than 5mm, it should to use the Wood Chipper / Pulverizer / Hammer Mill for crushing. |
Question 1: |
What’s your raw biomass materials? Please inform us its size, such as the diameter or thickness. |
| 2. Drying process for our wood pellet production line: |
| Description: | The best moisture content / humidity to pelleting is 10 - 15%. If your raw materials is too wet, it should to use our Airflow type dryer or Rotary Dryer for drying, they can reduce the moisture from 60~70% to 10~15%. Our stove is fueled by firewood, straw,coal... Any solid fuel is ok,which can save electricity consumption largely. |
| Question 2: | What’s the original moisture content / humidity of your raw materials? |

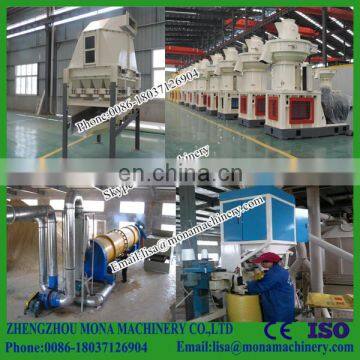

Here is the Air-flow type dryer, which is main used for the small scale pellet production line.
Here is the Rotary dryer, which is main used for the big scale pellet production line.
|
3. Pelleting process for our wood pellet production line: |

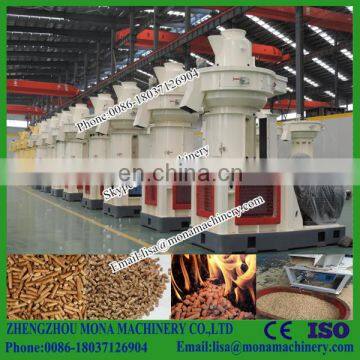

| Our MN-350 Series and MN-450 Series of Wood Pellet Machine is the professional equipment to produce the fuel pellet with high density (1.3 Ton / H), details features as follows: | |
| 1, | European Standard with CE certification; |
| 2, | Die and rollers use alloy steel as material, hardness more than 52, which lifetime can be upto 2000 hours; |
| 3, | 5 years warranty time for gearbox; |
| 4, | Automatic lubricant pump system, low consumption, 24 hours continuous running; |
| 5, | High precision gears, the automatic lubricant pump system assure the gearbox’s working stability ; |
4. Cooling process for our wood pellet production line: |
Description: |
After the pelleting process, the temperature of the wood pellet is about 60~80 Celsius, and the moisture content of the wood pellet is around 10%, so we need use Cooler to reduce about 3~4% moisture, such this the wood pellet is easy to packing and store. |
| 5. Packing process for our wood pellet production line: |
Description: |
After cooling, the wood pellet will not directly enter into the fuel process, avoiding the wood pellet affected with damp. The packing process is necessary. In this process, we assemble our domestic best Semi-Auto Packing Machine to you. |
Question 4: |
For the sealing process, we have the sewing sealing and heat-sealing, which one are you prefer? If you use the plastic bag to packing, we recommend the heat-sealing machine to you; If you use the paper bag, woven bag, jute bag, the sewing machine is ok for you. |
