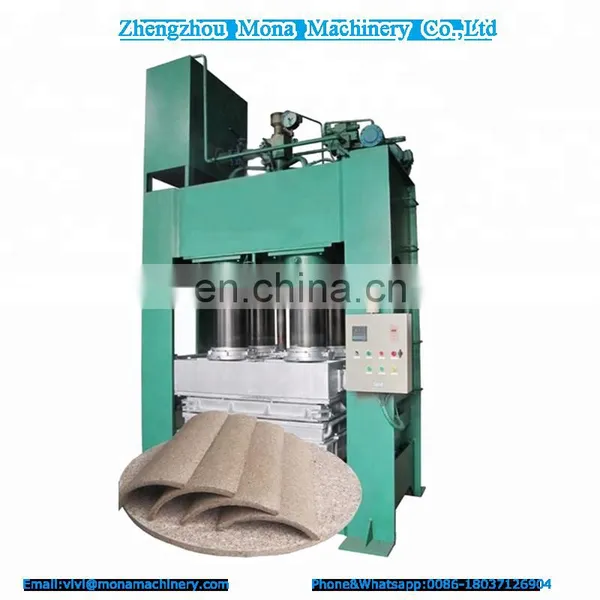

Hydraulic press Wood pallet making machine, View wood pellet press machine, Mona wood pallet Details for Hot Press for sale
Introduction of wood block pallet machine/sawdust pallet making machine
This wood pallet hydraulic press machine is used to make wood pallets. It used the waste of the wood, bamboo, shavings, and waste materials from the furniture factory, the materials through crushing, drying and adding glue then hot press to be the pallet( also named: cardboard)
Technical Parameter of wood pallet press machine/sawdust pallet making machine
Model |
MN-800 Wood Pallet Making Machine |
Pressure |
800Ton |
Hydraulic oil cylinder diameter |
320 |
Hydraulic oil cylinder quantity |
4 |
Feeding way |
Manual feeding |
Lifting oil cylinder |
Diameter 100*2 |
Heating temperature |
150degree |
Main motor |
7.5kw |
Pallet density |
850kg/cubic meter |
Capacity |
120-150pce per day(16hours) |
Time for enough pressure |
35 seconds |
Time for one piece |
450seconds |
Pallet size |
Pallet size less than 1300*1250mm (can make 2-3 letter on mould) |
Weight |
120000kg |
Dimension |
2300*1300*4300mm |
We can make mould according your design. | |
Features of wood pallet press machine/sawdust pallet making machine
1.High temperature, high pressure can press the materials into pallet one time, standard size, without metal materials in the pallets.
2.Pallets can be used in export package, free fumigation, and free quarantine; do not need any test before export.
3.Reasonable design of the structure, high performance.
4.According the European standard, biodegradability.
5.Water proofs, insect prevention, and protection against termites, antisepticises and do not easy to burn.
6.Strong bearing capacity,no deformation and can be reused.
7.Can be forked from four directions, easy to use the pallets.
8.Can be store in bulk, save room, easy to be transported.
9.Light weight, beautiful shape.
10.Can bearing dynamic load:3000kg ,bearing static load:1500kg
11.As size 1200*1000*14mm one pallet need about:4kg glue ,and 15kg materials, final weight will be 18.5kg.
FAQ
1.How many pallets can be produced per day?
Answer:A set of Mould Compressed Wood Pallet Press Machine can produce 150-180pcs/day.
2.Can your company produce other machines of the pallet production line?
Answer: Yes,we can produce the whole production line of the compressed wood pallet.
3.The machine you produced is full-automatic or semi-automatic?
Answer: We can produce both kind of machine.
4.What kind of machines are included in the whole production line?
Answer: Wood Chips Crusher Machine,Rotor Sawdust Shavings Dryer,Carbon Steel Material Tank,Glue Mixing Machine,Mould Wood Pallet Press Machine and Heat Conduction Oil Furnace.
If you are interested in our wood sawdust pallet and various machines , please contact us freely at any time.
