MN218 wood drum chipper shredder/wood drum chipper machine for sale
MN218 wood drum chipper shredder/wood drum chipper machine for sale
Application of drum log chipper shredder machine
Drum wood chipper is widely used in wood forestry, wood industry and pellet production industry. It is a main machine in these industry.
Wood chipper is hot sell in the south Asia, high capacity, low consumption. have flat conveyor which can move wood logs into chipper with changeable speed , speed can be controlled by electrical cabinet.
Wood chipper wear part is three rotary grind knives and one fixed knife, our grind knives has long time working , very convenient to repair and operate.
Operation is very easy and highly working efficiency. This drum wood chipper would be the best choices for dealing with wood scraps.
Introduction of drum log chipper shredder machine
The wood chipper is used for processing wood logs or tree branches into 20mm-40mm wood chips for various wood products industries and plants. Known as wood cutting machine, it belongs to wood processing equipment series. Wood chipper is widely used in particleboard mill, medium or high-density fiberboard factory, biomass power plant, wood pellet plants and other industrial production factories.
The raw material is wood logs, timber harvesting, processing residues (such as branches, twigs, planks, logs cores, waste veneer, etc.), it can also be used for cutting non-wood materials (such as sugar cane, reed, bamboo, etc.).
1. drum wood chipper is our product which specially designed for round logs, square blocks.
2. drum wood chipper big wood logs into wood chipps or pieces,
the thickness of last pieces is 1.5mmto3mm,longth and width is 10 to30mm.
3. drum wood chipper has flat conveyor which can move wood logs into chipper with
changeable speed , speed can be controlled by electrical cabinet.
4. drum wood chipper wear part is two rotary grind knives and one fixed knife,
our grind knives has long time working , very convenient to repair and operate.
5. drum wood chipper operation is very easy and highly working efficiency.
The working principles of the wood chipper shredder
The main parts of the drum wood chipper include: machine rack, the blades rollers, double feeding rollers, the transmission belt and the hydraulic buffer system. The blades roller in the crushing room is connected with the electric motor by the transmission belt. The raw materials is clamped and transmitted to the crushing space by the feeding system, then crushed by the fast rotating blades on the roller frequently. The larger wood chips will be processed for several time before discharged from holes on the screen. At last, the wood chips with flat incision, even length, uniform thickness are discharged.
Parameter of Drum Wood Chipper
Model |
MN-215 |
MN-216 |
MN-218 |
Feeding Hole Size(mm) |
160*400 |
230*590 |
300*680 |
Qty of Cutter(blade) |
2 |
2 |
2 |
Knife Roll Rotating Speed(r/min) |
590 |
590 |
650 |
Wood Chip Size(mm) |
30 |
30 |
30 |
Capacity(t/h) |
3—5 |
8—10 |
14—18 |
Mainframe Power(kw) |
4-45 |
4-55 |
4-110 |
Feeding Power(kw) |
(2.2-3)*2 |
(3-4) *2 |
(4-5.5) *2 |
Oil Pump Motor(kw) |
1.5 |
1.5 |
1.5 |
Conveyor Motor(kw) |
3 |
3 |
4 |
Weight(kg) |
2990 |
5030 |
7000 |
Dimension(mm) |
1470*1550*970 |
1800*1900*1210 |
2200*2150*1500 |

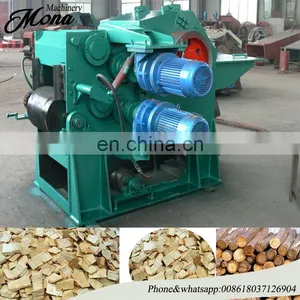

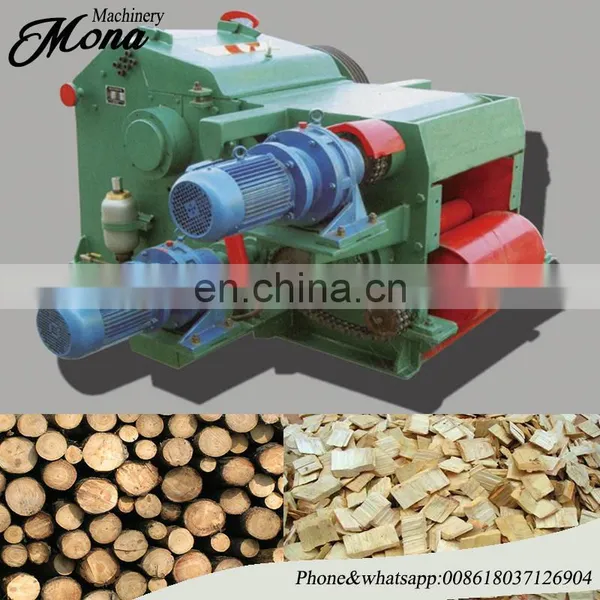

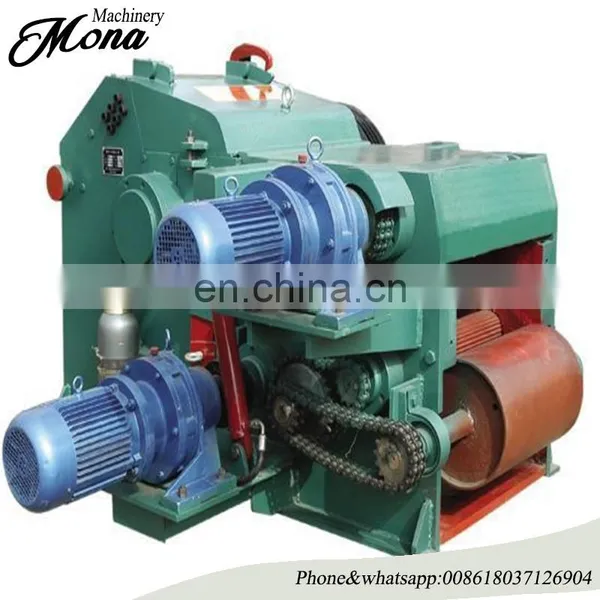

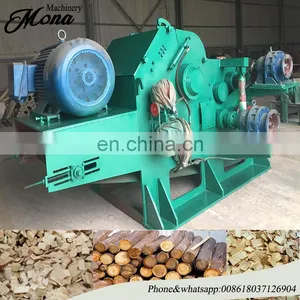

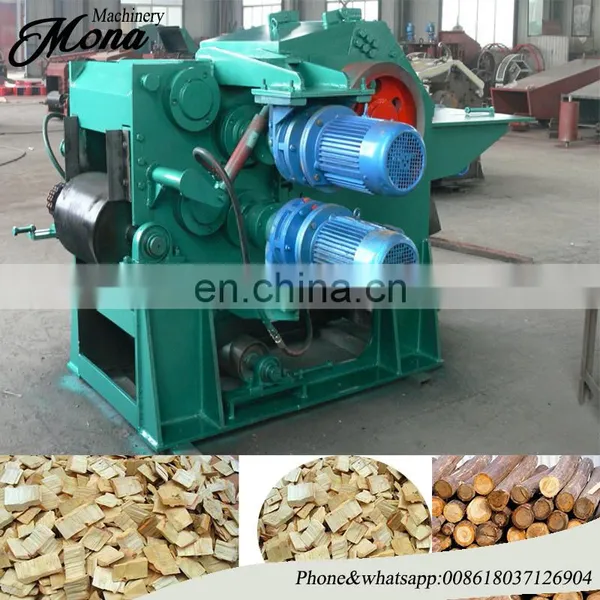

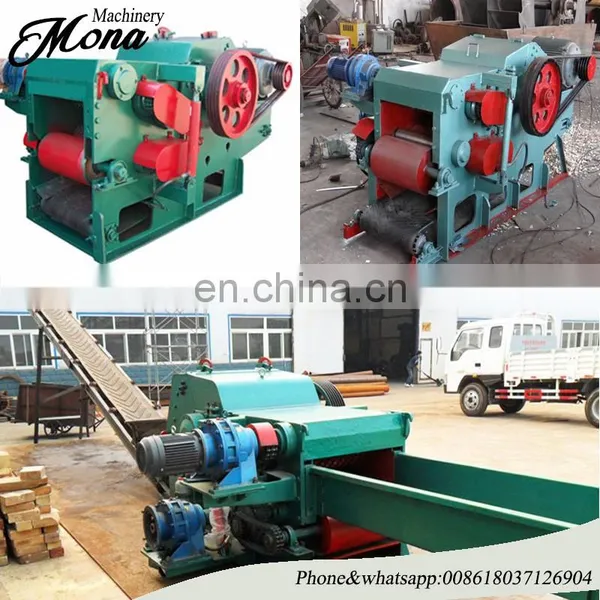

Picture of Drum Wood Chipper
