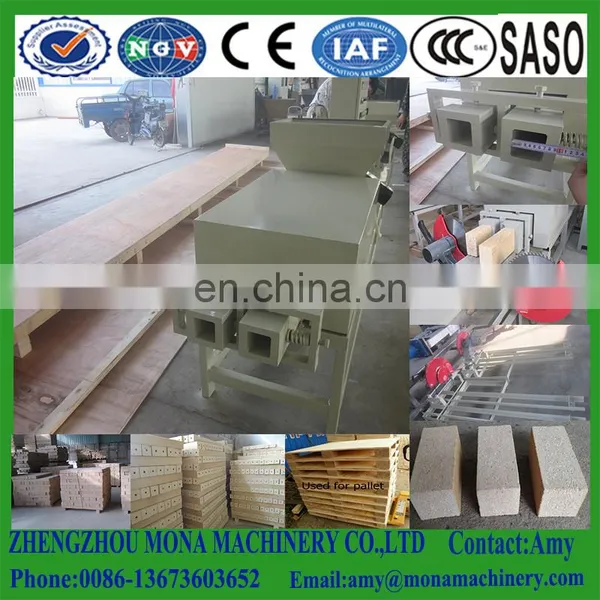

Different Size Wood Sawdust Board Making Machine/wood Working Wood Block Press Machine / Hot Press Wood Pallet Block Leg Machine
US$ 100 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MONA
Place of Origin:
Henan, China
Model Number:
MN
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Density and High Capacity Coal Briquetting Press Machine/Good Power Mineral Powder Ball Press MachineUS$ 100 - 5,000MOQ: 1 Set -
BBQ Dry Powder Coal/charcoal Briquette/ball Press Machine for SaleUS$ 100 - 5,000MOQ: 1 Set
-
Charcoal Making Machine | Charcoal Briquette Machine | Coconut Shell Charcoal Briquette MachineUS$ 100 - 5,000MOQ: 1 Set
-
Biomass Wood Briquette Maker/sawdust Briquette Extruder Machine/biomass Charcoal Rods Making Machine Production LineUS$ 100 - 5,000MOQ: 1 Set
-
High Heat Efficiency and Best Quality Jute Stick Charcoal Powder Briquette Making MachineUS$ 100 - 5,000MOQ: 1 Set
Brand Name
MONA
Place of Origin
Henan, China
Model Number
MN
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Product Description
Mainly use wood sawdust and shaving or other scrap wood as raw materials,mixing with glue
in an certain ratio,extruding wood block by hot press heating pressure.The final wood block can be used as tray and foot pier replaced log.
The pallet foot pier hot press motor drives oil pump to produce h hydraulic thrust, electric heating panel are heat source and mold molding to extrude wood shavings block.

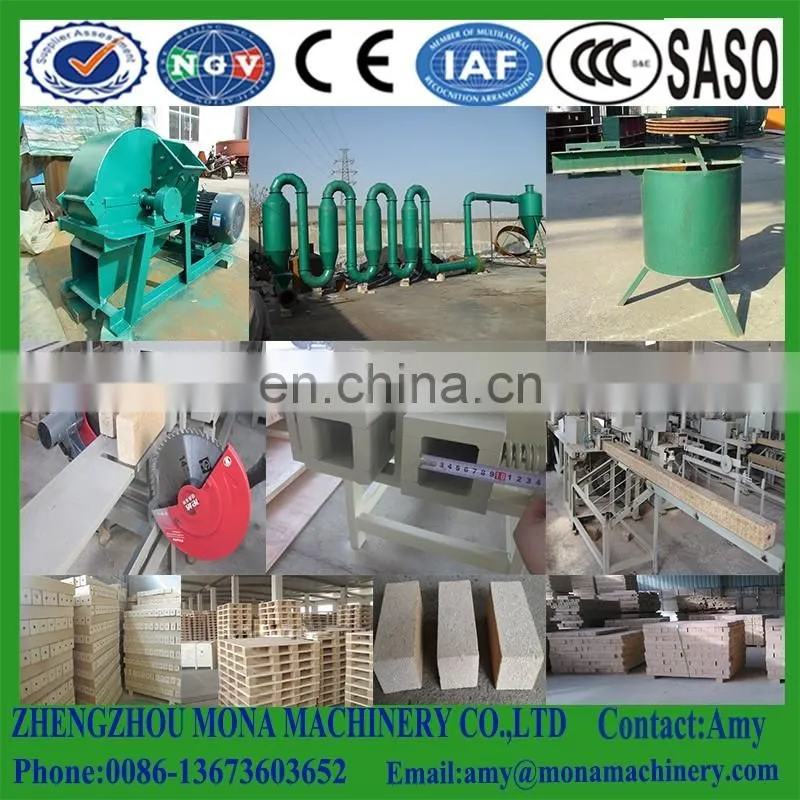

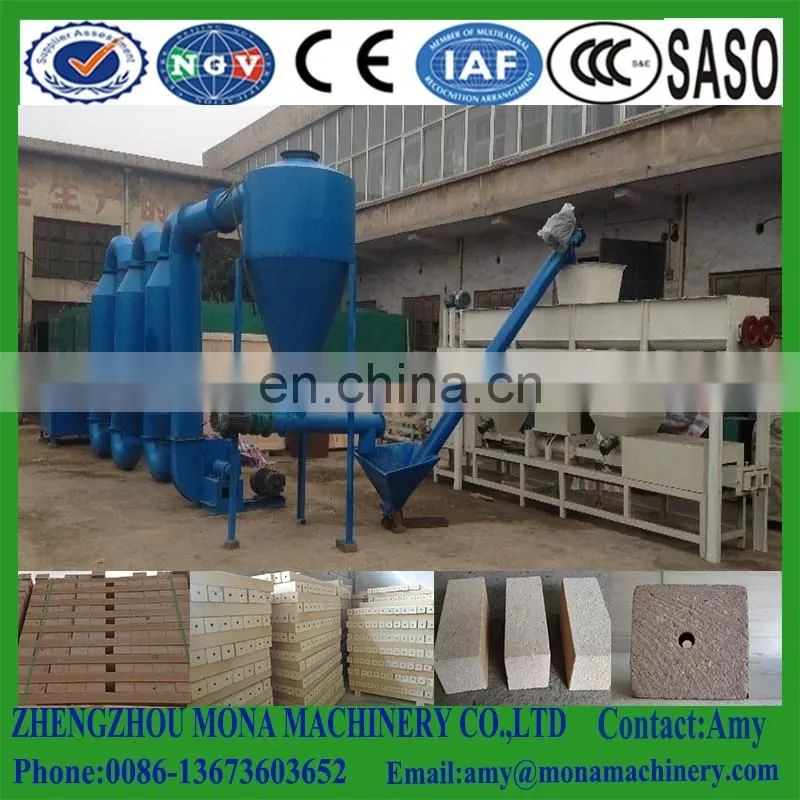

Whole process needs four machines: crusher, dryer, glue blender and hot press machine.
Whole process needs four machines: crusher, dryer, glue blender and hot press machine.
crusher→ dryer →glue blending → wood block pressing machine → sawing equipment

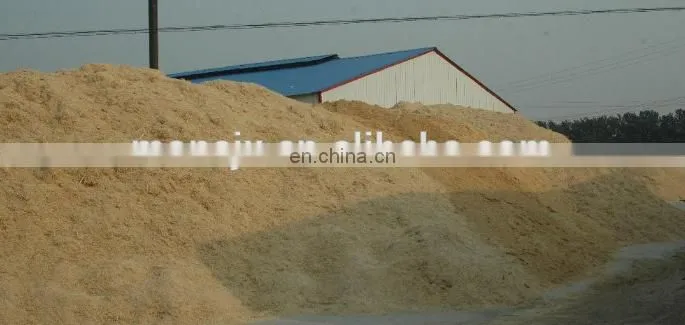

Raw materials
wood shavings, sawdust and the other wood waste material
Detailed Images

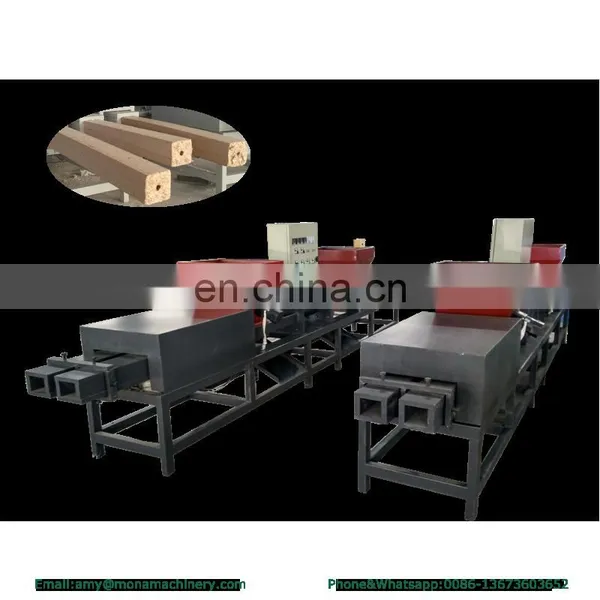

Introduction of Wood Pallet Block Making Machine

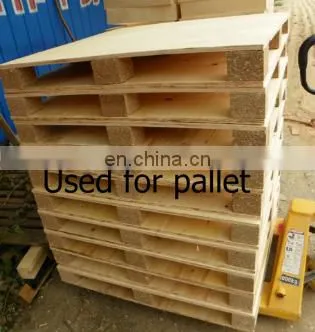

It is used to turn the wood waste such as sawdust, wood wools into the pallet feet which is for the transportation pallet. The final product could get the E1 grade.
The pallet feet could be solid without hole in the center, also could be hollow.
Besides, you could customise the mold for other shape wood waste compressed products.
--Usage: This wood sawdust block making machine is used to make blocks/feet/log for pallets, which is can be used in packing industry and logistics(transportation);
--Raw Material: Sawdust, wood shavings, wood chips, waste wood, used pallet and so on,also the glue(urea formaldehyde resin);
--Block Size: Mainly 75*75,80*80,80*100,80*120,90*90,100*100,100*115,100*120,90*120, 145*145 etc and can be customized.
Parameter of Wood Block Press Machine
Diameter of pallet hole: 18-28mm
Inside combination Power: 1.76Mpa
Vertical bear power: 1950N
Horizontal bear power: 1600N
Stabdard bearing pallet size : 100*1455mm inside diameter : < 32mm and 145*145mm inside diameter <40mm

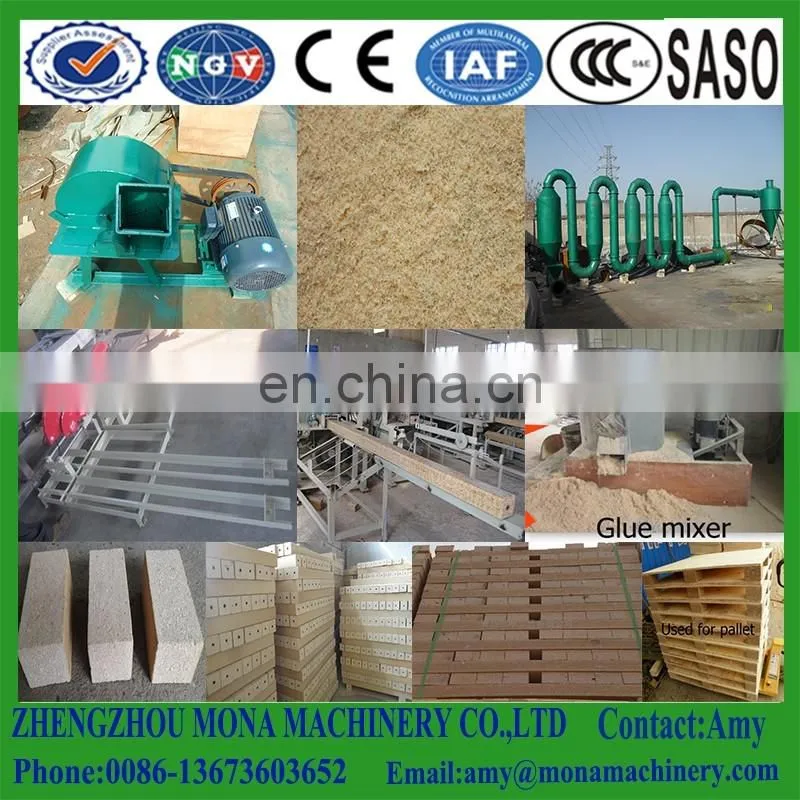

Work flow of Wood Pallet Block Making Machine
a, Crushing the wood, branch, wood waste into sawdust, wood shavings or wood wools (or you have the raw material already);
b, Drying the raw material to 8% (solid block) or 10%(hollow block);
c, Mixing the raw material with glue;
d, Pressing them in the wood pallet block machine;

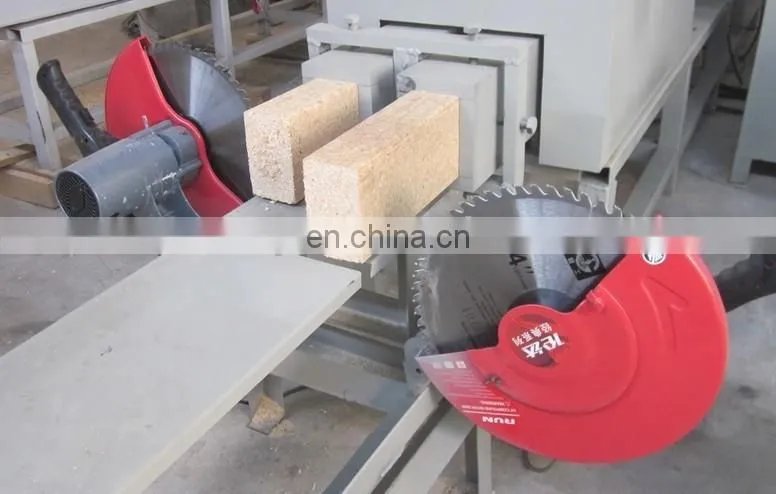

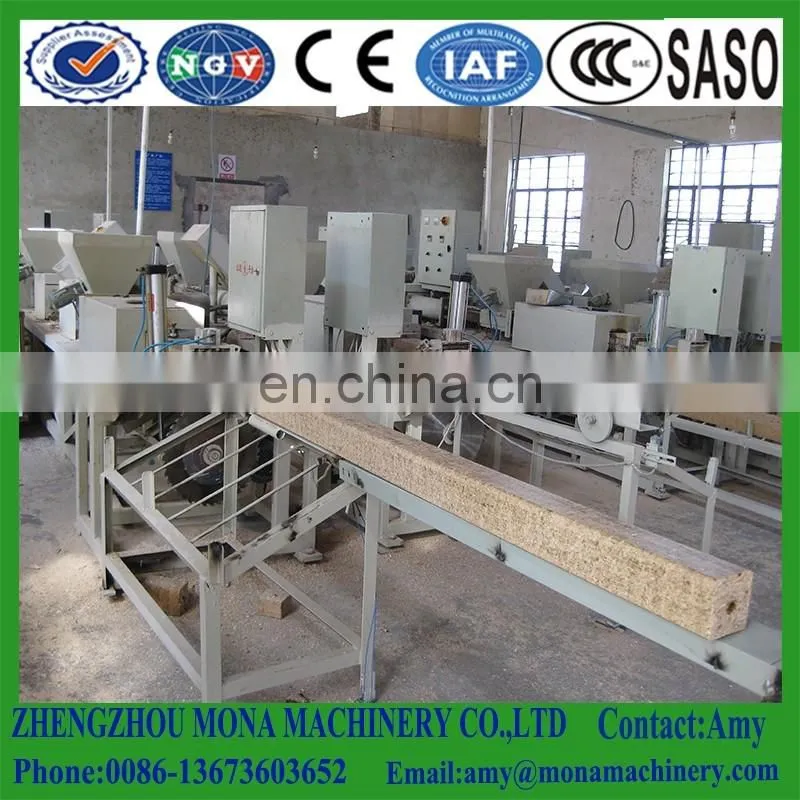

e, First cutting the product from pallet block machine into bar;
f, Second cutting the strip into the single blocks.

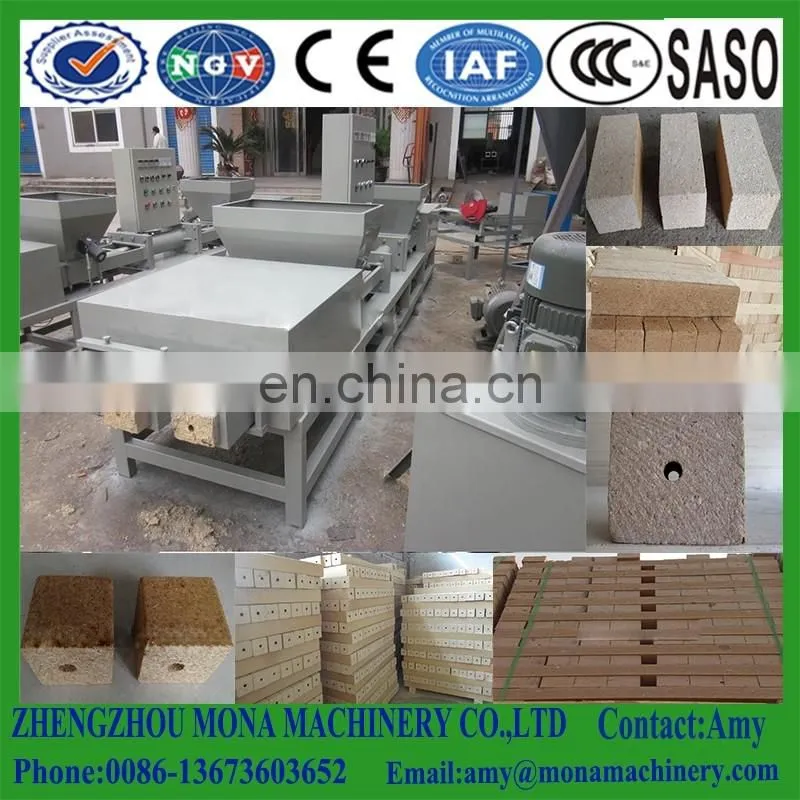

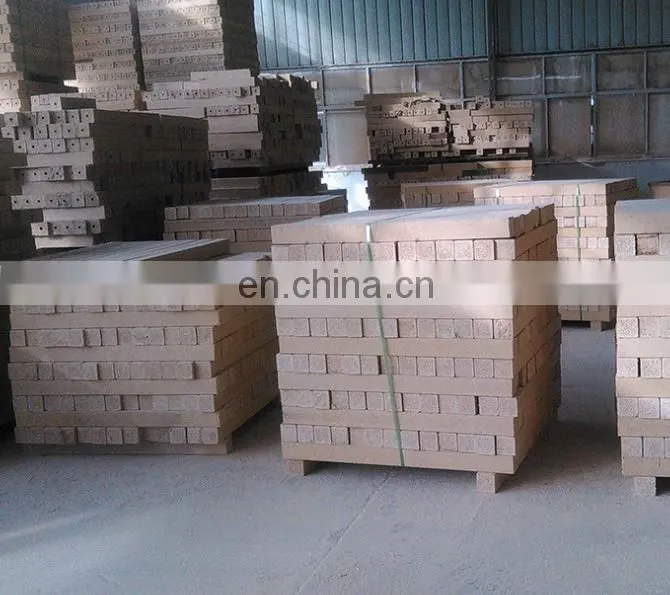

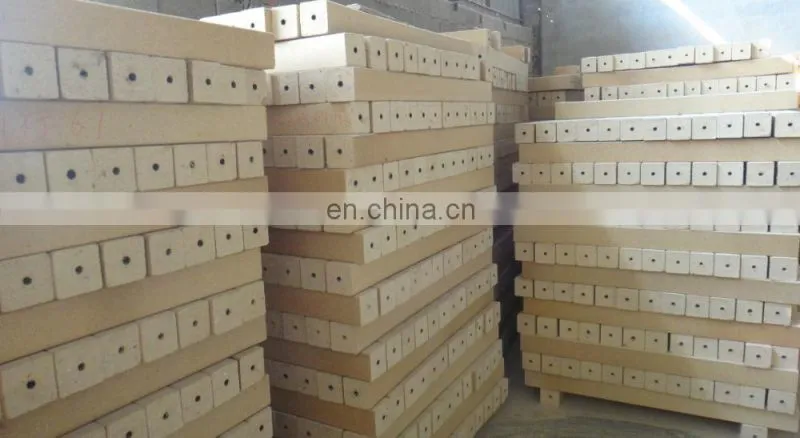

Finished product
More details of Wood Block Press Machine

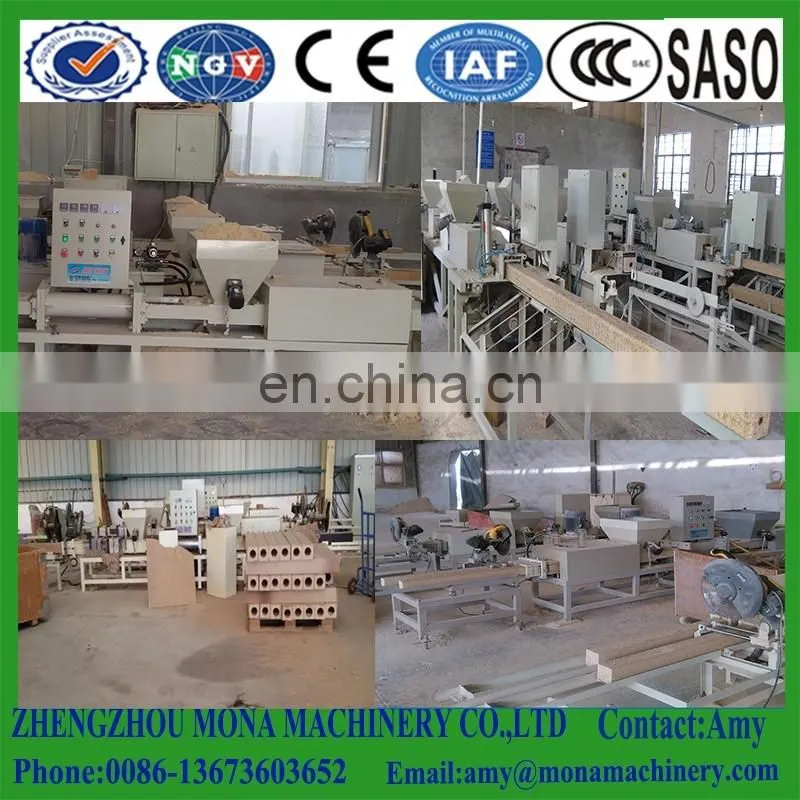

Equipment disposition: Generally four hot presses are a production line, must provide the dryer, the gluing machine, grinder each. (dryer, gluing machine, grinder and so on supporting facility customer buys in addition).
Personnel disposition: Production personnels 4-5 person of/classes. And raw material sort (screening), drying, spreads 2-3 people, looked that machine 2 people (a person may look at two machines).
Production cycle: After confirmation order form and payment advanced payment, 40 super craft manship factory delivery.
Equipment investment recoupment period: 10— 12 months.
Our factory is responsible for the technical training, and provides the consummation the post-sale service.

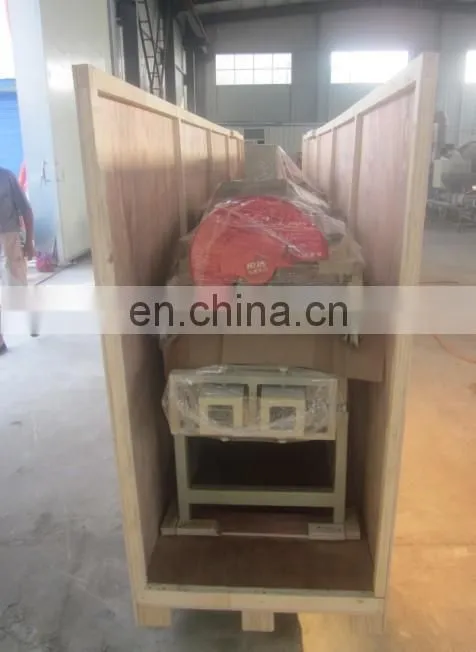

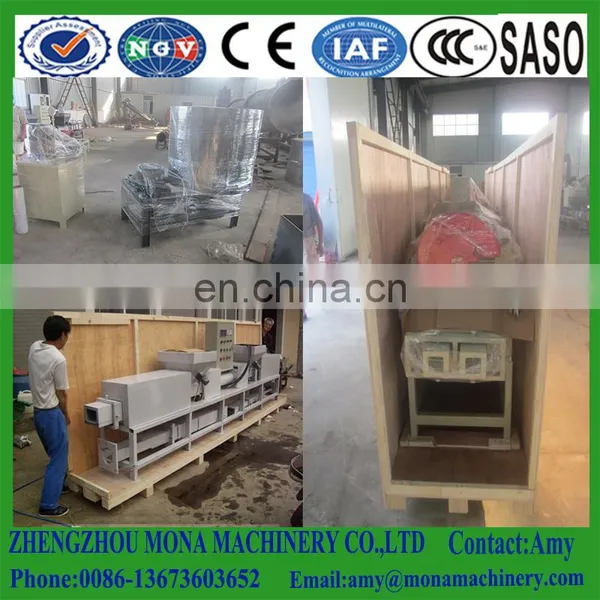

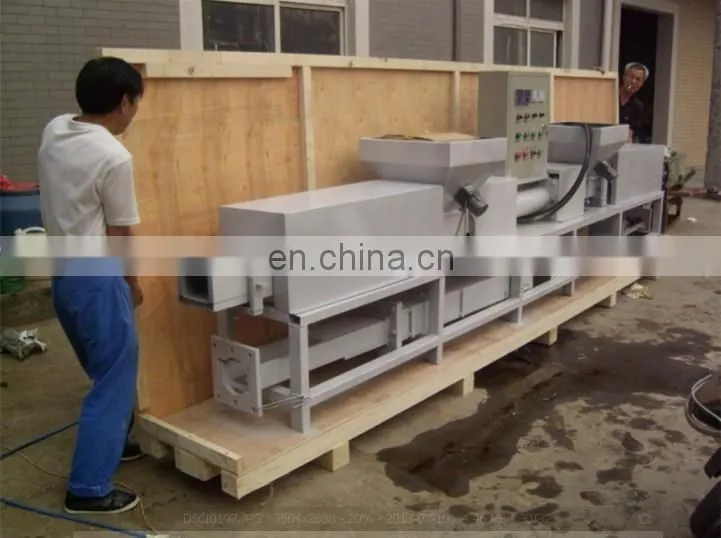

Packing & Delivery
