Circular Saw Cutting Machine | Wood Panel Multiple Blade Saw Machine
Circular Saw Cutting Machine | Wood Panel Multiple Blade Saw Machine
Mob/whatsapp/wechat:008613673603652
Email:amy(at)
Skype:monamachine

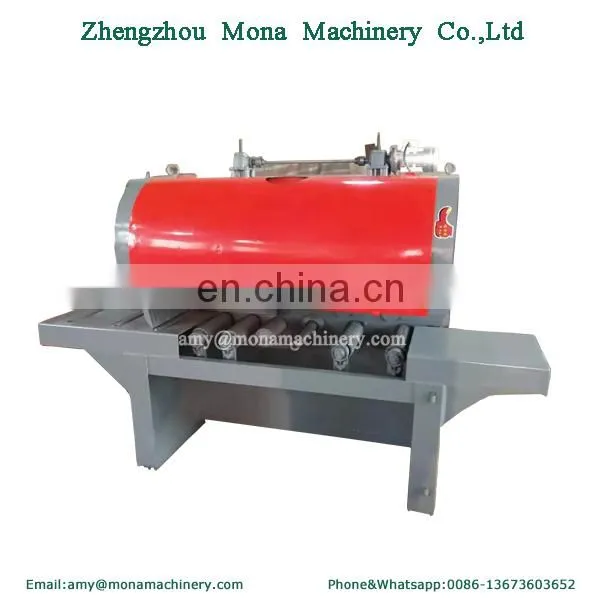

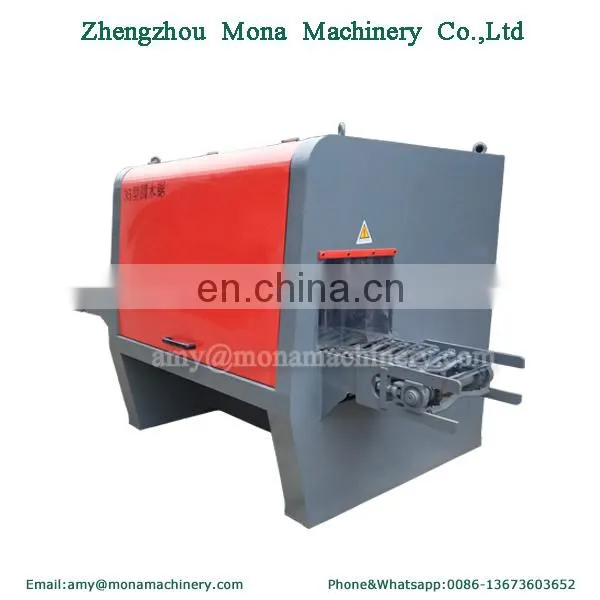

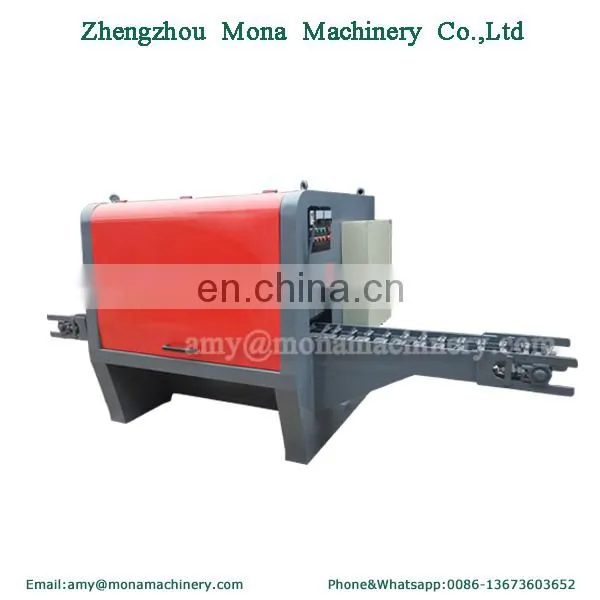

Introduction of Multiple Circular Blade Rip Wood Log Saw Machine:
1.High precision cutting,cutting size can be adjusted according to your need,can cut the sheet or wood smoothly at once time.
2.Efficiency of the machine is four times of ordinary band sawing machine,this table saw operate simply and safe,the worker do not need grasp special skill,it can save cost of technician.
3.Rack Mould use large thick square tube,can cut and form at once time.resist deformation and has high precision.
4.Stable saw use special spindle and imported bearing.the steel is after heat treatment.balance degree is high and has long service life.
5.The table saw has reasonable structure,beautiful appearace,high efficiency and energy saving,very suitable for joinery board,wood line,plate material processing.
Application of Multiple Circular Blade Rip Wood Log Saw Machine:
1.Solid wood processing factory, round log sawmill line.
2.Company which want to lower the labors, greatly improve the speed, which want to achieve the factory automatic. Who want to replace of the traditional band saw machine.
3.Loggers who want to recover lumber from small diameter stems efficiently in a job site.
Main Features of Multiple Circular Blade Rip Wood Log Saw Machine:
1.This product uses the chain feeding, stable
2.Pneumatic sprocket pressure material, reliable performance,
3.Increased user-friendliness, extremely low-maintenance
4.Sustained versatility and flexibility
5.Complete function test before leaving our factory
6.Reduce the worker, Save material, Cost-effective
7.The output plate with smooth surface, no need sanding
Technical parameters of Multiple Circular Blade Rip Wood Log Saw Machine:
MODEL |
MNZY--180 |
MNZY--220 |
MNZY--260 |
MNZY--300 |
MNZY--400 |
||
Min.Width |
80mm |
100mm |
120mm |
150mm |
200mm |
||
Max.Width |
180mm |
220mm |
260mm |
300mm |
400mm |
||
Min.height |
80mm |
100mm |
120mm |
150mm |
200mm |
||
Max.height |
170mm |
210mm |
240mm |
280mm |
400mm |
||
Min.length |
500mm |
600mm |
700mm |
700mm |
1200mm |
||
Max.length |
continuous feeding |
||||||
Total Power |
18.5+18.5KW |
22+27kw |
30+37kw |
37+37kw |
55+55kw |
||
Overall dimensions |
4000*1600*1500mm |
4200x1450x1500mm |
4200x1600x1600mm |
4200x1700x1750mm |
4800x2300x1760mm |
||
Feeding speed |
Infinitely Adjustable speed
|
||||||
Weight |
1800kg |
1880kg |
2270kg |
2600kg |
3100kg |
||
Any questions and inquiry you are warmly welcome :
