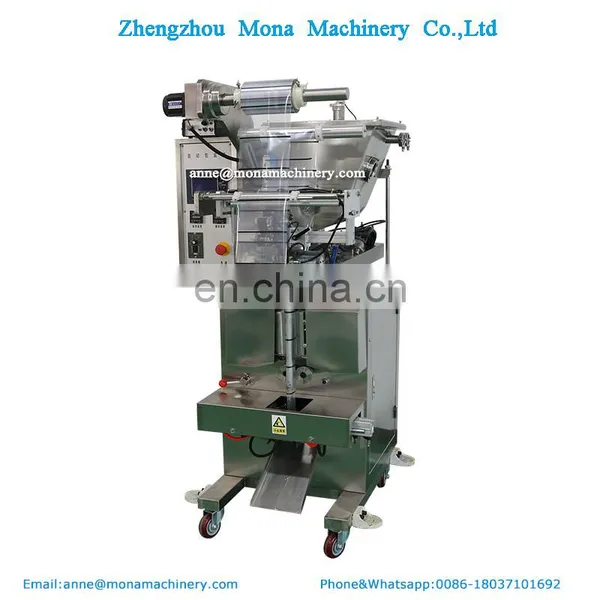

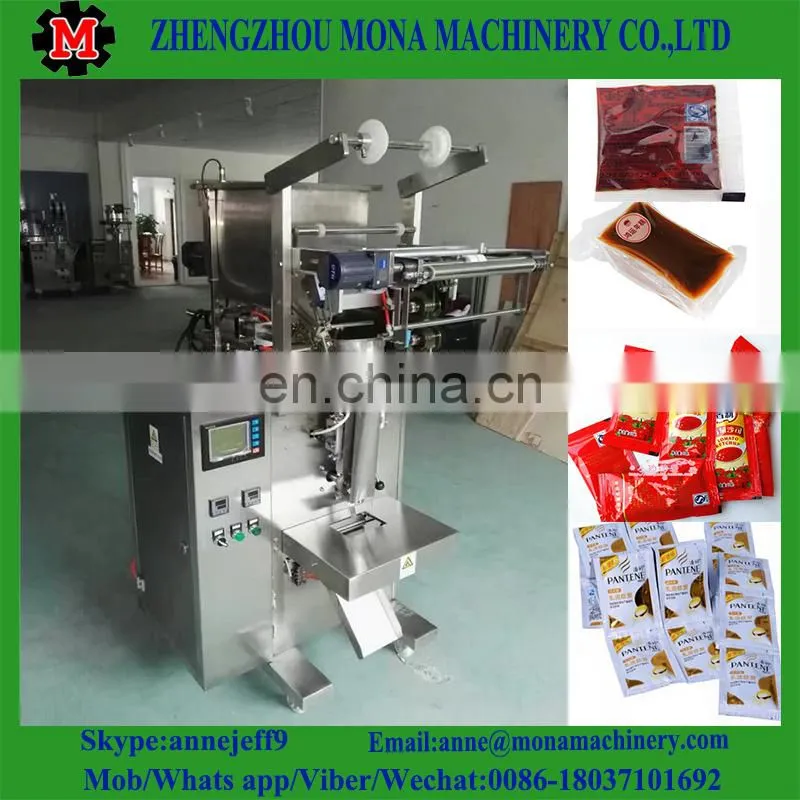

Help CenterSmall Cream Liquid Cheese Sauce Packing Machine Automatic 3/4 Sides Sealing Sauce Packaging Machine
Related Products
-
New Product Automatic Honey Ketchup Pouch Packaging Machine Tomato Chili Sauce Packing Machine PriceUS$ 3,180 - 20,000MOQ: 1 Set -
Competitive Price Automatic Agaric Mushroom Packing MachineUS$ 100 - 14,300MOQ: 1 Set
-
Plastic Roll Garbage/ Trash Bag Making Machine for SaleUS$ 1,000 - 8,800MOQ: 1 Set
-
High Quality 2g 5g 8g 10g Automatic Sachet Stick Sugar Packing MachineUS$ 100 - 5,500MOQ: 1 Set
-
China Electric Motor Lipton Triangle Tea Bag Packing Machine, Nylon Tea Bag Packing MachineUS$ 100 - 5,500MOQ: 1 Set
♦ Main features♦
· Automatic finish weight, bag-making, filling, sealing, cutting, counting, lot number and so on;
· Automatic optimization match with all the program, this system can alternate the length of bag , thus it is easy and precise;
· It has color system controller, so can get the complete trade mark design;
· The length of bag and bag packing speed can be alternated by chain-gear stepless speed various without change spare part;
· Unique in-laidembedded mouth sealing, enhanced hot sealing mechanism;
· Intelligent temperature control by temperature controller, featuring fine heat balance, fine packaging performance, low noise, clear sealing texture and strong sealing performance ;
· The whole body steel is stainless steel ;
· The machine adopt liquid /paste pump to weight and measure , the seal type is four sides seal ;
· Control system is Mitsubishi PLC from Japan .
♦ Scope of application ♦
This machine is suitable for automatic packaging of paste or liquid of foods , medicine and chemicals , such as pesticide , shampoo ,body foam bath lotion , facial cream , ingredient oil , fruit sauce , tomato ketchup and honey and so on .
♦ The features of full-automatic ♦
· Speed Limitless: Packing speed shall be limitless arranged in some extend , which can best match the steps of making bag/fulfilling/sealing and cutting .
· The bag length can be set free at some specific range , using the “Bujin” Motor , making bags stable and the speed can be controlled .
· The process of bag-made can reach self-automatic inspecting/location/sealing and cutting when there are the signs of color locating in packing films .
· Equipment itself has the function of self-diagnosing and error-pointing .
· Controlling temperature by high exact PID , which ensure the sealing quality of different packing film material and will be in more stable of hot sealing .
· Conveniently operate and repair , because of its intermittent simple structure .
· Common using available :Packing 1-50g in a bag by changing the measure glass .
· Automatically print production lot No. , and adding the easy-tear type convenient .
· Using the superior steel parts , quality to be stable , noise to be bitter , error rate to be low and service life to be long .
· Good appearance , smart and unique , the steel of contacting material is stainless steel or poisonousless and corrosion resistance plastic , which reaches the packing requirement of food and medicine ( say GMP ) , especially available in the industries of food , medicine .
♦Specification♦
Model |
MN-320Y |
MN-420LY |
MN-520LY |
MN-720LY |
Measuring Form |
Pump |
|||
Measuring Range |
50~100ml |
150~1500ml |
2000ml |
150~4000ml |
Packaging Rate |
30~80bags/min |
5~60 bag/min |
5~50 bag/min |
10~40 bag/min |
Bag Width |
50~150mm |
50~200mm |
80~250mm |
100~350mm |
Bag Length |
40~200mm |
80~300mm |
80~400mm |
100~450mm |
Film Width |
100~320mm |
420mm |
520mm |
720mm |
Power |
220V,50HZ,1.2KVA |
220V,60HZ,2.2KVA |
220V,60HZ,2.2KVA |
220V,60HZ,2.2KVA |
|
Machine Size (L*W*H, mm) |
1100*755*1540 |
3638*1020*2370 |
3938*1090*2450 |
4350*1300*2800 |
Machine Weight |
350KG |
950KG |
950KG |
1150KG |
Machine Wrapping |
Wooden Case |
Wooden Case |
Wooden Case |
Wooden Case |
