Plastic Film Shrink Packing Machine For Beverage Bottle/wrap packaging machine

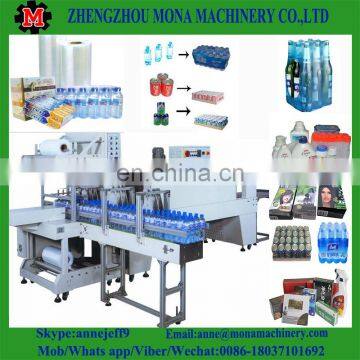

Automatic Heated Shrinking Wrap packaging Machine
1) Shrink Wrapping Machine
2) PLC & Touch Screen ( Mistubishi)
3) Pallet-Free Optional
4) Suitable PVC / PE Film
Thermal laminating machine is suitable for cans, mineral water, beer, bottles, beverage bottles and other non-bottom or bottom bracket tray shrink packaging; packaging the article to achieve the perfect effect. This machine adopts Germany advanced technology, its main parts are well-known foreign brands; Stable performance and long service life
.
1. Application:
Thermal shrink packaging machine is a new type of packaging machinery capable of high-efficiency and continuous operation and designed on the basis of thermal shrinkage property of packaging film. It can automatic arrange, group, wrap with shrink film single PET beverage bottle or other similar substances, and turn into assembly package by heat shrinkage and cold setting. Products packaged in this way will be tied up firmly presenting orderly and good appearance, and will be easy to open.
2. Features:
1) Operating through touch screen with friendly interface convenient for man-machine communication and operation.
2) Pallet-free packaging adequate for package of different bottle sizes and in different combinations.
3) With automatic functions of bottle transfer and arrange,membrane packing,sealing and cut,shrinkage,cooling and shaping,etc.
4) Using advanced constant temperatire membrane heating binding technology with smooth and secure seal.
5) The quick seal cooling structure guarantee that the seal has a higher strength
6) Adopt with PLC automatic program circulation control with stable and reliable performance.
7) The inductive switch controls the membrane transfer system to reliably adjust and control membrane transfer length with less loss
8) All the transfer system is controlled by frequency changing devices with stable and smooth transfer speed.
Model |
MN-700 |
Shrink Tunnel |
Horizontal Height & Length of Feeding Conveyor |
850/2500mm |
|
Packaging Material |
PE POF PP |
|
Max. Packing Size(L×W×H) |
500×300×300mm |
600×400mm |
Min. Packing Size(L×W×H) |
280×100×100mm |
|
Packing Speed |
6~12pcs/min |
0~12m/min |
Power Supply |
2kw 1 phase 220V/50Hz |
18kw 3 phase 380V/50Hz |
Sealing Time/Shrinking Time/Temperature |
0.5~1.5S/0-0.6S/0~250 |
0.6S/0~250 |
Air Pressure |
4-8Mpa |
|
Width of Film/Thickness |
Max. 600mm/40mircon~120mircon |
|
Machine Size(L×W×H) |
2500×1220×2100mm |
3000×970×1400mm |
Gross Weight |
700kgs |
370kgs |
