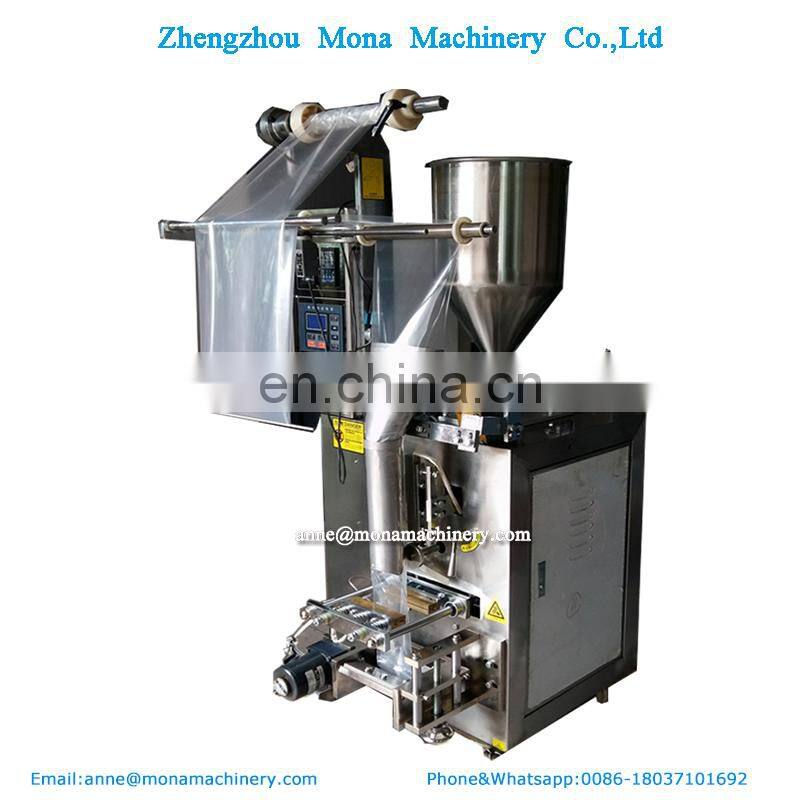

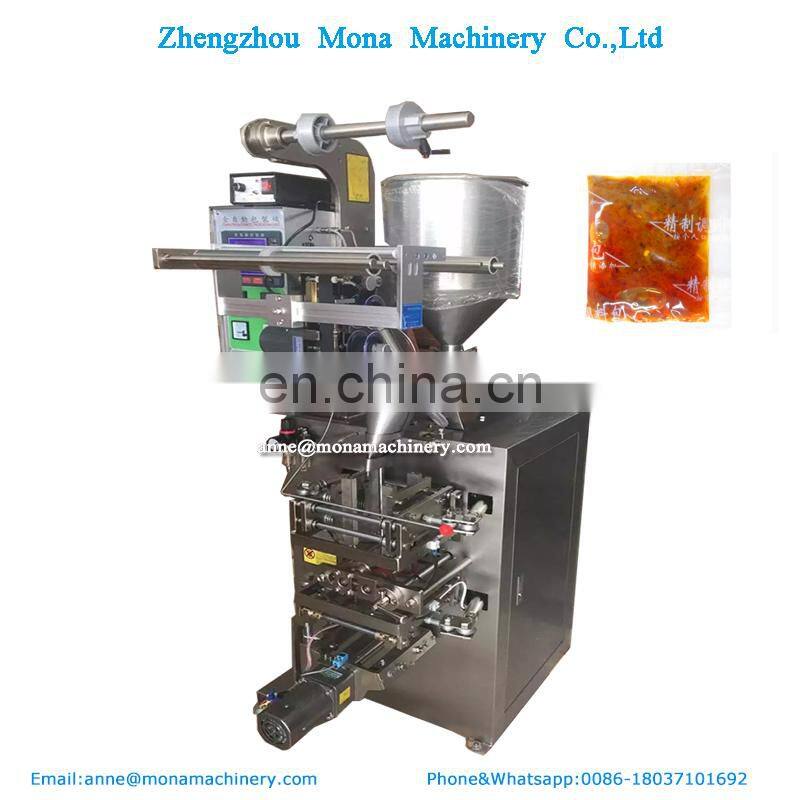

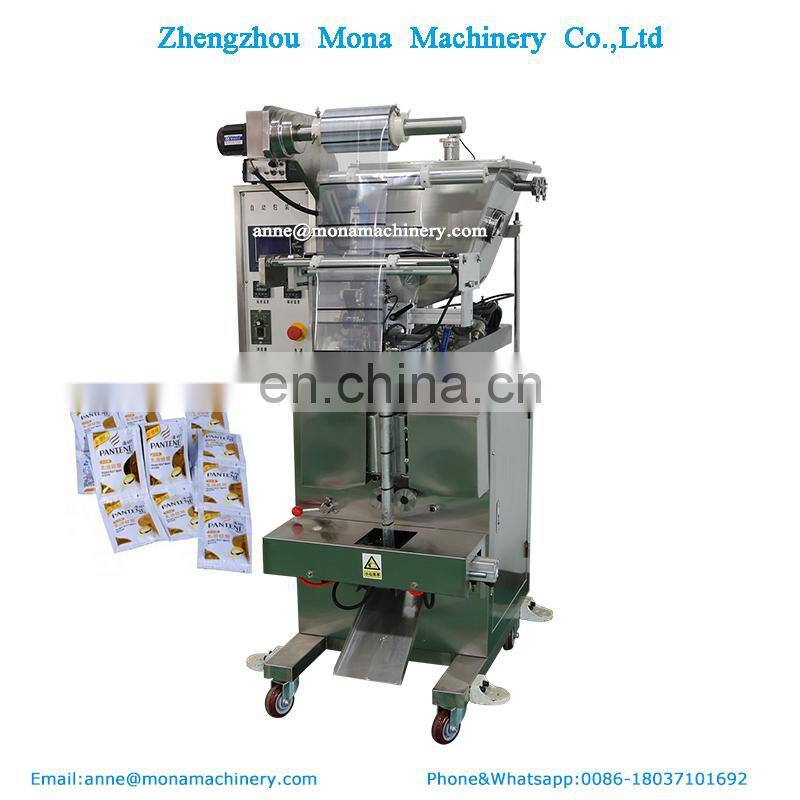

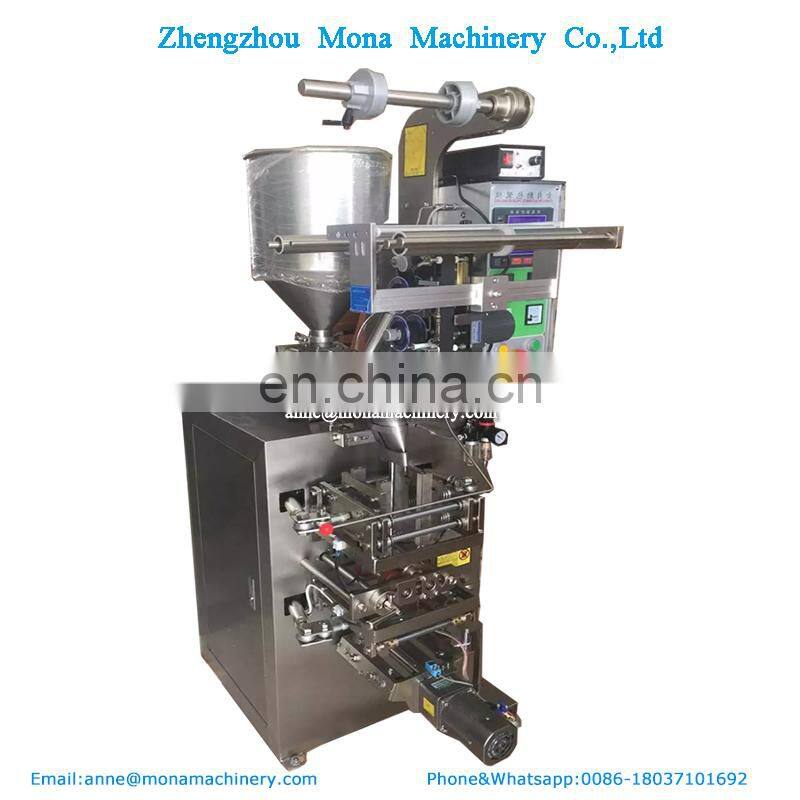

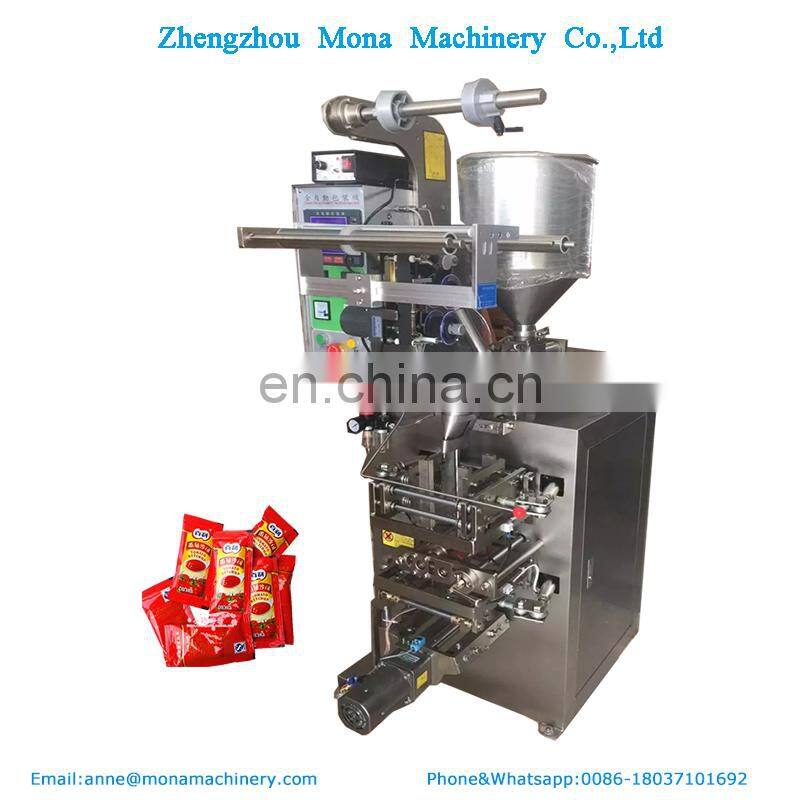

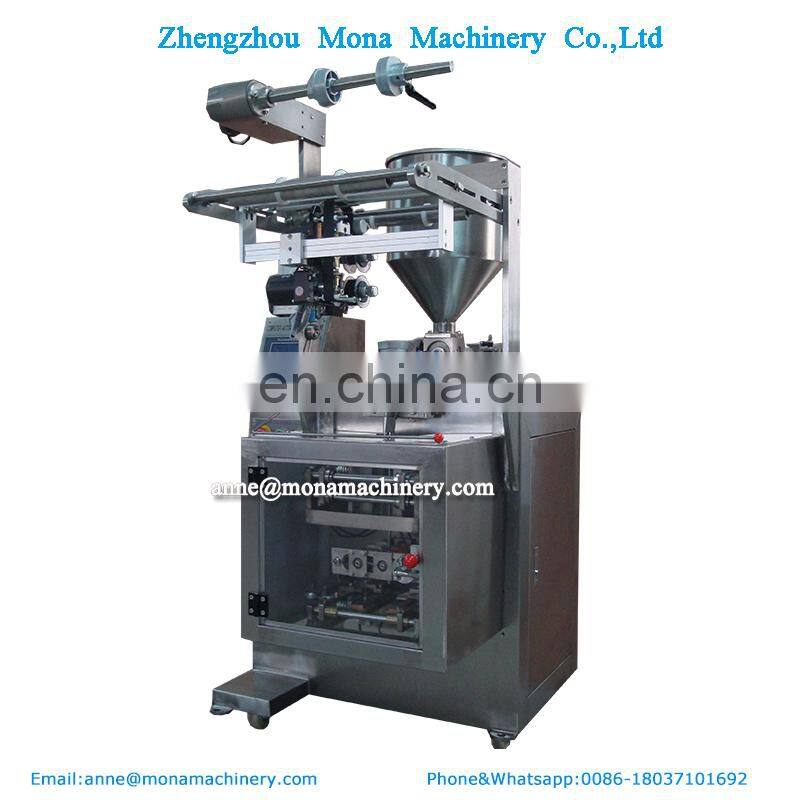

Help CenterAutomatic Liquid Fruit Juice/Tomato Paste/Sauce/Shampoo/Ketchup Sachet Salad Dressing Mixing Packing Machine
Related Products
-
High Accuracy Pneumatic Automatic Ketchup Salad Dressing Mixing Packing MachineUS$ 100 - 20,000MOQ: 1 Set -
Low-Price Conveyor Pallet Wrapping SystemUS$ 3,500 - 30,000MOQ: 1 Set
-
Cheap Offer Cheap Price Automatic Conveyor Rotary-arm Wrapping Machine With Low PriceUS$ 3,500 - 30,000MOQ: 1 Set
-
Intelligent Remote Control Automatic Pallet Wrapping Machine And Top Film Dispenser CombinationUS$ 3,500 - 30,000MOQ: 1 Set
-
Stretch Automatic Transport Film Automatic Plastic Wrapping Machine For LuggageUS$ 3,500 - 30,000MOQ: 1 Set
♦ Main features♦
· Automatic finish weight, bag-making, filling, sealing, cutting, counting, lot number and so on;
· Automatic optimization match with all the program, this system can alternate the length of bag , thus it is easy and precise;
· It has color system controller, so can get the complete trade mark design;
· The length of bag and bag packing speed can be alternated by chain-gear stepless speed various without change spare part;
· Unique in-laidembedded mouth sealing, enhanced hot sealing mechanism;
· Intelligent temperature control by temperature controller, featuring fine heat balance, fine packaging performance, low noise, clear sealing texture and strong sealing performance ;
· The whole body steel is stainless steel ;
· The machine adopt liquid /paste pump to weight and measure , the seal type is four sides seal ;
· Control system is Mitsubishi PLC from Japan .
♦ Scope of application ♦
This machine is suitable for automatic packaging of paste or liquid of foods , medicine and chemicals , such as pesticide , shampoo ,body foam bath lotion , facial cream , ingredient oil , fruit sauce , tomato ketchup and honey and so on .
♦ The features of full-automatic ♦
· Speed Limitless: Packing speed shall be limitless arranged in some extend , which can best match the steps of making bag/fulfilling/sealing and cutting .
· The bag length can be set free at some specific range , using the “Bujin” Motor , making bags stable and the speed can be controlled .
· The process of bag-made can reach self-automatic inspecting/location/sealing and cutting when there are the signs of color locating in packing films .
· Equipment itself has the function of self-diagnosing and error-pointing .
· Controlling temperature by high exact PID , which ensure the sealing quality of different packing film material and will be in more stable of hot sealing .
· Conveniently operate and repair , because of its intermittent simple structure .
· Common using available :Packing 1-50g in a bag by changing the measure glass .
· Automatically print production lot No. , and adding the easy-tear type convenient .
· Using the superior steel parts , quality to be stable , noise to be bitter , error rate to be low and service life to be long .
· Good appearance , smart and unique , the steel of contacting material is stainless steel or poisonousless and corrosion resistance plastic , which reaches the packing requirement of food and medicine ( say GMP ) , especially available in the industries of food , medicine .
♦Specification♦
Technical parameters
Packing capacity |
20-60bags/min |
Filling range |
1-50ml |
Forming bag dimension |
L 50-160mm, W 50-210mm |
Packing accuracy |
≤±1% (per material) |
Power supply |
220V 50/60Hz, 1.18Kw |
Machine net/gross weight |
250kg |
Machine dimension |
800*800*1900mm |
Dimension of packaging wooden box |
900*900*2100mm |
Sealing type |
3 side sealing or 4 side sealing |
