Mechanical Stretch and Automatic Pallet wrapping machine
Feature of pallet stretch film packing wrapping machine
It can meet the packing requirement of containerization storage, transportation and mechanical loading and unloading. Our wrapping machine is widely used in such industries: beverage, foodstuff, can-making, paper-making, dye, plastic and chemicals. etc. It makes the goods against damage during transportation, also improve the efficiency.
Technical Parameter of pallet stretch film packing wrapping machine
Conveying System |
Roller, chain line or other structure is optional for dynamic conveyor |
Film Carriage System |
Film Stretching frame, pre-stretch film at 300%,auto film feeding and its speed is adjustable. |
Control System |
PLC Control, Check products height automatically, wrapping layer and time is adjustable. |
Technical Data of pallet stretch film packing wrapping machine
Load Size |
Max. L 550-1100 MM |
Max. W 500-1100 MM | |
Max. H 800-1800 MM | |
Turntable Diameter |
1650 MM |
Turntable Height |
118 MM |
Turntable Load Capacity |
Max. 1200 KGS |
Turntable Speed |
Max. 12 RPM |
Machine Weight |
720 KGS |
Power Supply |
220V 50HZ 1Phase |
Power Consumption |
1.5 KW |
Machine Dimension |
L 2745 x W 1650 x H 2270 MM |
Shipping Dimension |
L 2300 x W 1900 x H 1000 MM |
Packing Efficiency |
20-40 Loads per Hour Based on pallet size and weight |

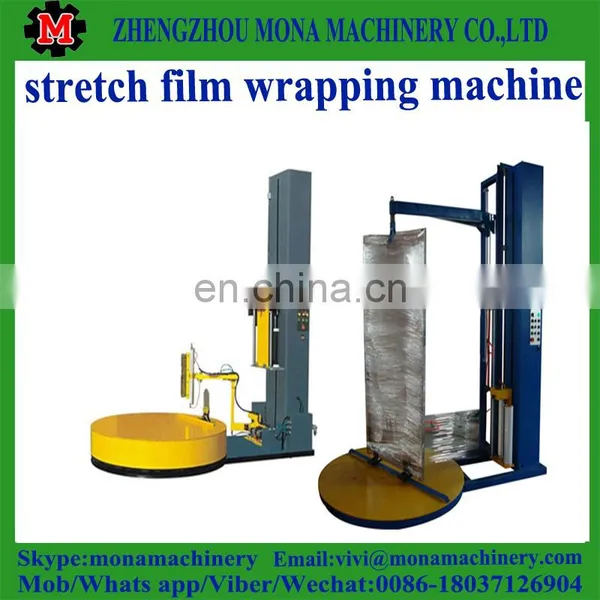

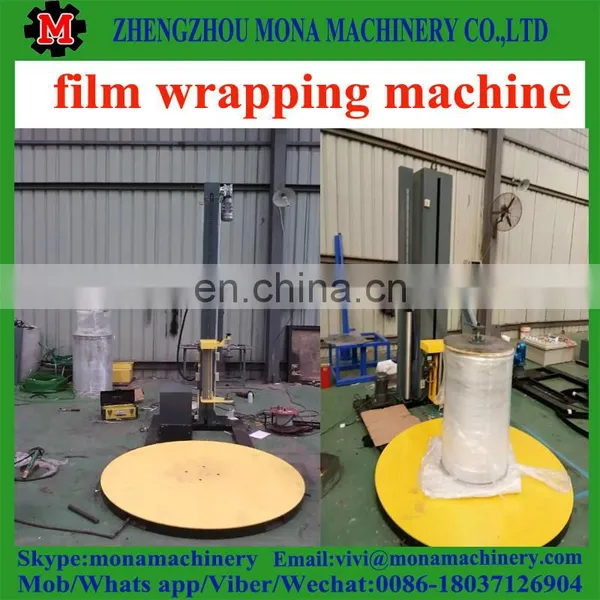

Picture of pallet stretch film packing wrapping machine
