Color Code Checking Flat Plate Auto Pesticide Blister Packing Machine
Color Code Checking Flat Plate Auto Pesticide Blister Packing Machine
Introduction of Blister Packing Machine :
This Blister Packing Machine can automatically finish forming, filling, packing, sealing , printing and blister cutting in one machine.
With cursor positioning system that can keep Printing at center of whole blister as standard
Filling Amount is adjustable at 5-50g.
The bottom film which can use in this machine is thermoformable, heat seal-able semi-rigid film and rigid film such PP, PE, PS,PET, PVC and so on.
By Changing mould , one machine can pack different kind and size blister.
Technical parameters of Blister Packing Machine:
Model |
DPP-80 Blister Packing Machine |
Working speed |
10-33pcs/min |
Capacity : |
1500pcs/h (speed adjustable) |
Max formed area |
100*70 mm |
Max depth |
25mm (special made) Generally <15mm |
Display paper : |
50-100*90mm |
Standard traveling range |
30-70mm |
Aluminum laminated foil |
0.02-0.035*90mm |
PVC hard pieces |
0.15-0.5x90mm |
Air compressor |
0.6-0.8Mpa |
Mould cooling |
Tap water or recycling water |
Machine power : |
3.8kw |
Voltage: |
380v /220v 50hz |
Gross Weight |
560 kg |
Packing size |
2000*850*1500mm |

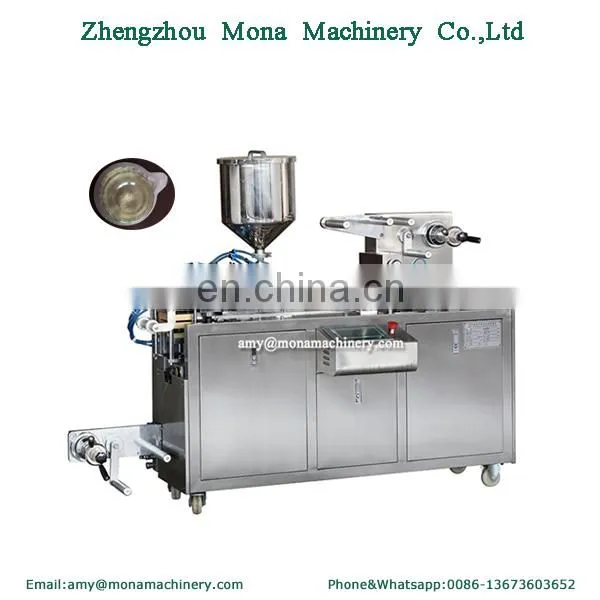

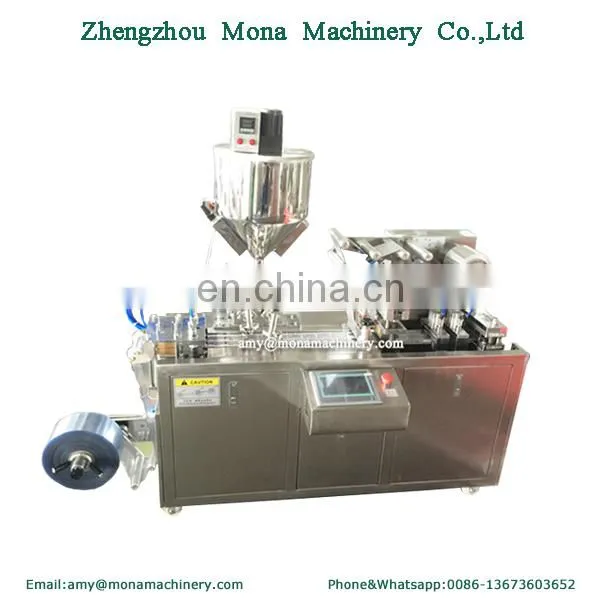

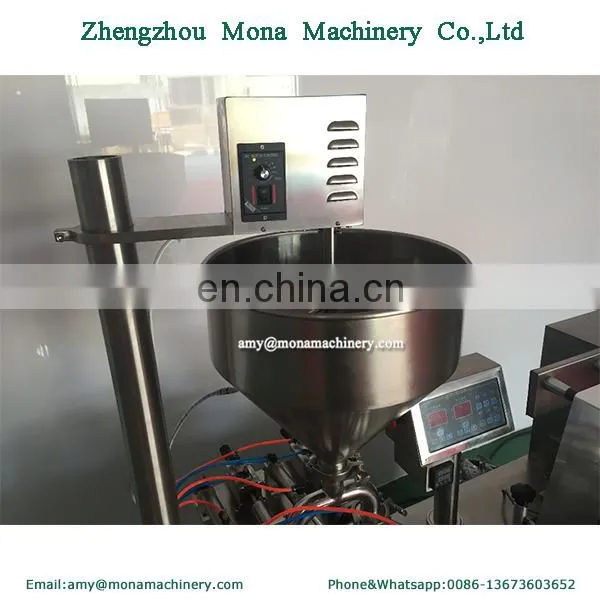

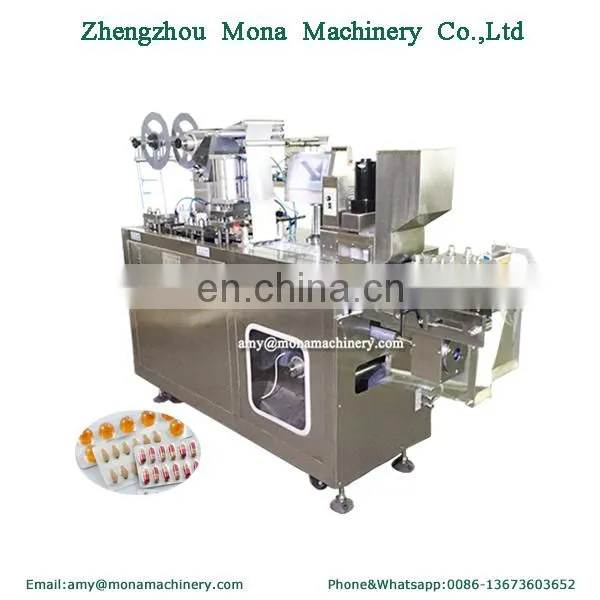

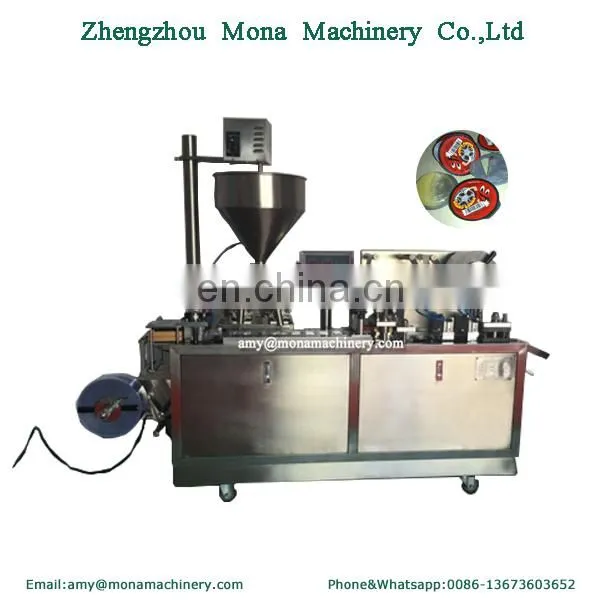

Picture shows of Blister Packing Machine :
Sample:
Any questions and inquiry you are warmly welcome :
