Hydraulic Scrap Baling Press Clothes Bales Packing Machine
Application Scope of hydraulic baling machine
The MNHB Series Hydraulic Vertical is widely used in baling and pressing kinds of raw materials.Such as:Straw,Hay,Waste paper,Waste used clothes,rags,Carton,Cardboard,Plastic bottles,Dried chili papers,Herbals,Sheep wool,waste Tires,Cans,sawdust,wood wool,stalk,fiber and fabric stuff,sponge,heels,and all other loose materials.
Finished products of hydraulic baling machine
One rectangular bale of above raw materials which is tightly pressed,which will save space and easy for transportation.The bale size can be customized.The bale weight will be realized by using different kinds of hydraulic press,there are 5ton,10ton,30ton,60ton,80ton,120ton,150ton,200ton.Or bigger pressure.also there are single cylinder and double cylinder and three cylinders is custommade. To recommend you the fittest pressure,please let me know your raw materials,final bale size and final bale weight you want to get.
Machine structure of hydraulic baling machine
The baler machine is mainly made up of rack,oil cylinder,gear pump,reversing valve(or distributor),motor,totally six big parts
Technical Parameter of hydraulic baling machine
Model:MN-HB-10 Pressure:10Ton Power:7.5KW Standard bale size:800*400*800mm Bale weight:60-70kg Stroke:1000mm Machine Weight:680KG Machine Size:1500*600*2900mm | |
Model:MN-HB-30 Pressure:30Ton Power:11KW Standard bale size:1000*600*800mm Bale weight:150-2000kg Stroke:1200mm Machine Weight:1500kg Machine Size:1700*1200*3200mm | |
Model:MN-HB-60 Pressure:60Ton Power:15KW Standard bale size:1200*800*1100mm Bale weight:350-400kg Stroke:1200mm Machine Weight:2000kg Machine Size:1700*1200*3500mm | |
There are also 5ton,80ton,100ton,120ton,150ton,200ton,etc. with single cylinder and double cylinder. it depends on your raw materials ,final bale size and bale weight. | |

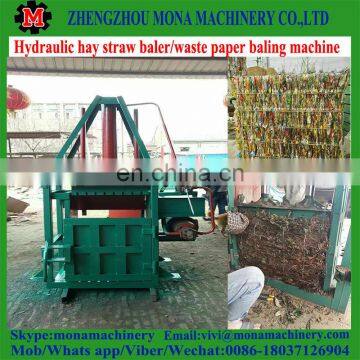

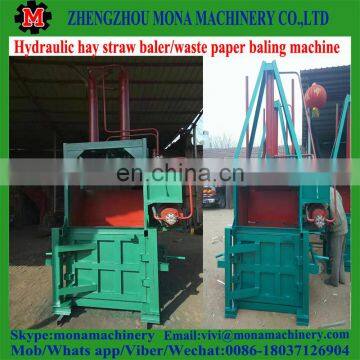

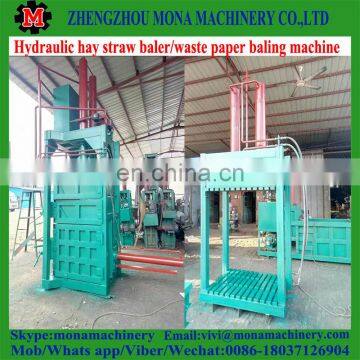

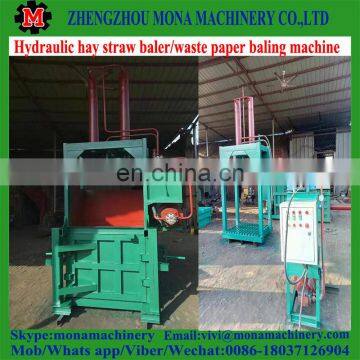

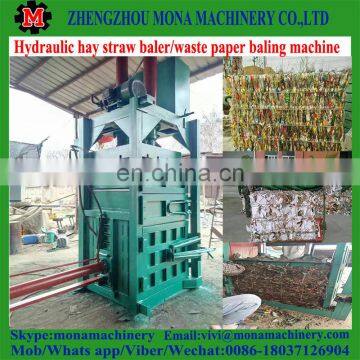

More photo details of hydraulic baling machine as below
