Hot Fruit and Vegetable Juicer With Crusher /Juice Production Line

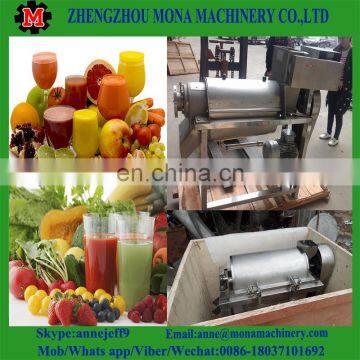

This screw juicer machine is special designed for juicing lots of fruit and vegetables, it have high output.

1.Applied in juicing fruits(tomato, pineapple,apple,orange and so on)and vegetables.

2. Spiral propelling and extruding.

3. Procedures such as juicing and residue discharging of berries, pome fruit and vegetables are completed automatically

4. The screw juicer machine parts that contact materials are made of high quality stainless steel.

5. This screw juicer machine’s range is very wide. The space between screw and cylinder can be

adjusted according to different material extracted.

6. Less electricity consumption, less noise, high efficiency, easy to move

The use and maintenance of industrial spiral fruit juicer

 1 The machine must be installed horizontally, and using ground screw fixed.

 2 Operation: When the machine is working, should adjust the head to make the maximum gap, then the gab will gradually reduce. When meet the needs, using the detent to fix the handwheel shaft.

 3 Feed must be uniform, non-rigid foreign matter into the hopper, so as not to damage the screen.

 4 Maintenance: After working, should clean the filter screen. If the fine fibrous filter is more than the juice, should clean the screen one additional, after finishing the press, should clean the whole machine.

Technical parameter of juicer machine
