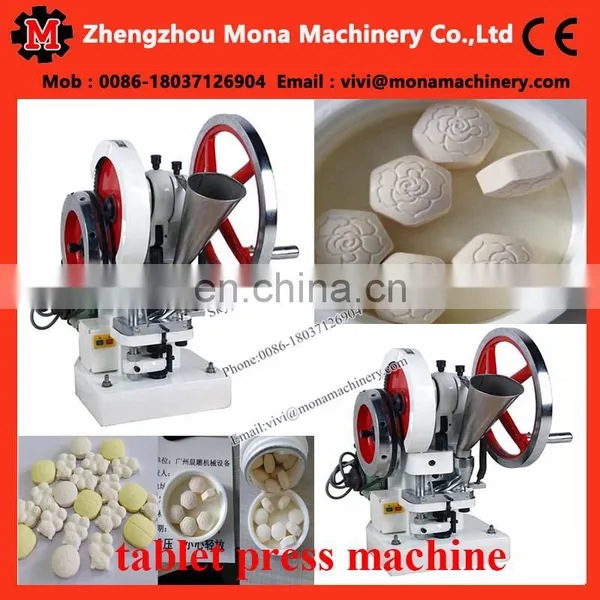

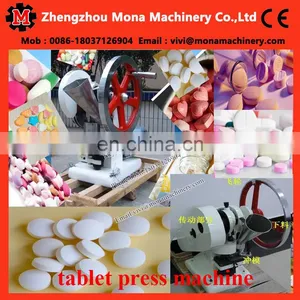

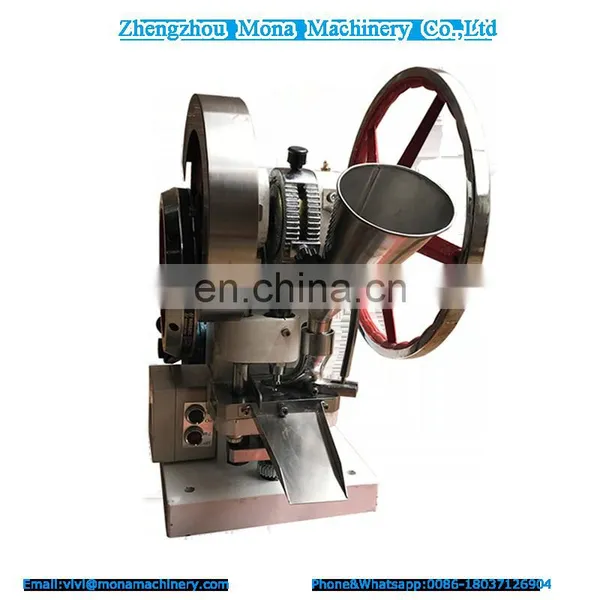

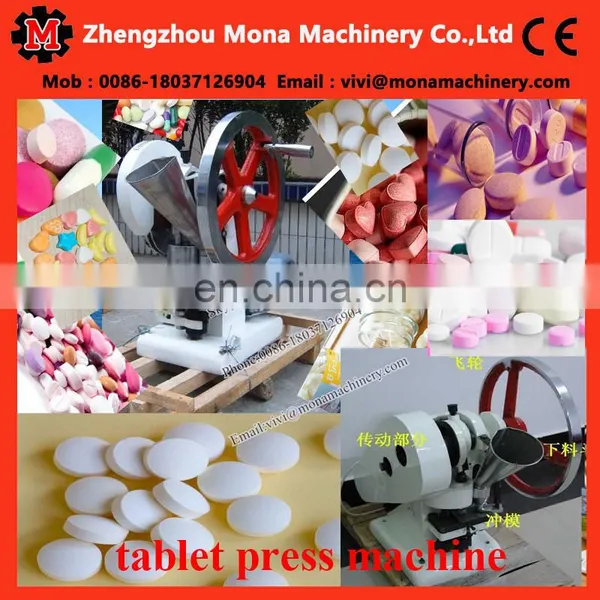

lab pill maker machine | single punch tablet press tdp-5 | TDP-5 tablet press machine
lab pill maker machine | single punch tablet press tdp-5 | TDP-5 tablet press machine
Production of tablet press machine:
This machine is used for tablets different kinds of granular raw materials into tablet.
It is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.
It features a small desktop type press for motive and continual sheeting. It can also be hand-operated.
Only one pair of punching die can be erected on this press. Both filling depth of material and thickness of tablet are adjustable.
Features of tablet press machine:
1. This manual tablet press machine is applicable to trial manufacturing in Lab or batch produce in small amount different kinds of tablet, sugar piece, calcium tablet and tablet of abnormal shape.
2. This pharmaceutical machine of small tablet press features a small desktop type press for motive and continual sheeting.
3. This manual tablet press machine can also be hand-operated.
4. Both filling depth of material and thickness of tablet are adjustable
Parameters of tablet press machine:
ITEM |
MNTDP-3 |
MNTDP-5 |
MNTDP-6 |
Max. Pressure (kn) |
30 |
50 |
60 |
Max. Dia of Tablet(mm) |
14 |
18mm for round tablet |
20mm for round tablet |
22mm for irregular tablet |
25mm for irregular tablet |
||
Max. Depth of Filling(mm) |
11 |
13mm |
15mm |
Max.Thickness of Tablet(mm) |
6 |
7mm |
7.5mm |
Production Capacity (pcs/h) |
3600 |
3600 |
3600 |
Power(w) |
550 |
1100 |
1100 |
Overall Size(LxWxH) |
600x450x680 |
600×500×700mm |
650×600×700mm |
Net Weight(kg) |
90 |
140kg |
150kg |
