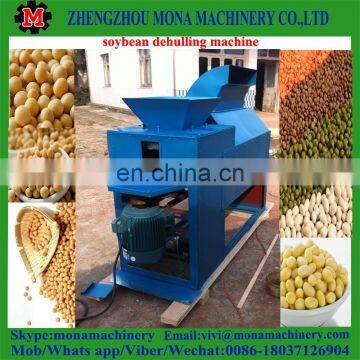

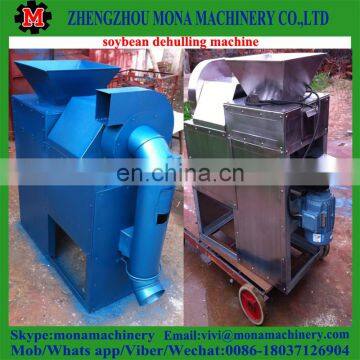

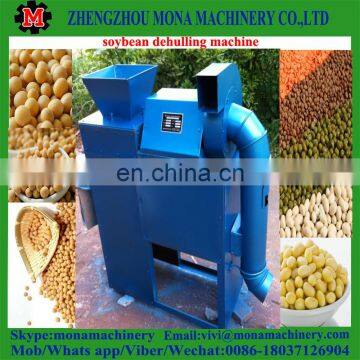

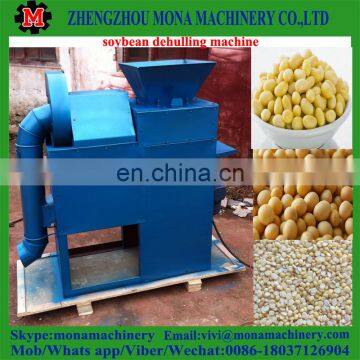

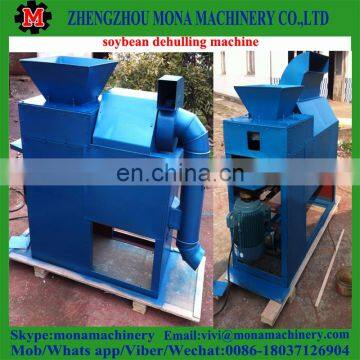

China bean peeling machine/ bean shelling machine
China bean peeling machine/ bean shelling machine
Specifications of soybean dehulling machine
Dry way soybean dehulling machine
1. Peeler for dry soybean/ broad bean
2. High peeling rate
3. Low damage rate
Features of soybean dehulling machine
1. When peeling, it can separate the peel and kernel automatically.
2. Dry Type, with high peeling rate and low damage rate and also low failure rate
Technical Parameters of Carbon steel/stainless steel
Introduction of soybean dehulling machine
This machine is used for peeling soybeans, black beans, broad bean, pea.
This machine is used for peeling soybeans, black beans, broad bean, pea and so on.
According to the sort and size of soybean, we can adjust the space so that the disc
life cycle is expanded. The parts that touches the raw material are made of stainless
steel, the rest are made of coal rolling steel sheet or A3 steel .
Work principle of soybean dehulling machine
Beans under the action of abrasive disk operation to seperate bean shell ,kernel and
shell mixture into the filter remove broken powder and then the fan suction shell,
complete kernel shell separation.
Installation of soybean dehulling machine
(1) Dismounting the hopper,iron plate and the base;
(2) Set up the die;
(3)Take apart the side plate of three covers;
(4) Make a mark on the upper die and then turn the down die and see whether they are parallel; if there is a large fluctuation, mat a sheet iron between the down die and the base to make the dies parallel in the main;
(5) Pay attention to whether the interval of the upper and down dies is the same; if not, adjust the four 10mm' screws on the upper cover plate;
Up the down die and make it next to the upper die, then turn the down die, finally let the upper and down dies rub till the clearance is unanimous.
Main technical parameters of soybean dehulling machine
|
Model |
MN-TP300 |
MN-TP400 |
MN-TP500 |
Power |
1.5 kw 0.55kw |
3 kw 0.75kw |
5.5 kw 0.75kw |
Peeling rate |
95%-98% |
95%-98% |
95%-98% |
separation rate |
95%-98% |
95%-98% |
98% |
|
Grinding wheel diameter |
300 mm |
400 mm |
500 mm |
Capacity (kg/h) |
200-300 |
500-700 |
1000-15 00 |
Weight (kg) |
150 |
250 |
450 |
Size (mm) |
400*1400*1300 |
500*1500*1400 |
600*1700*2000 |
