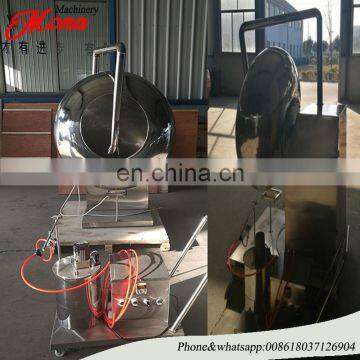

Chocolate Coating Pan Machine With Cool Air System

chocolate coating pan machine with cool air system and chocolate sparying system

chocolate coating pan machine with cool air system and chocolate sparying system

Application of many-colored sweet bright dragee machine

This machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.

Such as:chocolate polishing, peanut coating, sugar coating,seasoning, producing tapioca pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.

Feature of many-colored sweet bright dragee machine

1.304 stainless steel,GMP conformity,hygiene and healthy;
2.Equipped with spray,heating system,temperature controller which for easy coating and good processing result;

3.Machines(voltage)can be customized according to your requirements.

4.It is available for coating peanuts, almonds, cocoa beans, seeds, tablets, etc

5.It is available for coating sugar, chocolate, dragee, puree,starch paste ,syrup on the food appearance

Working principle of many-colored sweet bright dragee machine

This machine consist of main body, worm wheel box, coating pan, heating device,hot air&common blower,electrical equipment, etc.

The transmission process that the motor drive the worm wheel and worm via triangle belt to make the coating pan rotate.Then the material revolve up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.

Specification of many-colored sweet bright dragee machine

1.MN-BY-600 Sugar Coating Machine

Capacity:15-30 per time

Pan Diameter:600mm

Main motor:2.2kw

Rotational speed :32 r/min(adjustable)

Angle: 15°~  45°(adjustable)

Size: 650×600×920mm

Weight:200kg

Material:304 Stainless steel

2.MN-BY-800 Sugar Coating Machine

Capacity:50-100 per time

Pan Diameter:800mm

Main motor:2.2kw

Rotational speed :32 r/min(adjustable)

Angle: 15°~  45°(adjustable)

Size:800×850×1300mm

Weight:280kg

Material:304 Stainless steel

3.MN-BY-1000 Sugar Coating Machine

Capacity:70-150 per time

Pan Diameter:1000mm

Main motor:2.2kw

Rotational speed :32 r/min(adjustable)

Angle: 15°~  45°(adjustable)

Size:1000×900×1400mm

Weight:300kg

Material:304 Stainless steel

Auxiliary equipments: spray tank, pump,temperature controller,cart ,etc.
