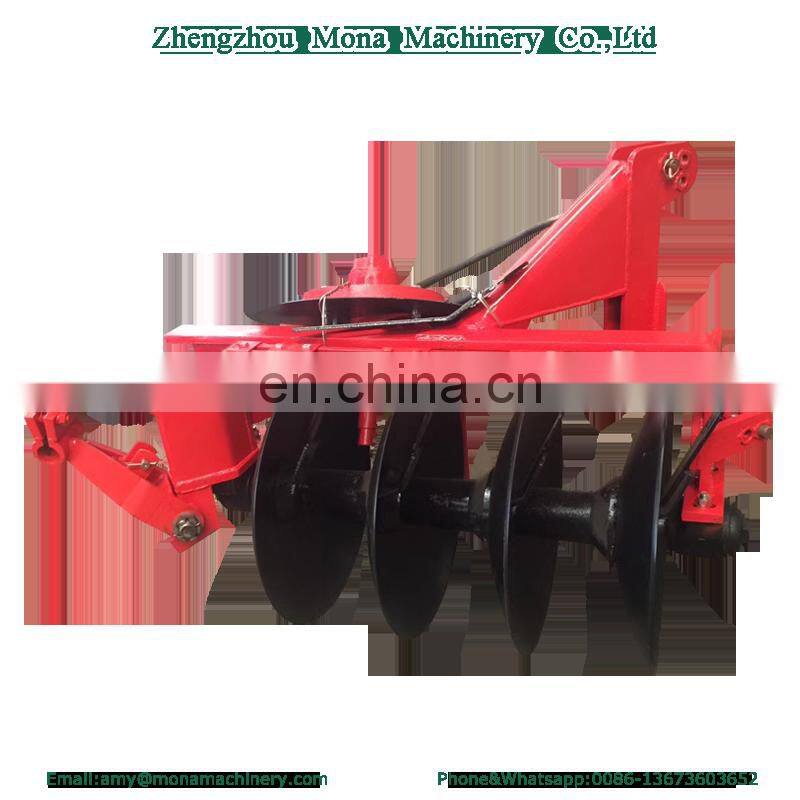

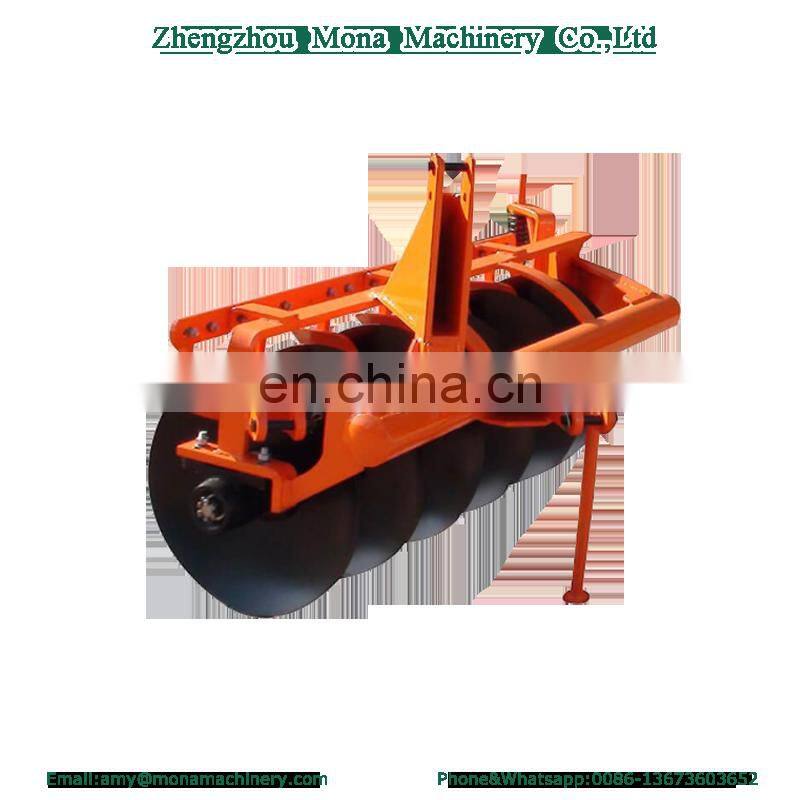

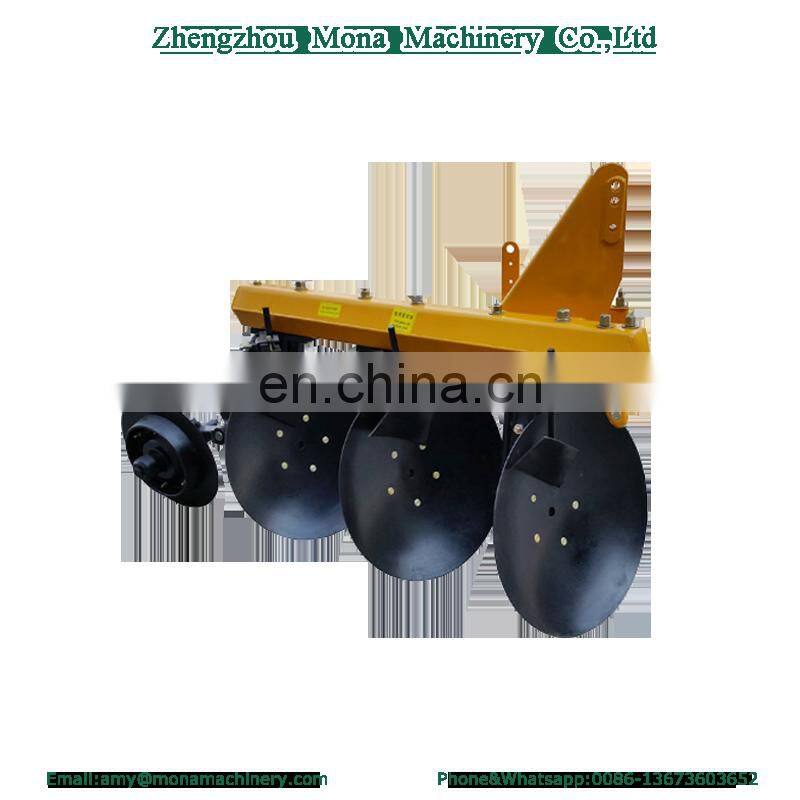

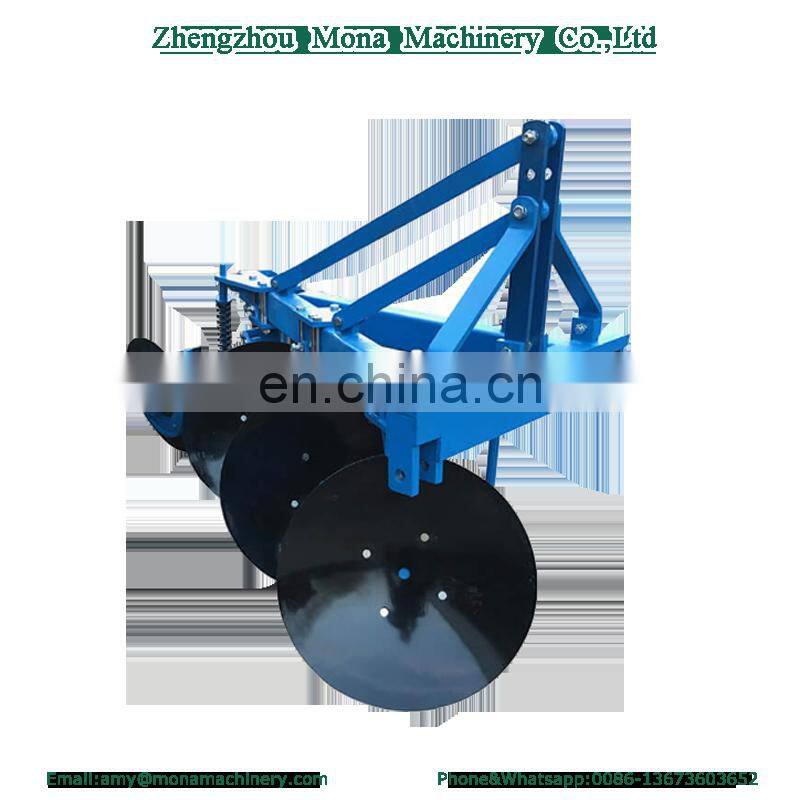

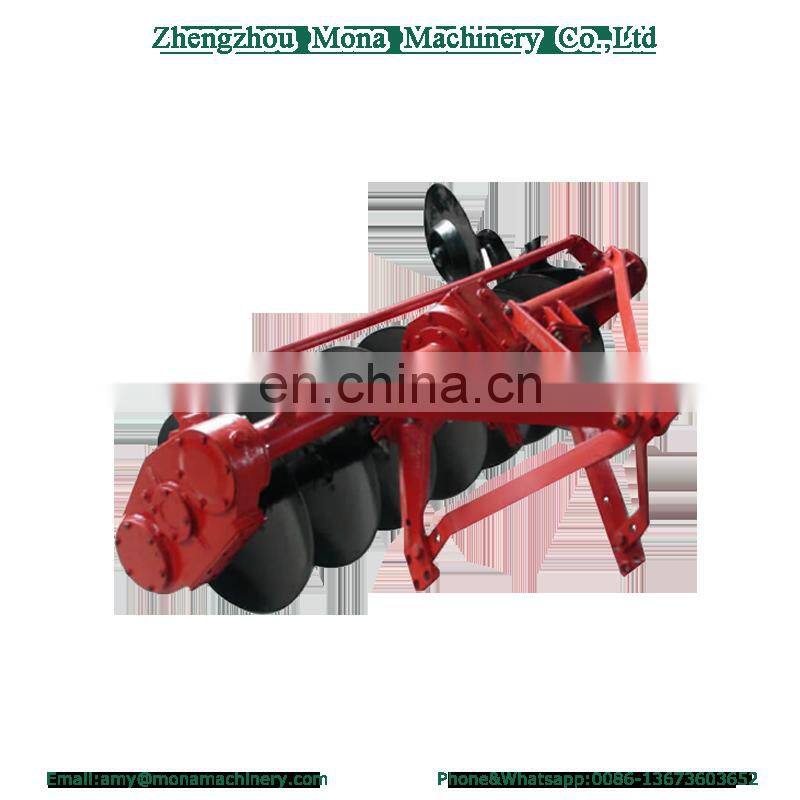

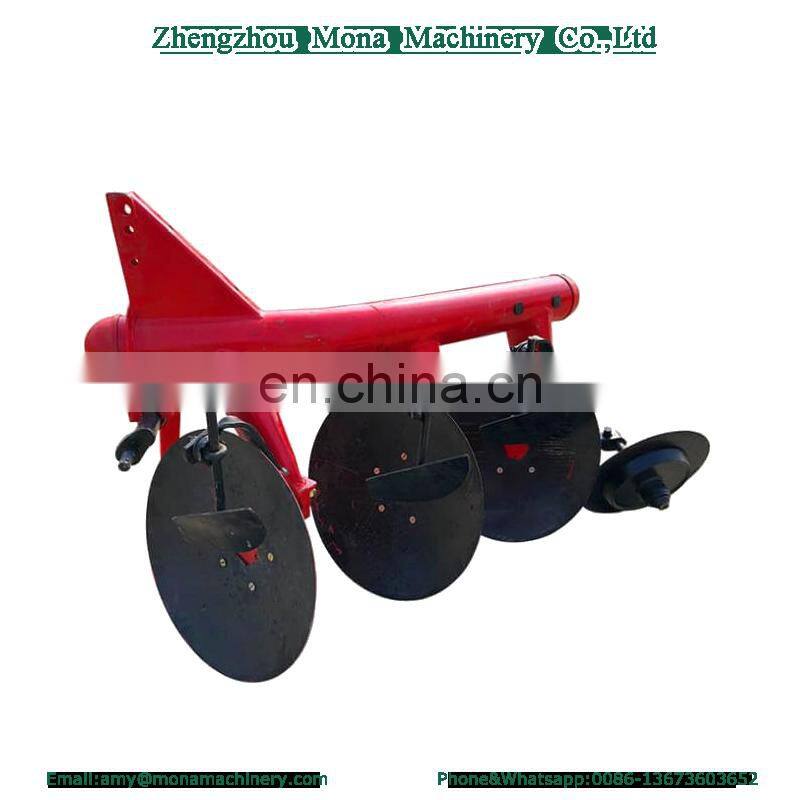

Agricultural equipment two way disc plough for walking tractor
Factory supply high efficiency three disc plough price
Mob/whatsapp/wechat:008613673603652
Email:amy(at)
Skype:monamachine

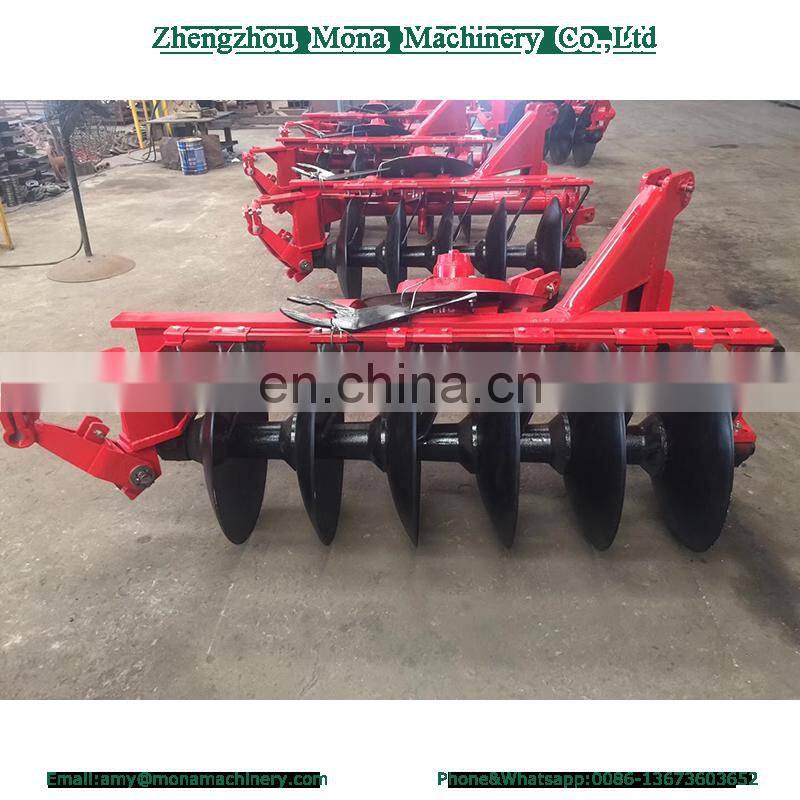

Introduction of high efficiency three disc plough :
This kind of Disc plough is matched with four-wheel tractor, the discs of plough are revolving to furrow the land during operation.. The mounted disc plow is especially suitable for land which have weeds, stems and frictional soil with small brick etc.
Main Features of high efficiency three disc plough:
1. Only partial inversion of the soil so that plant residue is left on the surface, thus reducing the erosion risk and water losses by evaporation.
2. Mixing action on loose soils.
3. Rolls over obstacles so that hardly any breakage occurs.
4. Lower risk of choking (sugarcane, cotton, maize).
5. Fewer problems with sticky soils.
6. Hardly any smearing of the furrow bottom (plough sole).
7. The wear is spread over the entire circumference of the disc (2m of cutting edge on discs with a diameter of 65cm).
8. The discs are selfsharpening.

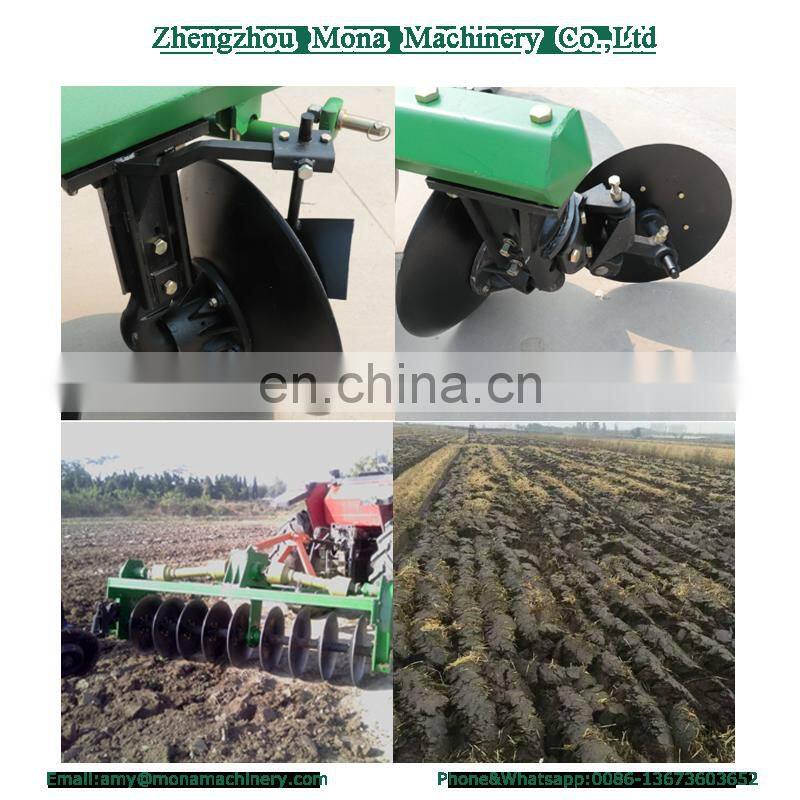

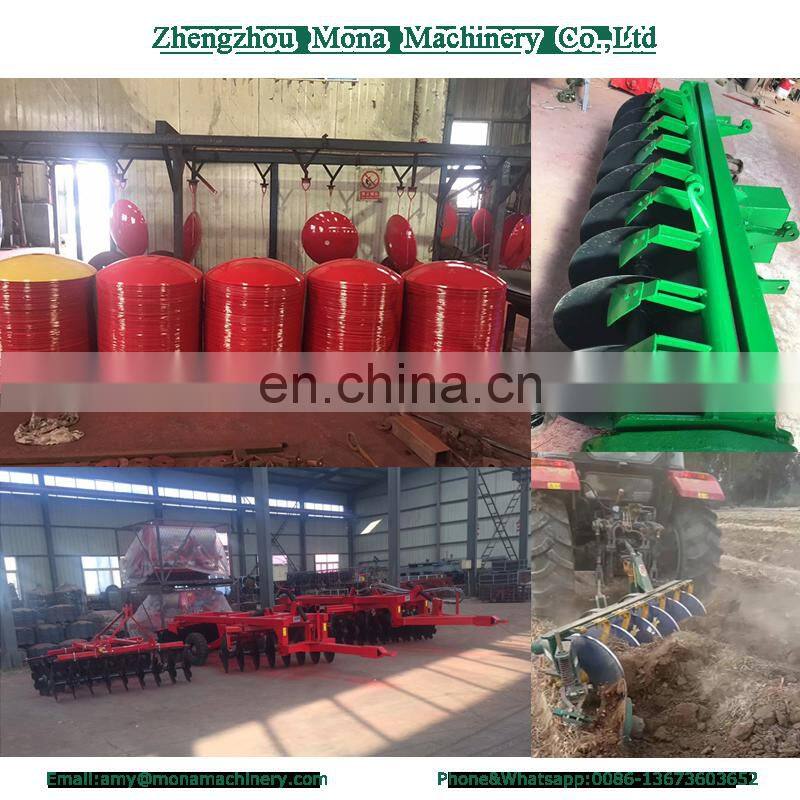

Machine Parts of high efficiency three disc plough:
We adopt nice materials for the whole machine which made it more firm.
The disc is made of truly manganese steel instead of low quality iron.

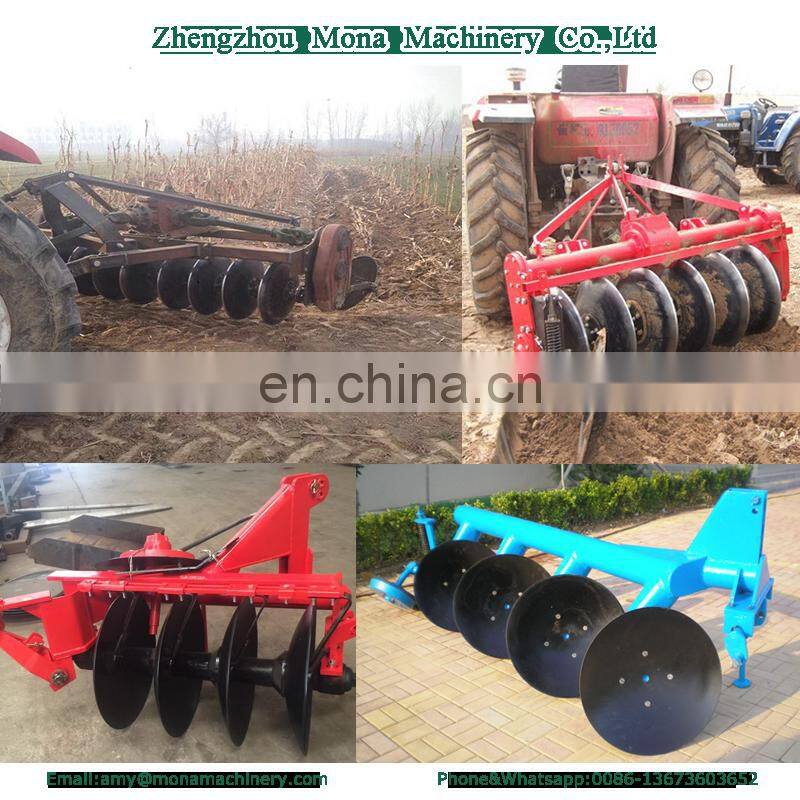

Application of high efficiency three disc plough:
The one-way disc plough is suitable for ploughing up the cultivated land as well as virgin land,
especially for the green manure with stubbles of rice or wheat. with the good performance of
tillaging into the soil, it can satisfy the agricultural request. Moreover, the plough has the merits
of less working resistance and easy to operate and adjust, etc.
Technical parameters of high efficiency three disc plough:
Model |
1LY(M)-325 |
1LY(M)-425 |
1LY(M)-525 |
1LY(M)-625 |
Working width(m) |
0.75 |
1.0 |
1.25 |
1.5 |
Working depth(mm) |
250 |
250 |
250 |
250 |
Dia. of disc(mm) |
650 |
650 |
650 |
650 |
No. of disc |
3 |
4 |
5 |
6 |
Weight(kg) |
430 |
490 |
560 |
600 |
Fitted power(kw) |
36.7~44.1 |
47.7~58.8 |
≥73 |
≥88 |
Linkage |
Standard three-point mounted |
|||
Any questions and inquiry you are warmly welcome :
