CE newest multifunctional 12hp walking hand tractor
CE newest multifunctional 12hp walking hand tractor
Brief introduction of walking tractor
Walking tractor are dual-function product that can be operated as the towing machine as well as driving machine. They have small and compact structure, light weight, long service life, reliable performance, easy operation and good running ability, also they are be assemble a seating equipment for driver.
The products are suitable for operating in paddy field, dry field, orchard, greenhouse, hilly field. With matched accessories and farm implement, they can finish many operations such as ploughing, cultivating, harrowing harvesting, drilling, ditching, transporting, irrigating, sprinkling, spraying, threshing, seeding, milling, fooder cutting and so on.
Detail parameter of walking tractor
Model |
MN-101C |
MN-111 |
MN-121 |
MN-151-1 |
MN-181 |
||||||
Overall Dimensions(mm) |
2210*920*1130 |
2260*930*1120 |
2360*1100*1090 |
2420*1600*1230 |
2490*1600*1265 |
||||||
Wheel Tread(mm) |
756,704,656 |
735~765 |
760~930 |
760~1410 |
780~1420 |
||||||
Min. Ground Clearance(mm) |
205 |
205 |
230 |
260 |
241 |
||||||
Min. use weight(kg) |
285 |
300 |
336 |
405 |
465 |
||||||
Gear |
F6+R2 |
||||||||||
|
Speed(km/ h) |
Forward |
1.9,2.72,4.55, 7.25,10.37, 17.33 |
2.2,3.15,5.62, 8.37,11.99, 21.41 |
2.53,4.49, 7.54; 9.36, 16.63,27.89 |
2.6,4.63,7.78 ; 9.65,17.14, 28.76 |
2.58,3.95,6.17, 7.71,11.81, 18.49 |
|||||
Reverse |
1.54; 5.86 |
1.78,6.77 |
1.99; 7.39 |
2.06; 7.6 |
1.94,5.81 |
||||||
|
Engine |
Brand |
MONA |
MONA |
Changzhou/ Changfa |
Changzhou/ Changfa |
Changzhou/ Changfa |
|||||
Type |
diesel Single cylinder; horizontal; 4 stroke; water cooled |
||||||||||
Rated Power(km/hp) |
7.35/10HP |
8.08/11HP |
8.82/12HP |
11/15HP |
13.2/18HP |
||||||
Rated Speed(r/min) |
2300 |
2200 |
2400 |
2200 |
2200 |
||||||
Bore × Stroke (mm) |
90×90 |
95×100 |
95×98 |
100×115 |
110×115 |
||||||
Specific Fuel Consumption(g/kw*h) |
≤265.2 |
≤245 |
≤246.2 |
≤269.6 |
≤269.6 |
||||||
Tyre |
6.00-12 |
6.00-12 |
6.00-14 |
6.00-14 |
6.00-16 |
||||||

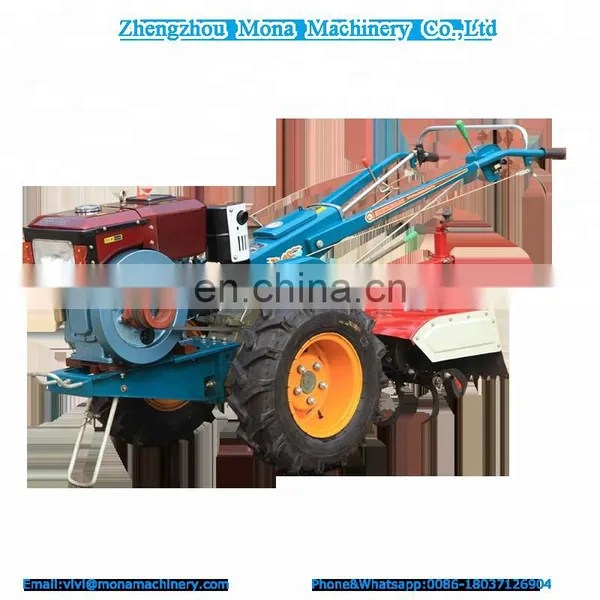

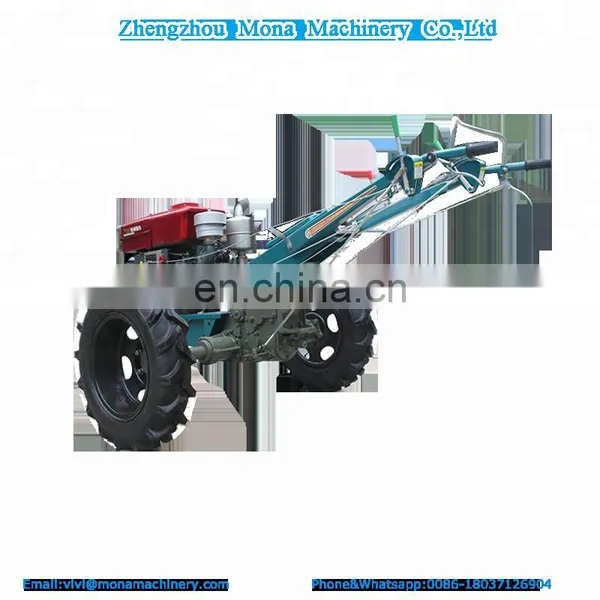

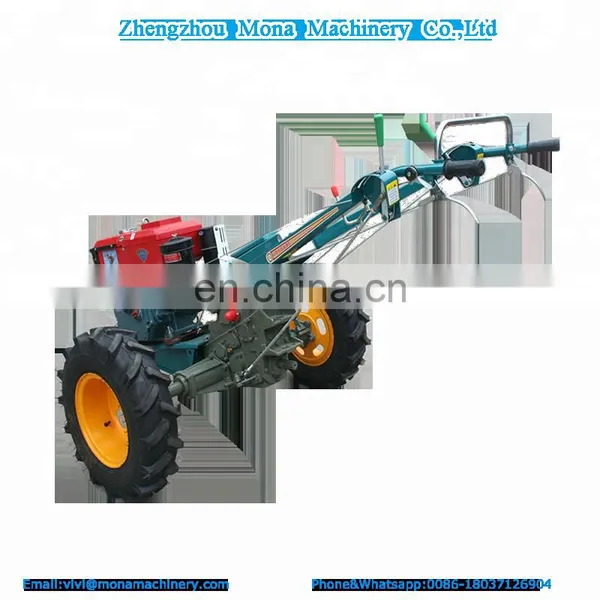

Picture of walking tractor
