Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904

Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904 photo-1

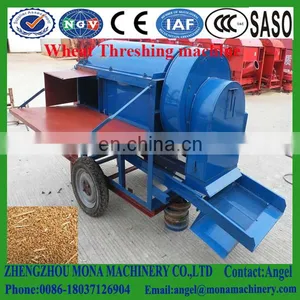

Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904 photo-2

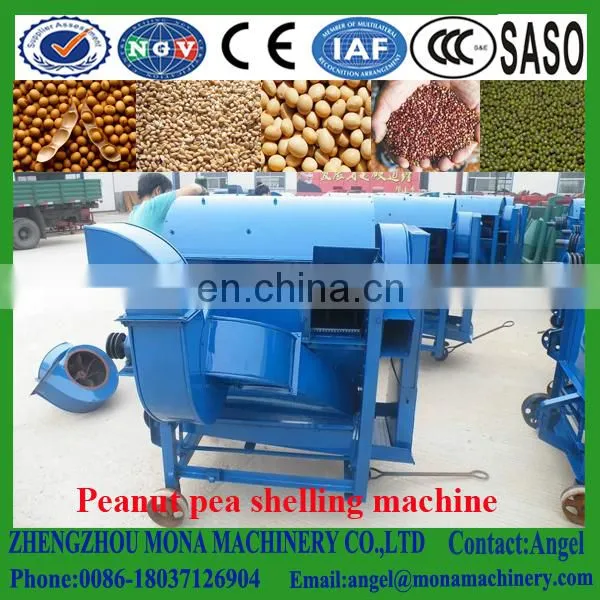

Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904 photo-3

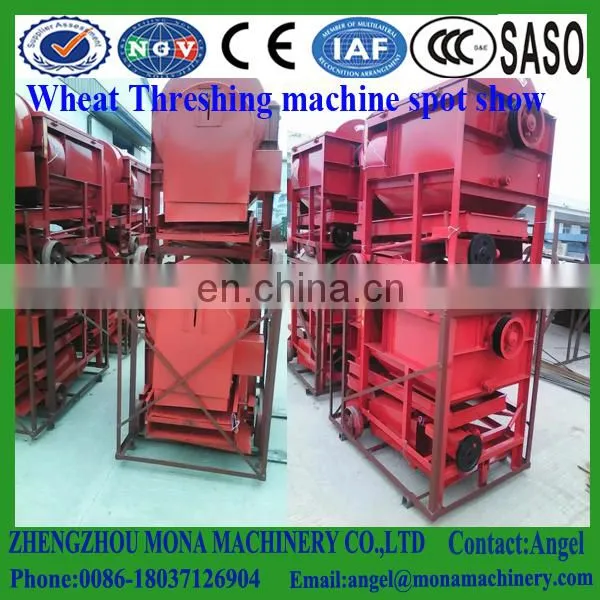

Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904 photo-4

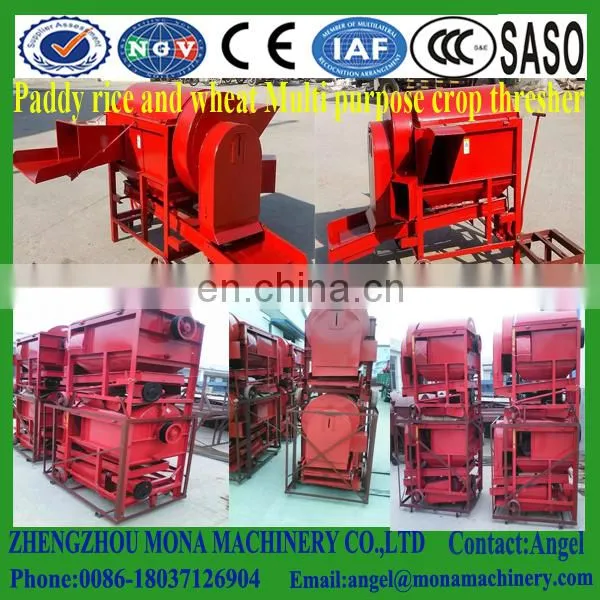

Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904 photo-5

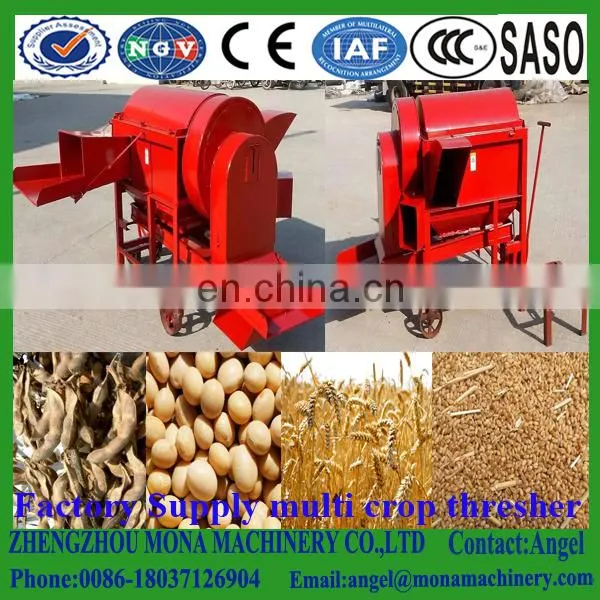

Wheat Huller/wheat Seeder/rice Thresher 0086-18037126904 photo-6
US$ 100 - 2,200 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
MONA
Place of Origin:
Henan, China
Model Number:
MN-40
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao shanghai ningbo
Delivery Detail:
Delivery time depends on order quantity.
Brand Name MONA
Place of Origin Henan, China
Model Number MN-40
Type Agriculture Machine
Use Thresher, Shelling
Certification CE ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty One Year
Weight 80kg
Voltage 220V/380V
Condition New
Power(W) 2.2kw
Product Description

1.it is used to shell many kind of grains, such as: sorghum,millet, bean, wheat ,oat, paddy ,buckwheat soybean,oil seed and so on.

2. Structure: The thresher consists of feeder hopper, roller, screen mesh and main frame etc..

3. Operation Principle

When the machine in operation, firstly put the crops into machine from feeder, and the crops will be rubbed, squeezed, collided and shaken by assembly of rack and screen mesh, then to make the grain seperated from culm, then flowing out from the screen mesh. Finally, the culm will be thrown out by centrifugation of roller, and threshing is finished .


Main Features

Product Description:

1. simple structure, reliable operation.

2. assignments of good quality, each index has reached national relevant specification

3. adaptable,can thresh wet wheat, also can thresh rice, corn and other grain. Multifunction operation.

4.the use of safe, convenient maintenance, occupy small place.

5. threshing dish with vice knife page, prolong service life of threshing dish.

6.a food fights with two bagging card, can also loaded on two bags, crisscross meet beam,reduce farmer’s work load.


Model
Capacity(kg/h)
Power(kw)
Size (mm)
MN-40
350-400
2.2kw
750*1000*450
MN-50
550-600
3kw
850*1000*550
MN-70
750-1000
7.5kw
1000*2000*1300
MN-90
800-1200
11kw
2200*1800*1500
MN-100
1200-1500
15kw
2300*2000*1500

Work principle for wheat/rice thresher

1) Main parts: Feed hopper, roller, concave, frame

2) Please feed the crop uniformly in a row. After assembly rubbing,squeezing,colliding ext. to make the grain away, the flow out through the concave.

Detailed Images

Installation for wheat/rice thresher

1) Please put the rice/wheat thresher on the flat place

2) Please fix the right motor

3) Please check the V-belt carefully and adjust the direction of the motor.

4) Please adjust the space between rollers and concave

5) Do make sure the screw tight

6) Do make the thresher spinning 3-5 minutes to assure no any abnormality happen, then start to work.


Finished product

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

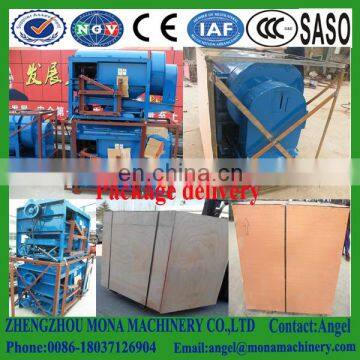

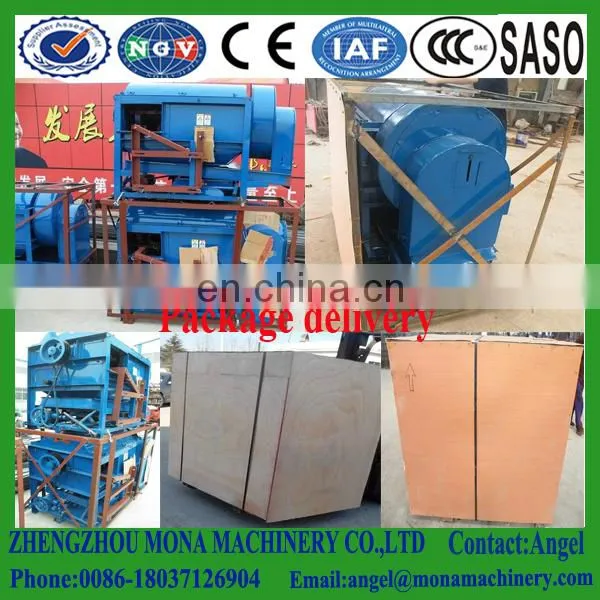

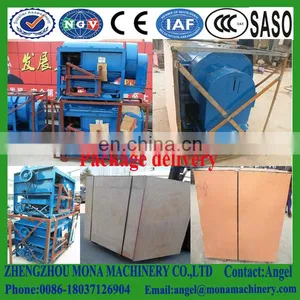

Packing & Delivery
Certifications
