Product Description

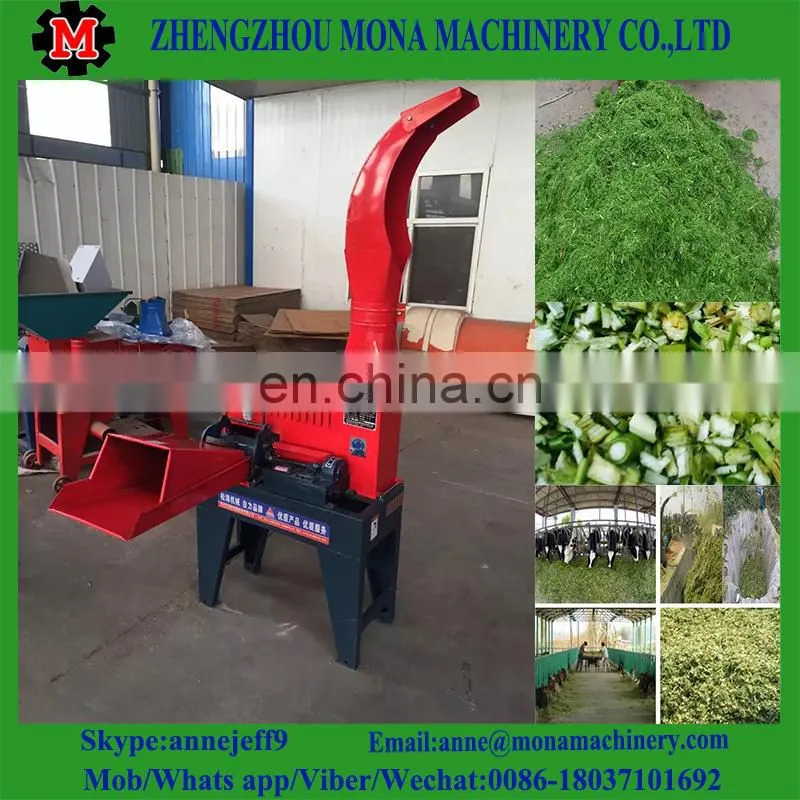

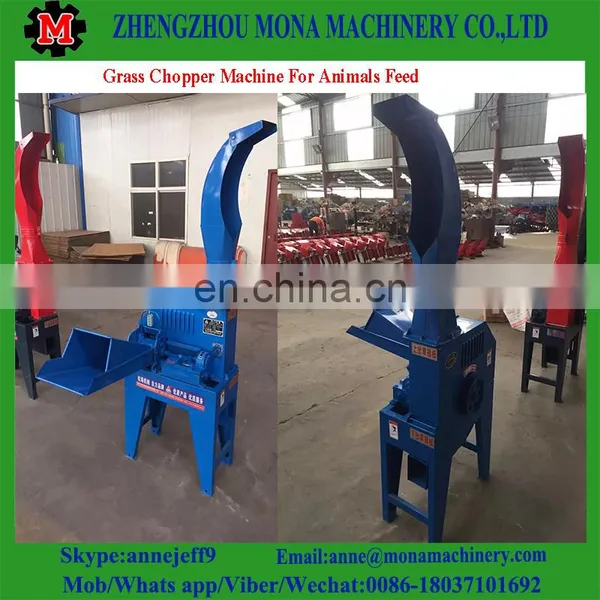

1.This chaff cutter can be apply to cut all kinds of wet and dry crops, corn stalk ,rice straw, wheat straw ,bean stalk, grasses with big capacity. It is suitable for cattle ,farm,farmer which is feeding cow, horse, sheep, deer, rabit etc.
chaff cutter is a mechanical device for cutting wet or dry straw/hay into small pieces before being mixed together with other forage and fed to horses and cattle. This aids the animal's digestion and prevents animals from rejecting any part of their food. It mainly consist of 6 parts including frame, hopper, conveying belt, roller and over load protection device and others.
Working Principle of chaff cutter :
motors or diesel engines are the mating powers. The powers are transmitted to the main shaft. The gears on the other side of the main shaft transmits the speed governed power to the grass roller through the gearbox,cardan joint,chains and others.

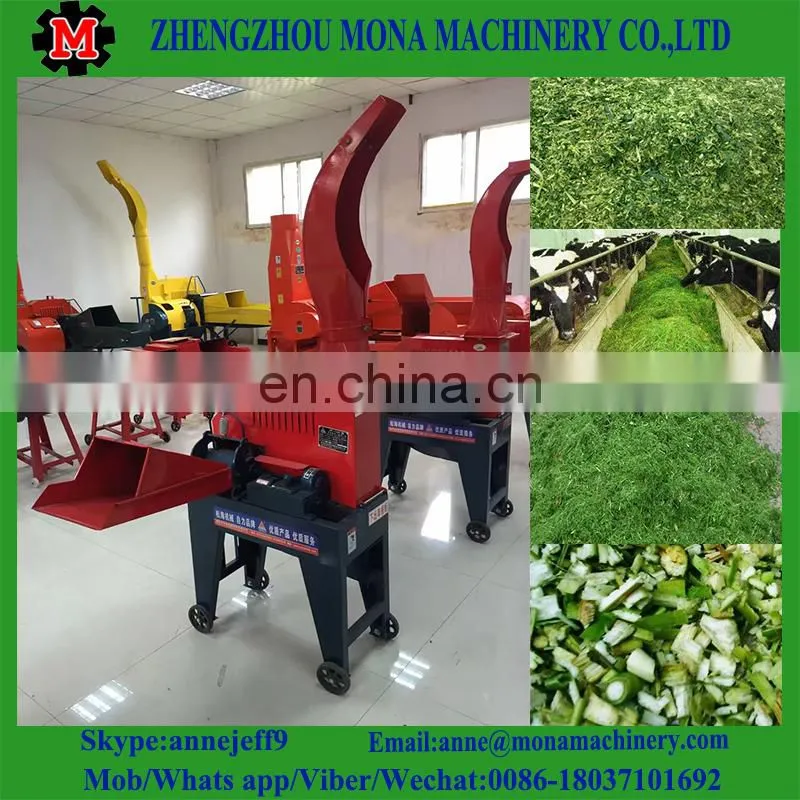

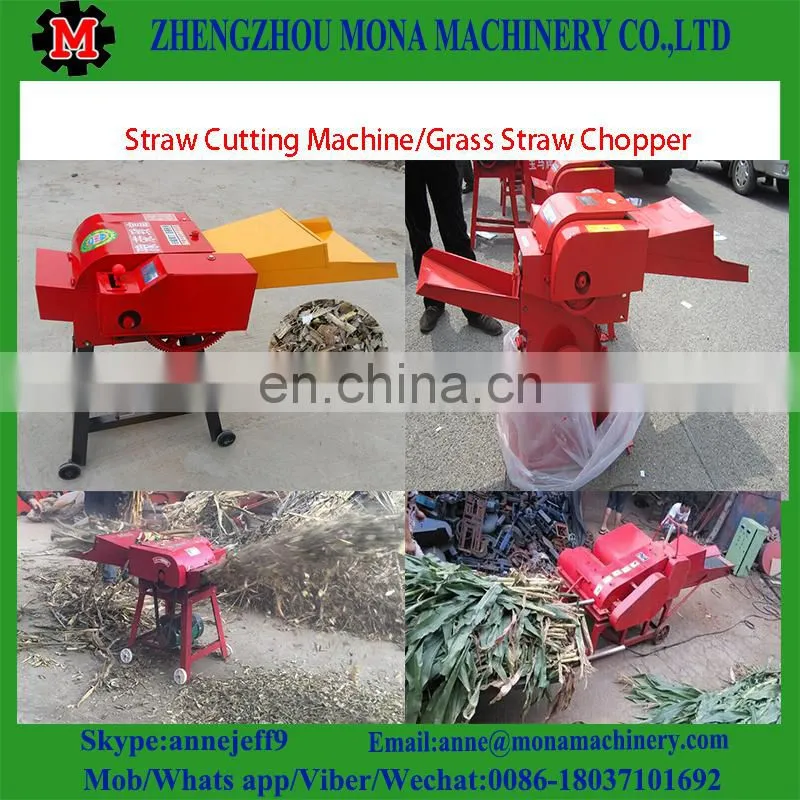

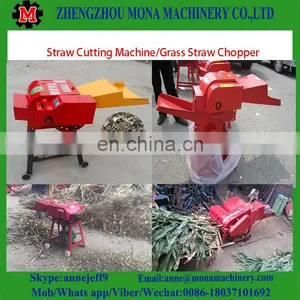

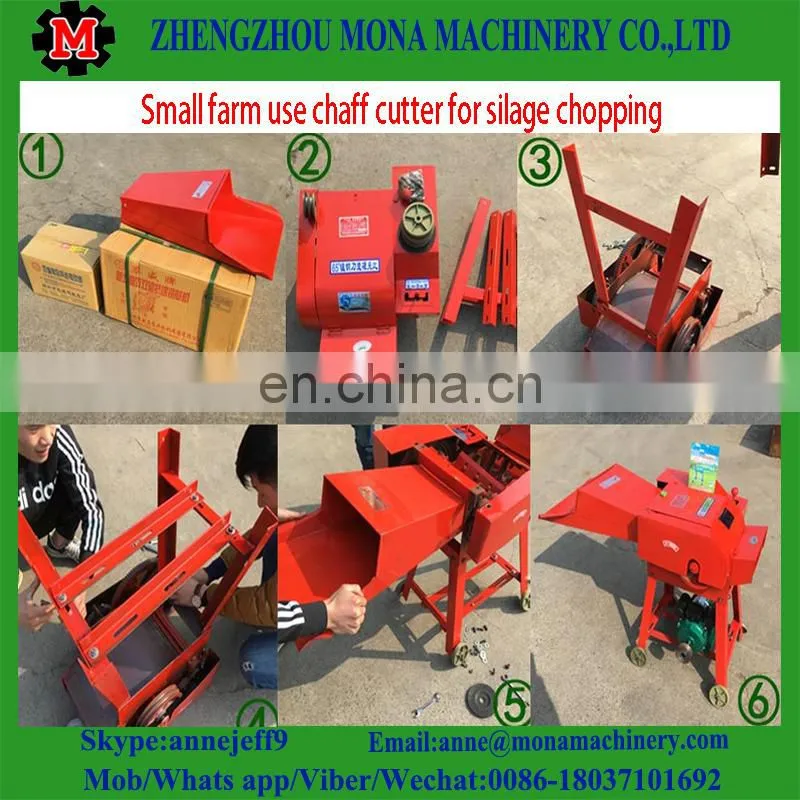

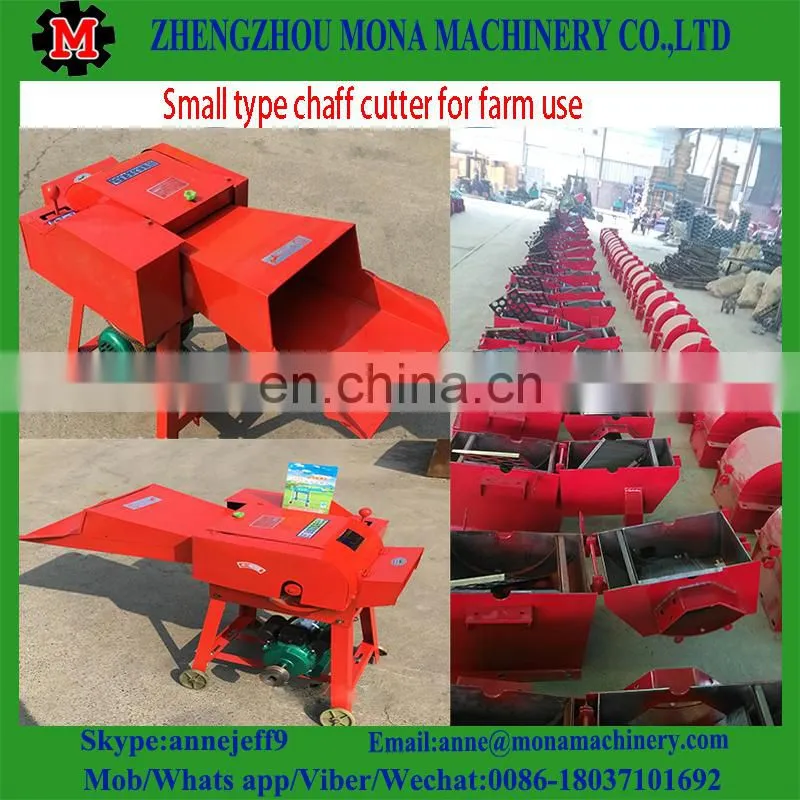

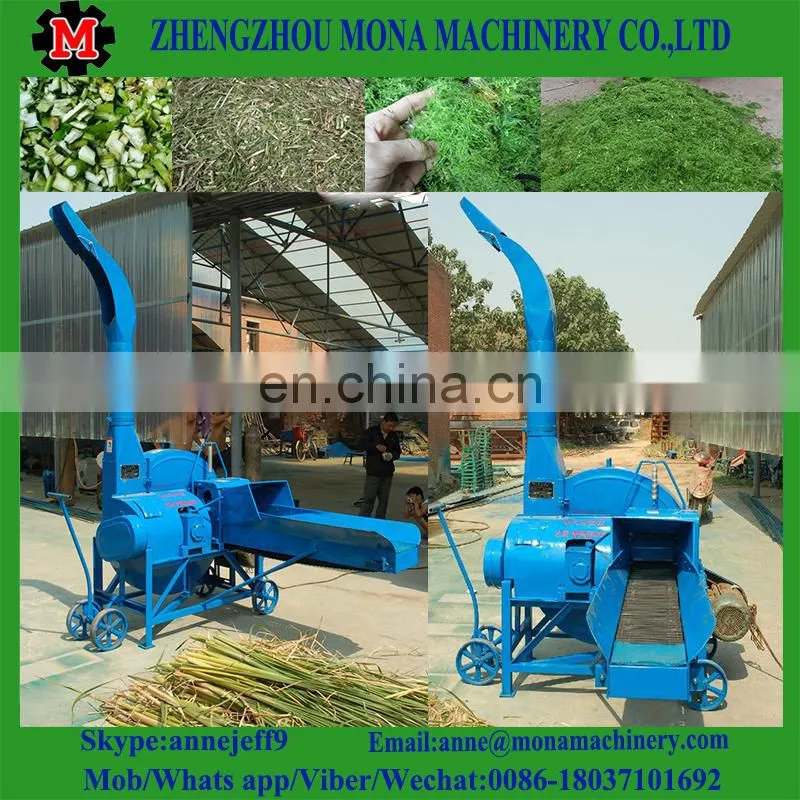

Small chaff cutter

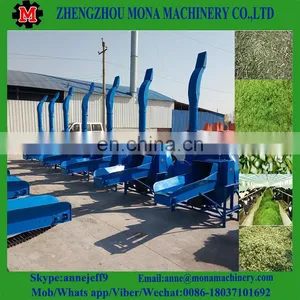

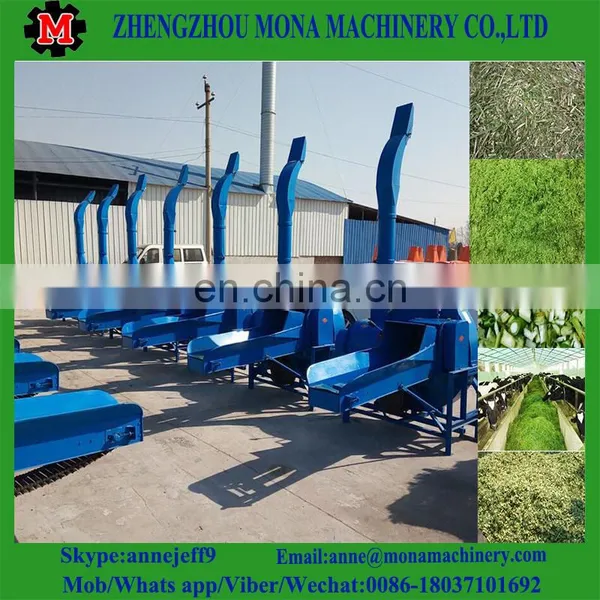

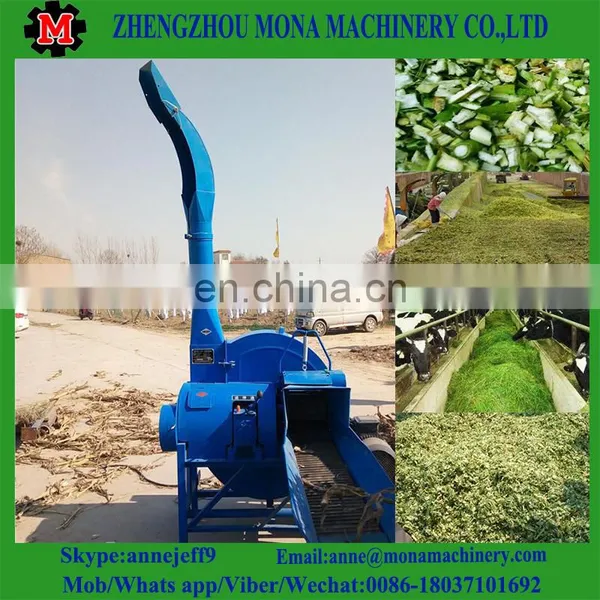

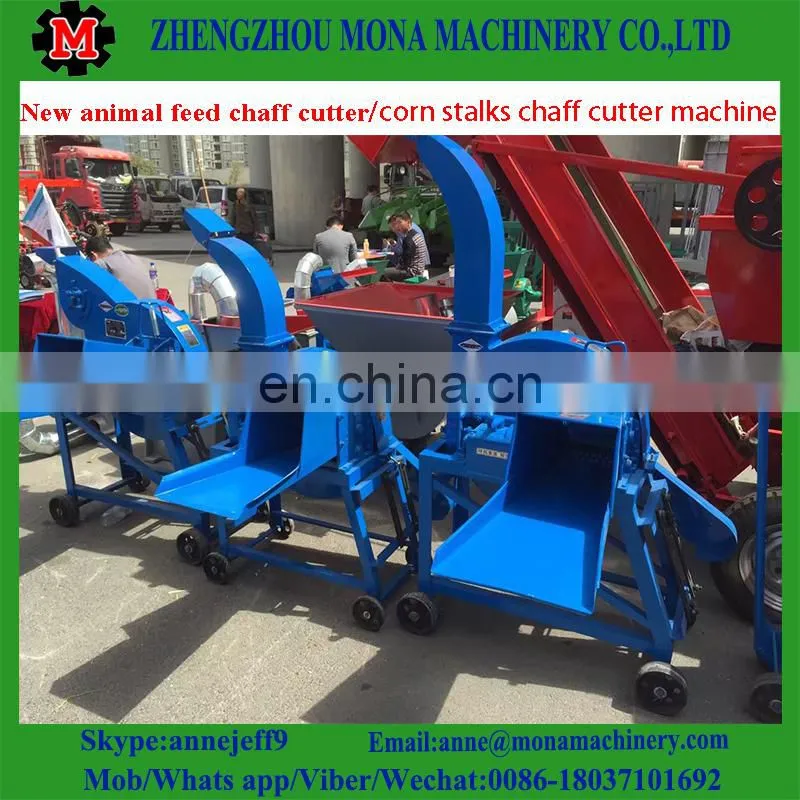

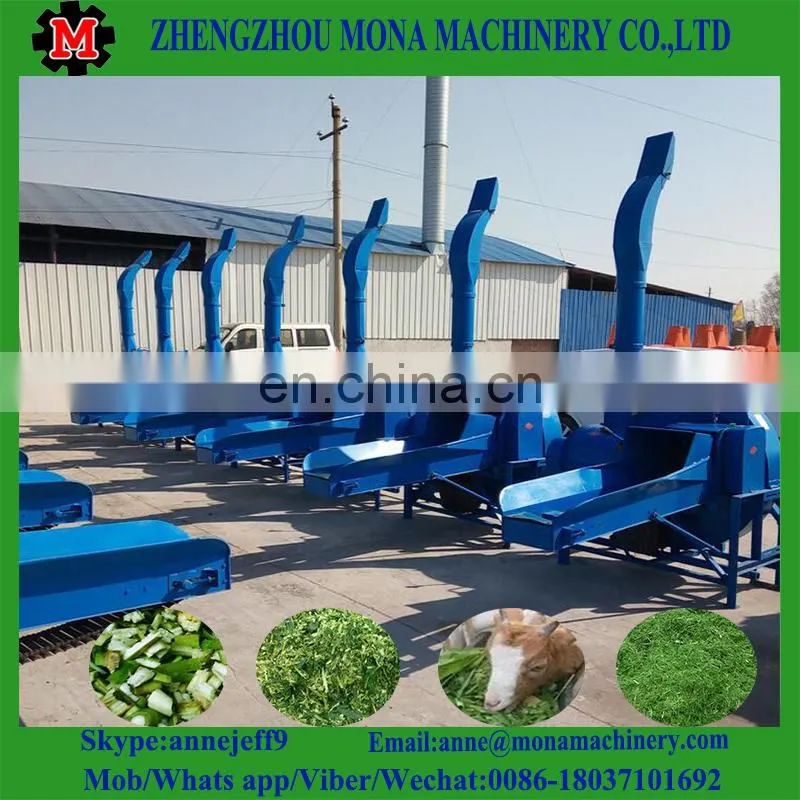

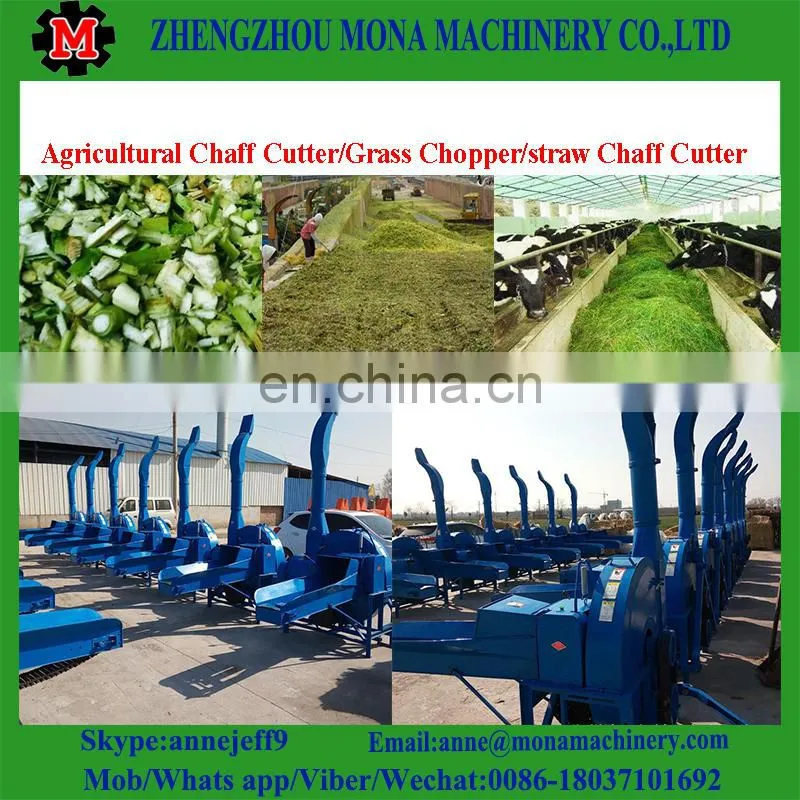

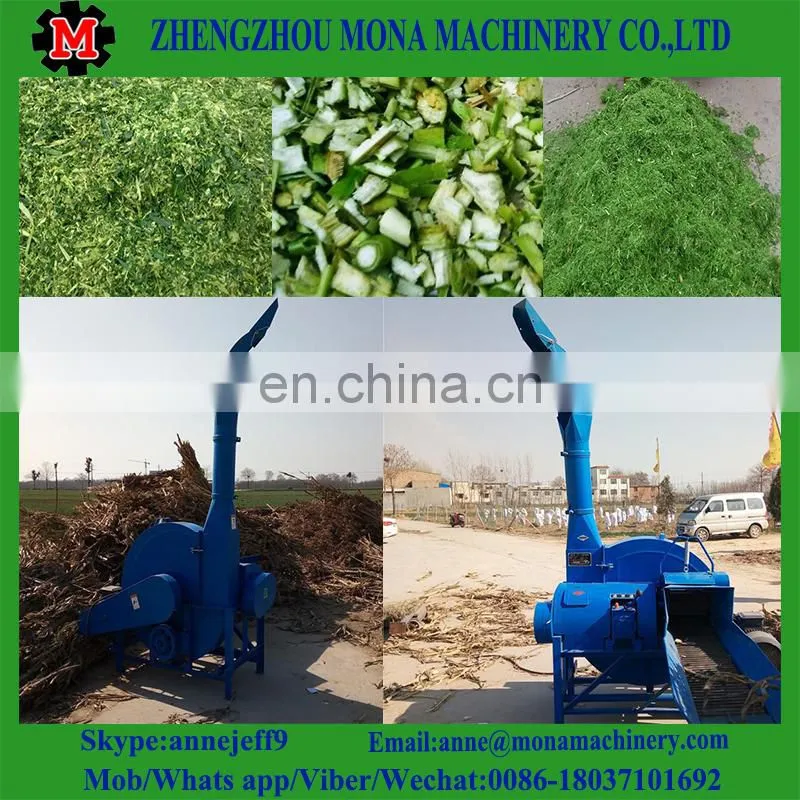

2.big capacity chaff cutter
Parameter for chaff cutter:
Model |
Power (kw) |
Weight(kg) |
Dimension(mm) |
Output(t/h) |
MNFZ-0.4 |
2.2KW |
60 |
550*450*600 |
0.4_1.0 |
MNFZ-1.0 |
3KW/4HP |
80 |
650*500*600 |
0.8-1.5 |
MNFZ-3.0 |
3 Phase 5.5KW |
160 |
1230*1150*1695 |
1-3 |
MNFZ-1.5 |
3KW/4HP |
115 |
820*460*1150 |
1-2 |
MNFZ-2.0 |
3KW/4HP |
125 |
920*500*1160 |
1.5-2.5 |
MNFZ-5.0 |
3 Phase 5.5KW |
350 |
2690*1210*2390 |
4.5-5.5 |
MNFZ-8.0 |
3 Phase 7.5kw |
480 |
3110*1500*2860 |
6-8 |
MNFZ-10.0 |
3 Phase 15kw |
1000 |
3510*1800*4210 |
8-10 |
MNFZ-12.0 |
3 Phase 18.5kw |
1285 |
3810*1900*4230 |
12-18 |
MNFZ-15.0 |
3 Phase 22kw |
1500 |
4100*1950*4350 |
15-20 |
MNFZ-20.0 |
3 Phase 30kw |
2000 |
4350*2050*4550 |
20-30 |
MNFZ-30.0 |
3 Phase 45kw |
3000 |
4850*2350*4550 |
25-38 |
