Best quality durable chopper meat bowl cutter

Name: Best quality durable chopper meat bowl cutter
Brand: BOSSIN
Price: USD $8,000 - 10,200 / Set

FOB Price

USD $8,000 - $10,200 / Set

1 Set(Min.Order)

Supply Ability 5 Unit / Units per Month
Port xingang or qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:

BOSSIN

Place of Origin:

Hebei, China

Model Number:

GZB80

Product Description

Best quality durable chopper meat bowl cutter

Product Description

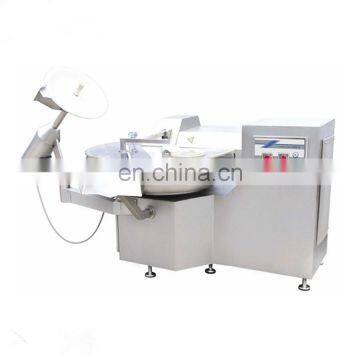

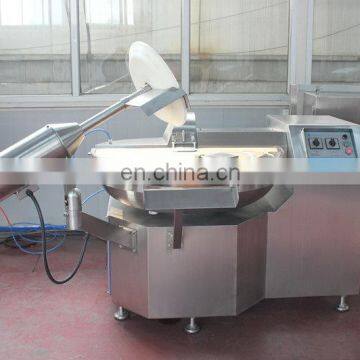

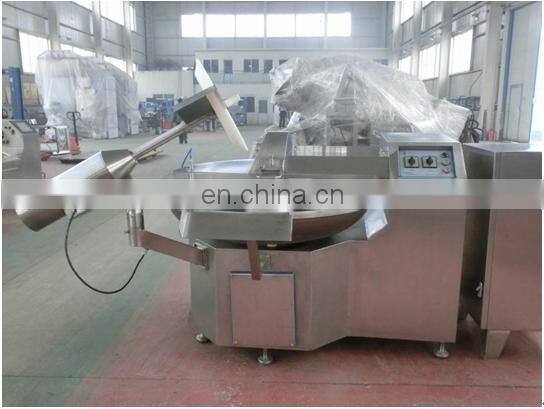

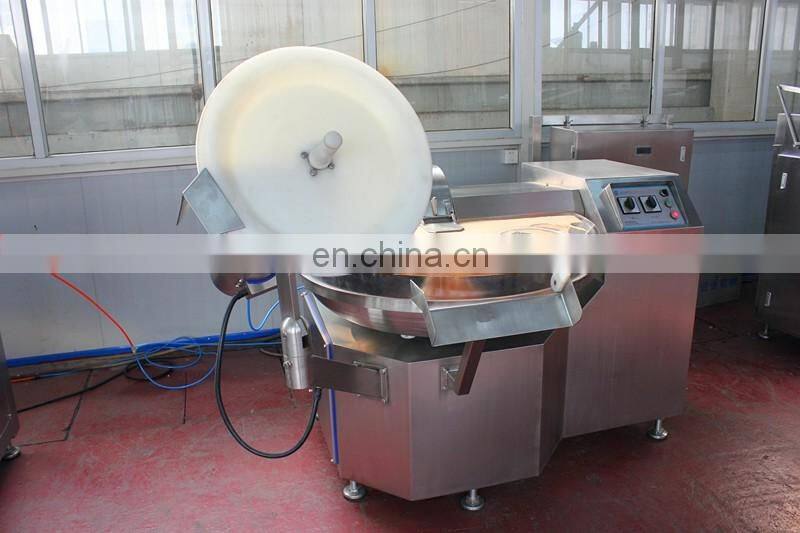

Pictures of chopper meat bowl cutter:

Application:

Processing of both fresh and frozen meat.

Processing of large chunks without pre-grinding.

Excellent cut and even granulation.

Processing of vegetables like ginger.

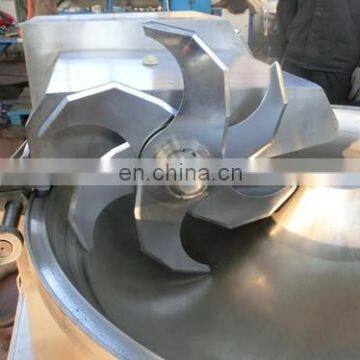

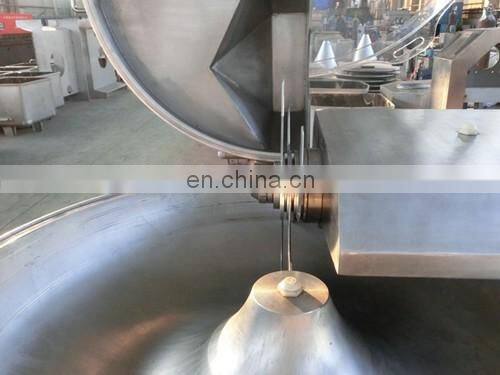

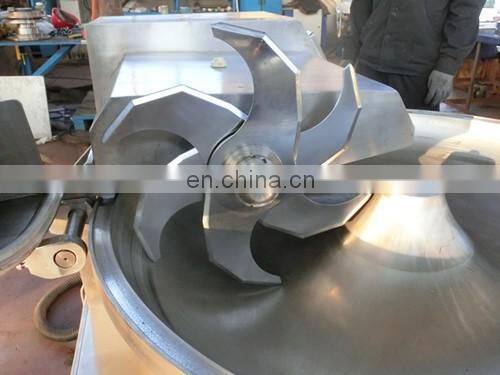

Knife:

Minimum distance between cutter bowl and knives. 1mm

Easy and quick knife-change.

Knife head easy and quick to install.

Knife balance, no vibration and imbalance.

6 knives totally.

Four Speeds: 4500/3000/1500/750rpm

Frequency converter

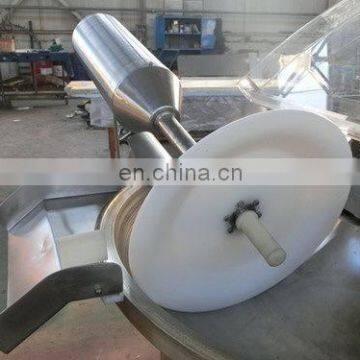

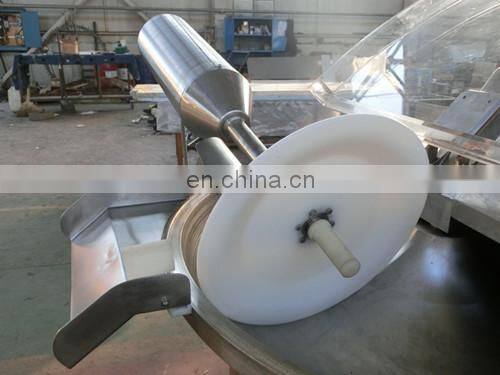

Sausage Meat Ejector

Quick unloading of bowl.

Speed: 80rpm

Material: Poly

Bowl

Volume:80L, 125L , deep type, large capacity

Polished surfaces for hygienic standards.

Speed: 8/12rpm

3°leaning, water can not stay in the bowl. Easy to clean it thoroughly.

Water-plug at the bowl bottom.

Control Panel

With function keys, located at right side of the machine.

Water-proof keys imported from German, IP degree 54.

With water-proof edge.

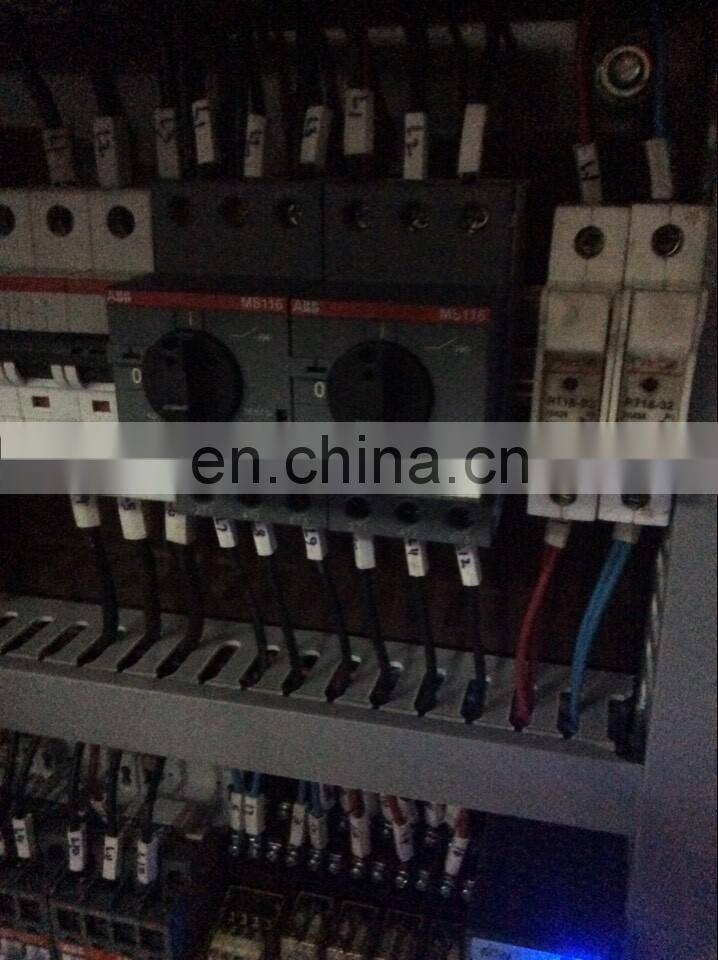

Use ABB electrical components

UNLOAD:

Feature of chopper meat bowl cutter :

1. Reasonable knife assemble makes the products in high degree of fineness, small heating. It is one of the most necessary machines in meat processing.

2. Material of the bowl is cast stainless steel, polish treatment. The Bowl is very smooth.

3. Imported SKF bearings , special sealing types which greatly guarantee endurance of bearings.

4. Powder feed-in hole, ingredients could be put into the bowl without open the cover when the machine is working.

5. Low Noise level, ≤85Db.

6. Machine feet adjustable.

Technical Data:

Type

Power

(kw)

Output Rotation Speed (rpm)

Bowl

Volume

(L)

Cutting Speed

(rpm)

Bowl Rotation Speed

(rpm)

Knife Numbers

(piece)

Capacity

(kg)

External

Dimension

(mm)

Weight

(kg)

GZB

125

4500/3000/1500/750

8/12

100

1800×1600×1200 mm

1600

GZB80

17.2

2100×1400×1550mm

1000

Packaging & Shipping

qqq

Our Services

1. Technicians will be sent if necessary, to install and adjust the machine perfectly. Besides,
train your workers for the correct usage and daily maintenance.

2. Any spare parts you need will be sent to you directly from us.

3. Anything wrong with the machine, we will reply within 8 hours. Technicians will be sent
to your working site if you can not solve it under our guidance.

Welcome to contact us and we are at your service 24 hours.
call me 0086-15830671682
skype: hellosunny168

Advantages

ALL ARE BASED ON ISO QUALITY MANAGEMENT SYSTEM AND WITH CE MARK

1.European technology ,adopt SUS304/316 stainless steel in compliance with HACCP standard, easy to be cleaned up.

2.PLC control ,CAD programmed control ,seting the data as different products.

3.Wholly welded machine body stable and low noises.

4.Adopted international advanced technology. Be changeable with imported cutters.

5.Auto protection design to make sure safe operation.

6.Little meat temperature change , benefit to preserve freshness.

7.Adopt good quality stainless steel ,knives are made of imported material,and imported knives can be another option . for the sasuaeg stuffer, our parts can exchangable with HAMDTMANN ,VEMAG etc brand. our GC6200 is toatally same with VF620 handtmann brand. the meat pump parts are the same with handtmann.

8.Key parts produced by advanced machine processing center(CNC lathe machine), ensure the precision of process.

9.Application include the processing of meat and also the processing of cheese ,vegetable , fruits, sweets and products of the chemical industry.

10.Parts:is built with INNOVANCE,EMERSON servo motor drive as drive system ,Mitsubish, BECHHOFF and ABB water-proof button etc imported famous brand.

Company Information

My factory is mainly manufacturing the Meat processing machinery, including all kinds of frozen meat flaker, meat mincer, meat mixer,meat bowl cutter,brine injector, vacuum meat tumbler, sausage stuffer/filler, sausage clipper, smokehouse, sausage cutter and Multi forming and coating machine in application of all kinds of fast food (hamburger, chicken nuggets, fish finger, onion ring etc.),also pasta machines. All of machines are based CE and ISO 9001 standard system. The products have been sold to overseas market such as Southeast Asia, Europe, Middle East and South America and we will go on to develop more markets through many ways. Our factory has abundant manufacturing and export experiences, so we will offer excellent quality of products and best service for all our clients sincerely.

Certifications

FAQ

1. Are you manufacturer?
Yes, we are professional manufacturer of meat machines with 11 years’ experience.

2.What about the product quality?
a) Each machine will be tested more than 24 hours totally.
b) Noise level tested 70~75db.
c)we use good 304 /316 Stainless steel
d) for the engine and electrci parts, we use imported brand.

3.What about the price?
We only offer the reasonable price instead of high price. Different quality and with different price.

4. Can you arrange the installation abroad?
Yes, we already exported to southeast, Germany, and Africa etc. And some of them installed by our technology team.

5. Can you accept special order?
Yes, we have R&D center with years’ experience for meat machine. Welcome to visit us. You will
get the best service and product.
We do believe our company will be best choice among the Chinese meat machinery company.
