The Mechanical Timer is suit for water heater, Water dispenser, Street lamp, Staircase lamp, Advertising lamp box, Breed aquatics, Irrigation, office power auto control, anywhere need time control in civilian, home or industrial, etc. It can set 8 programs to control ON or OFF of electric appliance in 24 hours or set 48 programs in one week. It can be programmed to avoid the peak of power, and distribute power in time limit to save energy. This timer is a kind of module for DIN guide rail, easy to installation in illumination box, and its so compact size with pretty form.. Its time base component is adopt synch pulse motor and it is strong anti-jamming, small consume with performance stability.

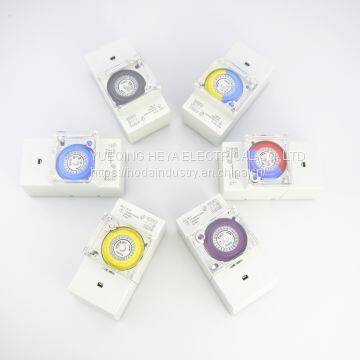

DIN Guide Rail Programmable Mechanical Timer
Features:
Working voltage: 100-240VAC common use
Allowed voltage range: 85-264VAC
Power supply frequency: 50Hz/60Hz common use
Drive way: Quartz motor type
Power cut compensation: Within 300Hrs (with nick-chrome battery inside)
Timer precision: Difference of month: Within15 min (temperature: 25C Active time precision: Within 7.5 min (excluding adjustment error at initial stage)
Period: 24Hrs
Electric-consumed: 110VAC 1W 220VAC 2W
Output: Circuit No.: One circuit
Circuit composing: Same circuit (with voltage terminal input)
Contact composing: Single pole single inlet
Auto open/ close: Attached with ON/OFF switch
*Contact capacity: Resistance: 15A
Incandescence: 15A
Resist (cosΦ=0.7): 12A
Motor (cosΦ=0.7): 110VAC 750W 220VAC 1500W
Time setting: Method: Fixed handle inserted, trip type
Min. Unit: 15min
Min. Interval: 30min
Action no.: Standard: 6, Max: 48
Applicable environmental temperature: -10C~+50C
Applicable environmental humidity: Below 85%
Weight: 240g
